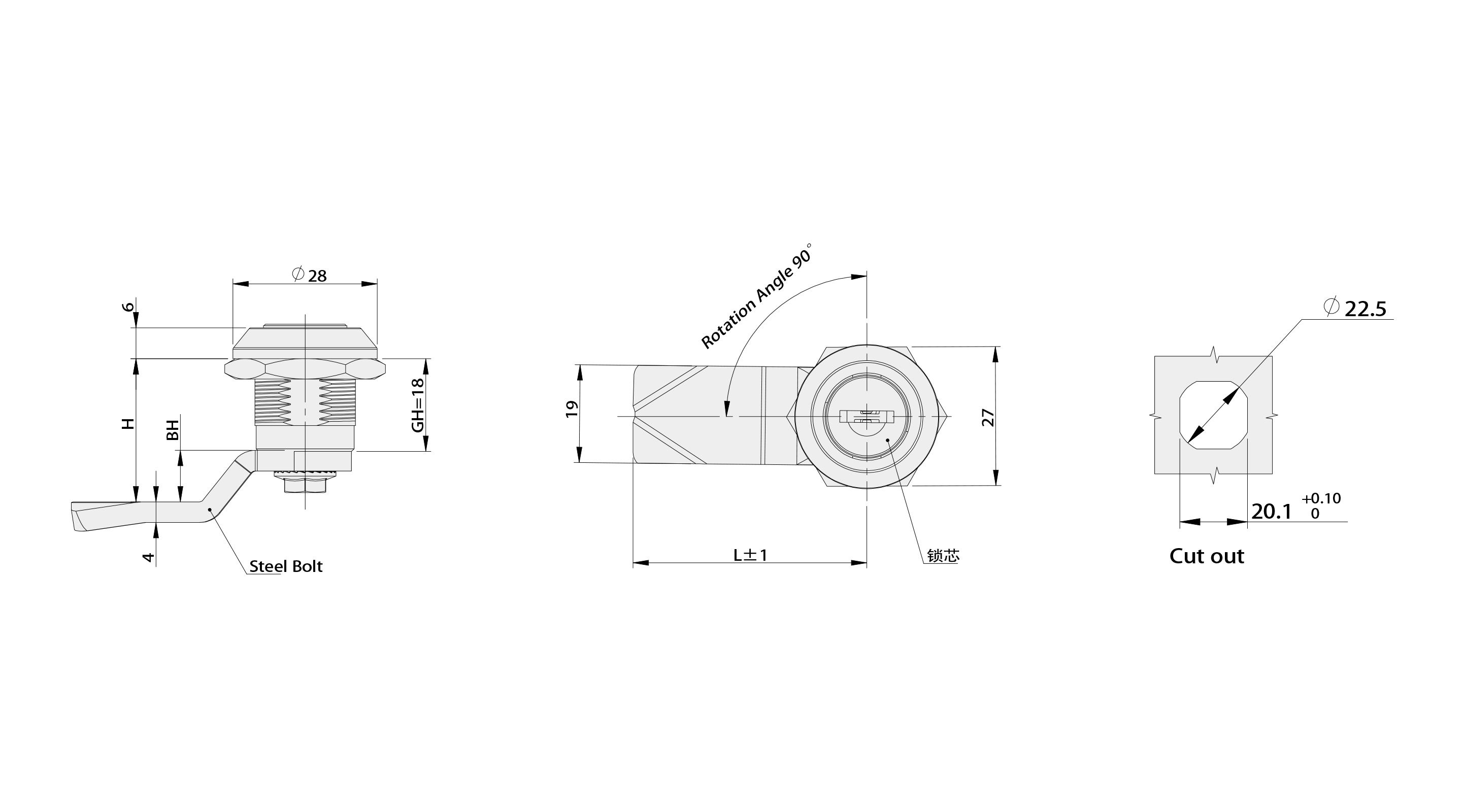

Structure: Rotates 90° to open/lock, supports left/right (RL) installation; steel bolt defaults to S1B4507 (□8x8 steel bolt optional); available in right - hand and left - hand rotation versions, default with K140 key.
Material: Zinc alloy (base, lock core), carbon steel (steel bolt).
Surface: Base white zinc plated, lock core black matte spray - coated.
Performance Parameters
| Maximum static load | 220N |
| Fixed nut recommended tightening torque | 20N.m |
| Colors | Lock core: black matte |
| Base: white zinc plated |
