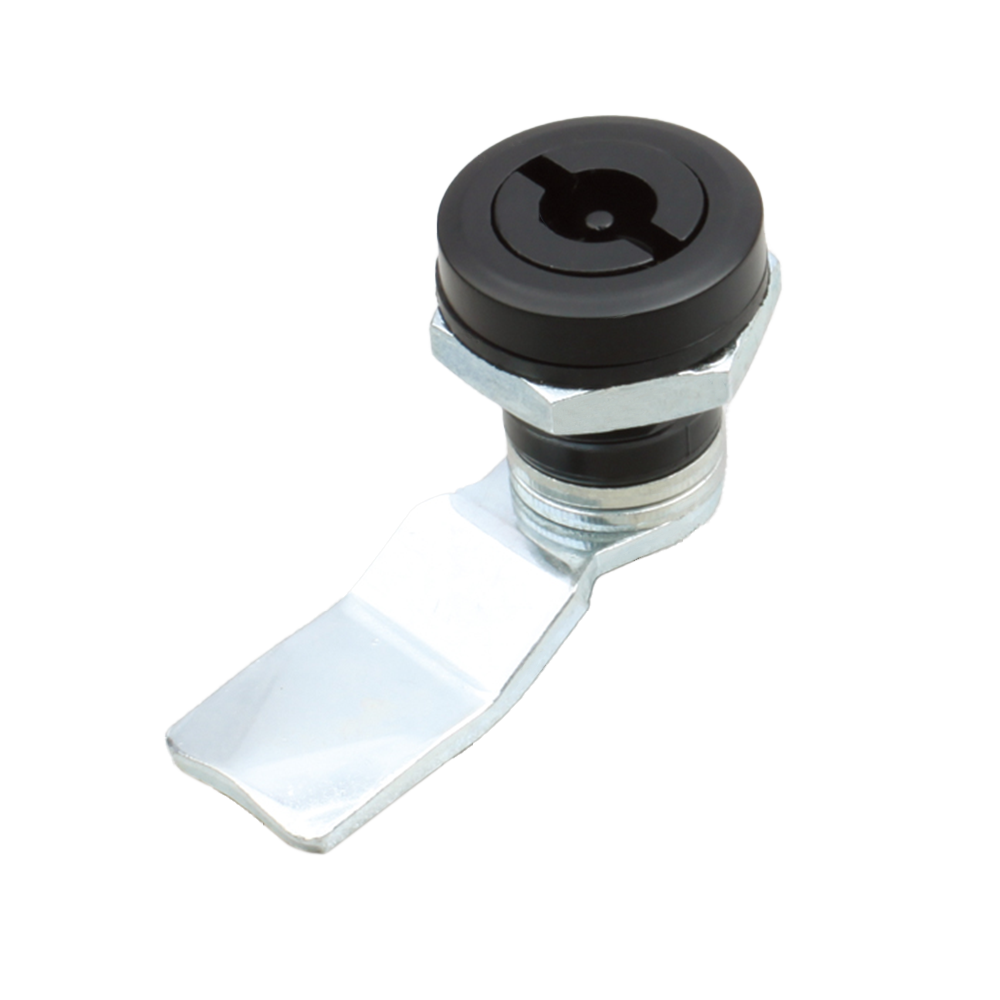

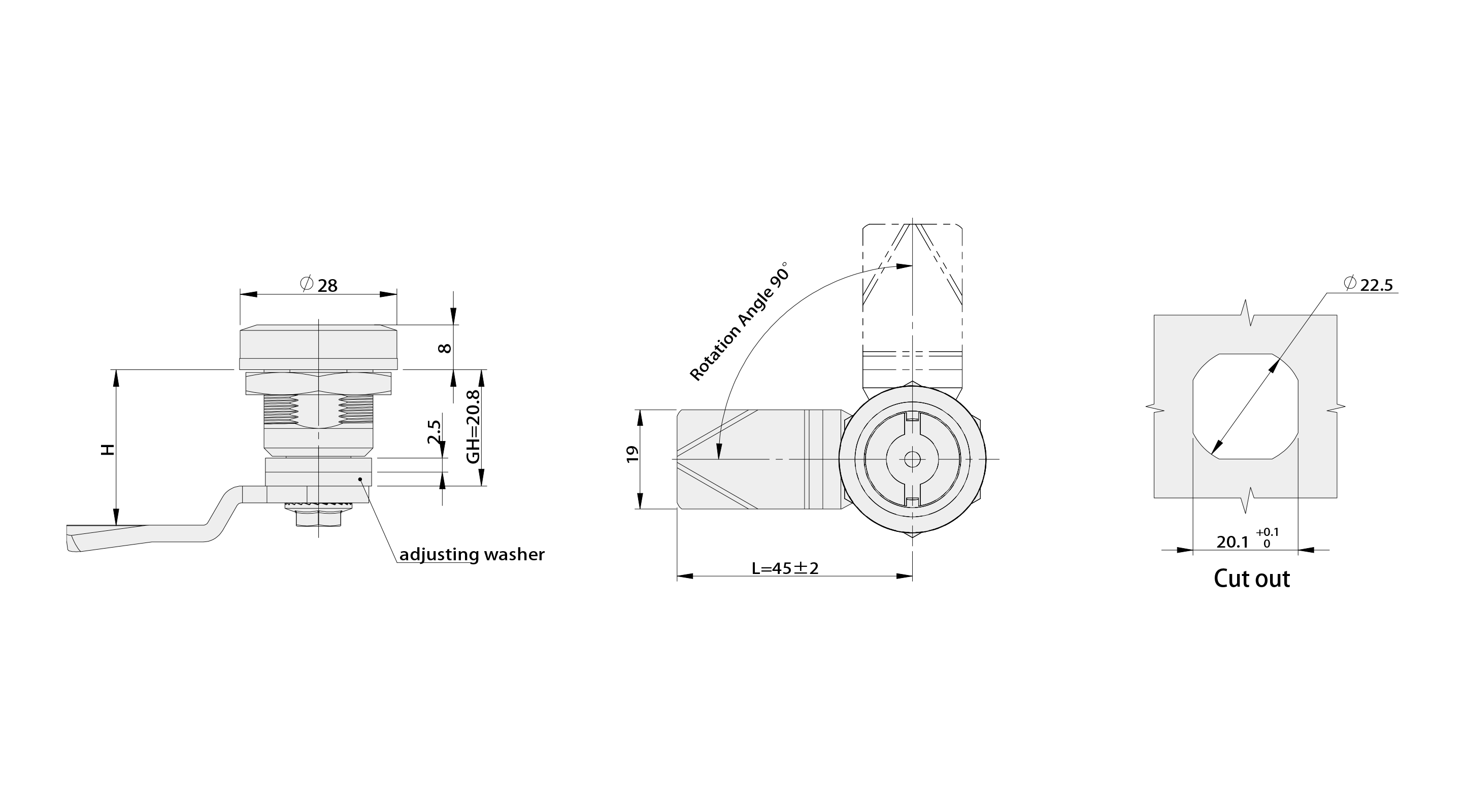

Structure: Rotates 90° to open/lock, IP54 protection, supports left/right (RL) installation; HP001 pull tab optional, steel bolt defaults to S1B45Y07002 (□8x8 steel bolt optional); compatible with K15 - 1A key.
Material: Zinc alloy (base, lock core), carbon steel (steel bolt).
Surface: Base and lock core painted black, steel bolt white zinc plated.
Performance Parameters
Maximum static load | 270N |
Maximum input torque | 9N.m |
Fixed nut recommended tightening torque | 20N.m |
Colors | Base & lock core: black |
Steel bolt: white zinc plated |
