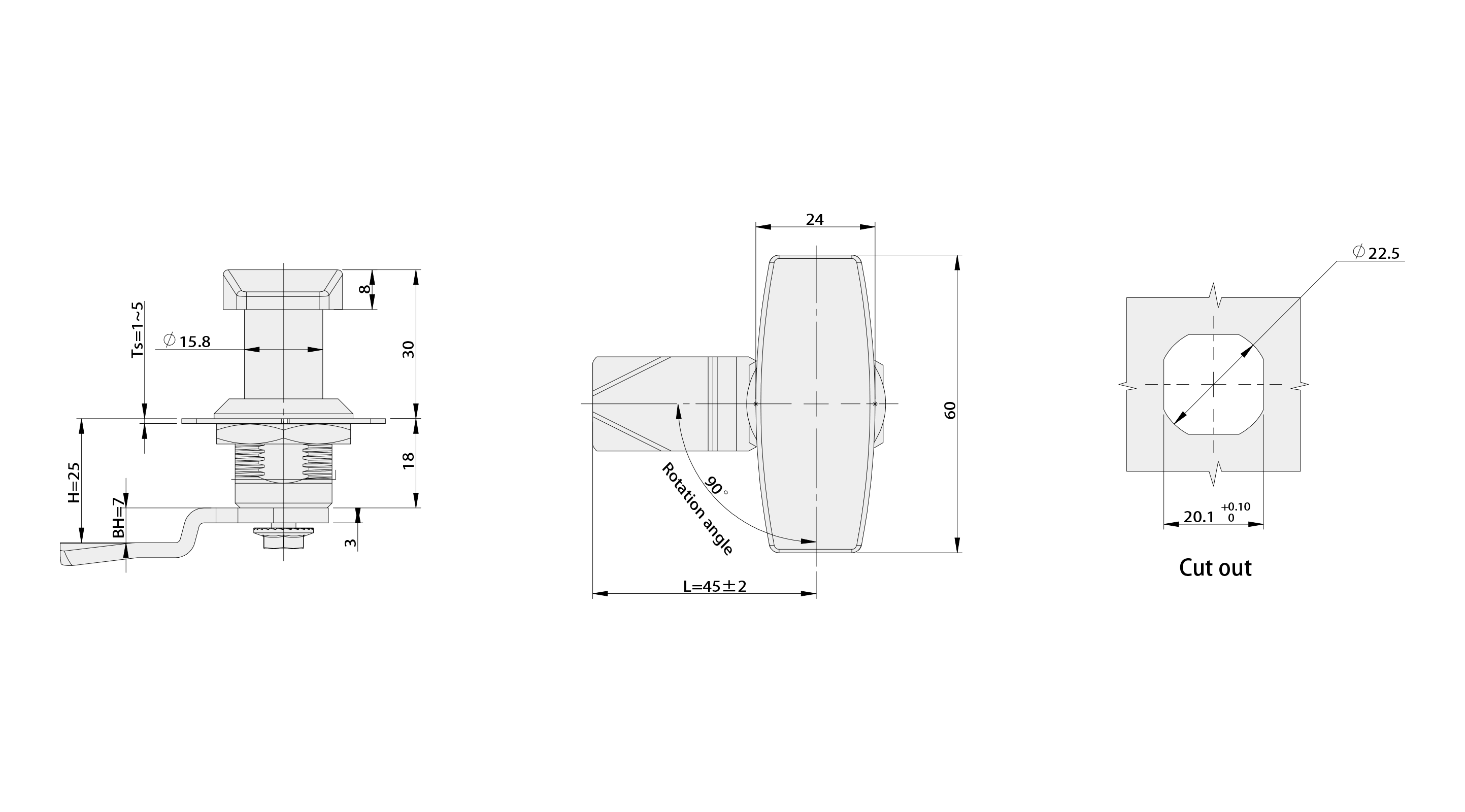

Structure: Handle rotates 90° to open/lock, IP54 protection, supports left/right (RL) installation; steel bolt defaults to S1B4507 (□8x8 steel bolt optional); base is zinc alloy (black matte spray coating) or PA material, with specifications like GH=18/28/36/62.
Material: Zinc alloy/PA (base), carbon steel (steel bolt).
Surface: Steel bolt with white zinc plating; zinc alloy base and handle with black matte spray coating.
Performance Parameters
Maximum static load | 220N |
Maximum input torque | 15N.m |
Fixed nut recommended tightening torque | 20N.m |
Colors | Zinc alloy base & handle: black matte |
Steel bolt: white zinc plated |
