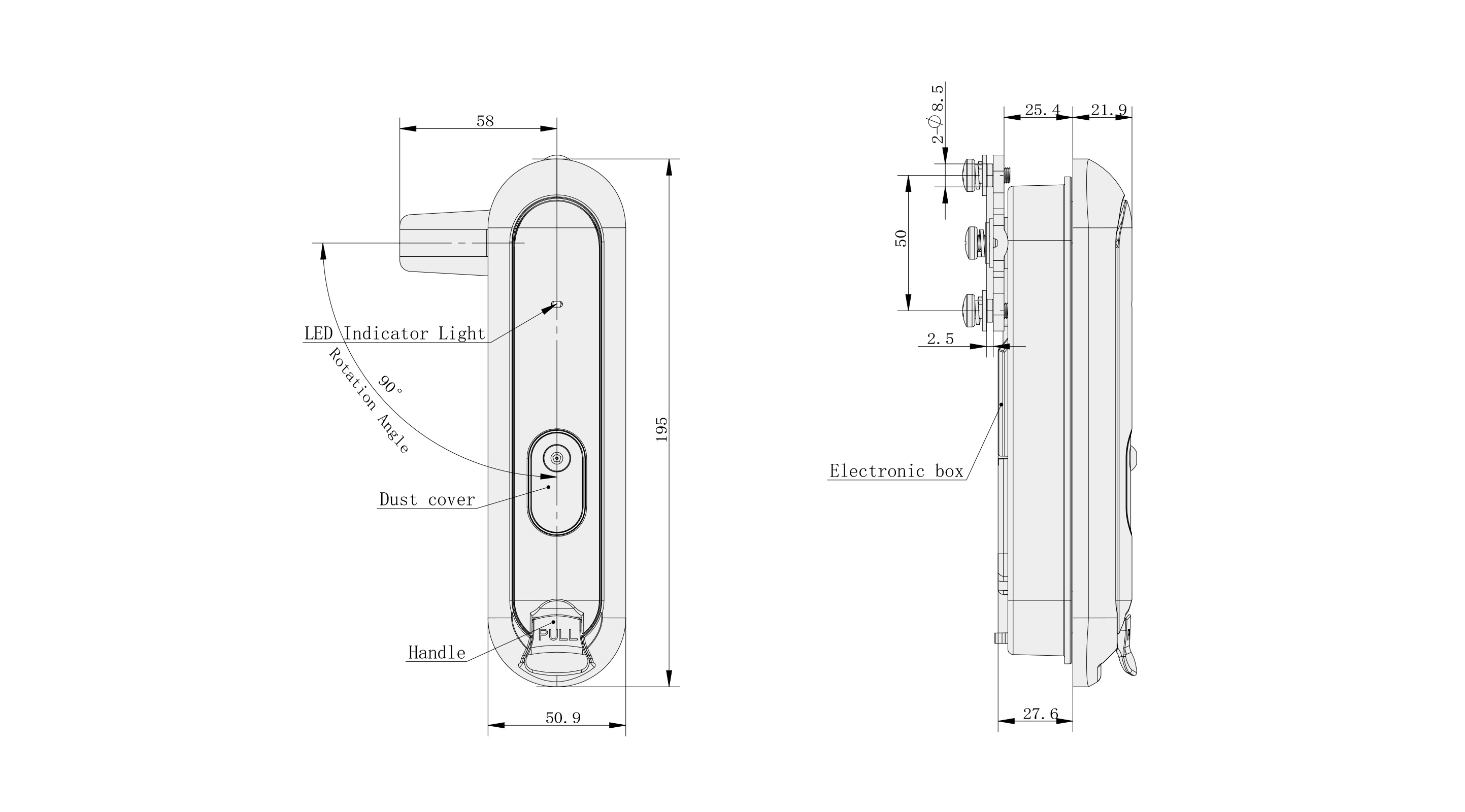

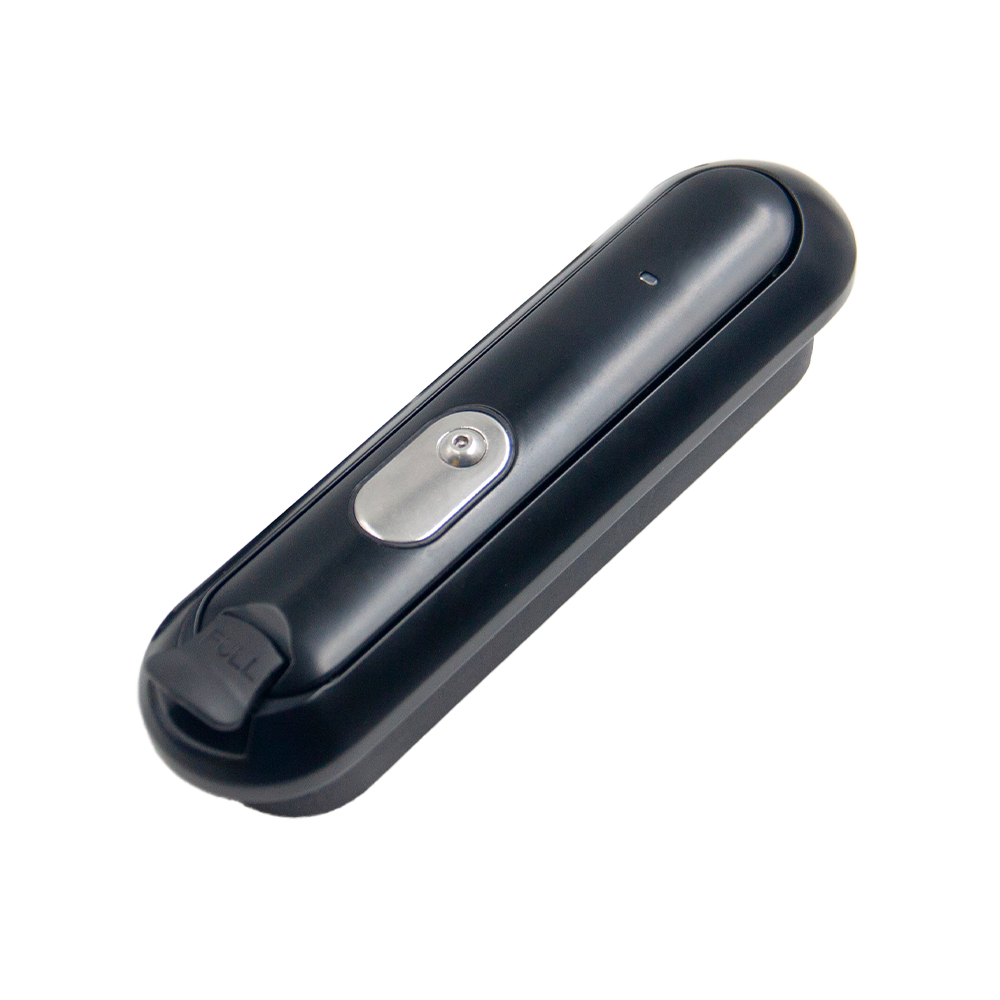

DS864-8-8A

Unlocking Methods：Remote UnlockingEmergency Unlocking (Mechanical Key)

Main Materials：Handle: Zinc AlloyLock Body: Zinc AlloyLock Bolt: SUS304

Technical Parameters：Working Voltage: DC12VWorking Current: ≤0.3AOperating Temperature: -40~65℃Protection Class: IP65

Interface Definition：Type: Loose Wire Red Wire: VCC Black Wire: GND Gray Wire: Mechanical Key Control Wire 12V Brown Wire: Mechanical Key Control Wire GNDBlue Wire: Remote Unlock SignalGreen Wire: Remote Open SignalWhite Wire: Switch Status Output Signal WireYellow Wire: Switch Status Output Signal Wire

Notes：The remote key's power-on time should not exceed 25 seconds.The mechanical key can only be used to unlock when the lock cylinder is powered off under control.
