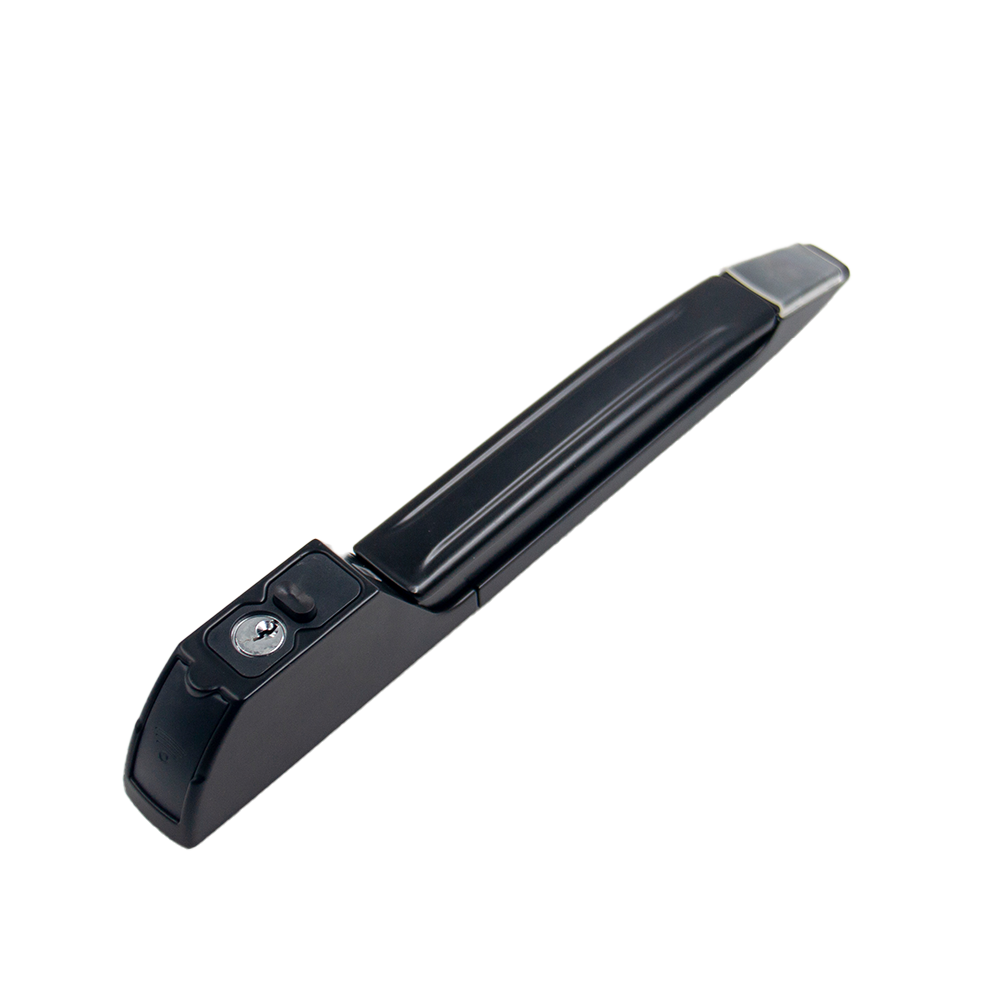

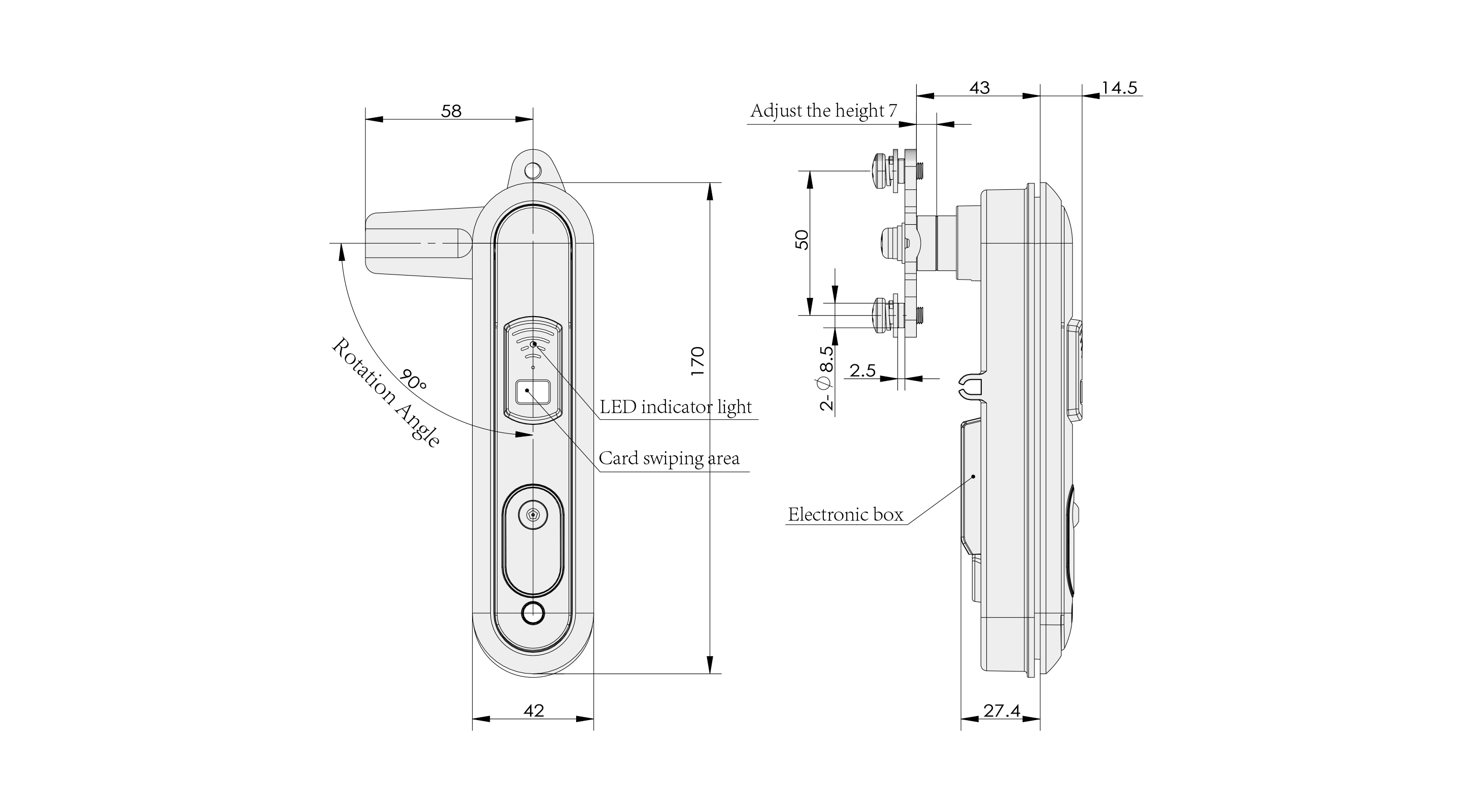

DS899-1A Card swiping lock

Unlocking Methods：Card Unlocking (IC Card), 485 UnlockingEmergency Unlocking (Mechanical Key, Electronic Key)

Main Materials：Base: Zinc AlloyHandle: Zinc AlloyLock Bolt: SUS304

Technical Parameters：Working Voltage: DC12V Working Current: ≤0.3A Operating Temperature: -40~65℃ Protection Class: IP65

Interface Definition：Type: RJ45 ConnectorWire 1 (Red): VCCWire 2 (Black): GNDWire 5 (Yellow): 485-Wire 6 (White): 485+

Notes：The operating frequency of the IC card is 13.56MHz, complying with the ISO 14443 TYPE-A standard
