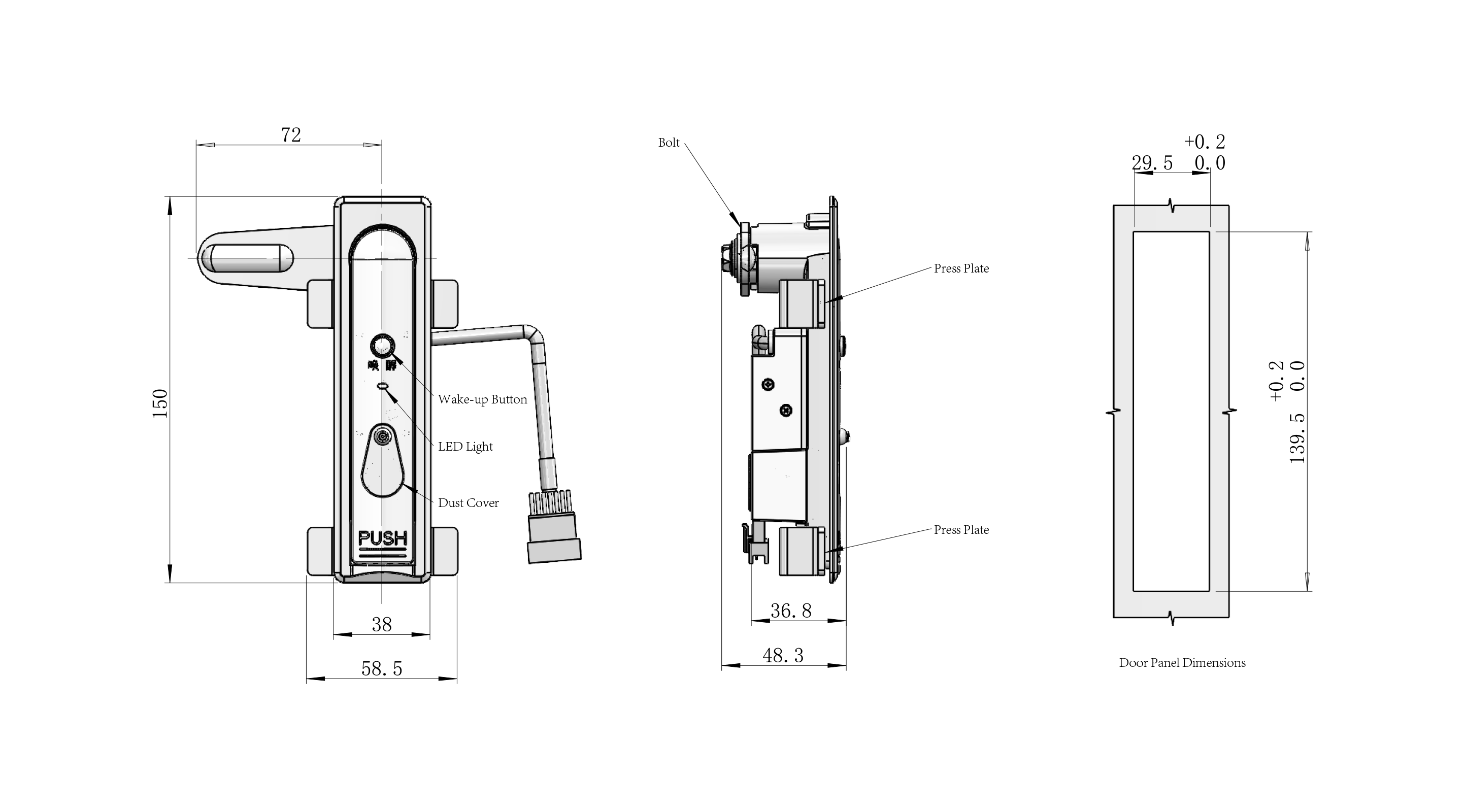

DS712-D

Unlocking Method: Remote unlocking, emergency unlocking (mechanical key)

Main Materials: Base, handle: Zinc alloy; Bolt, pressing plate: Q235

Interface Definition: Type: SM-7P; Yellow wire: Remote unlocking +; White wire: Remote unlocking -; Red wire: +5V (LED light); Gray wire: Wake-up signal output; Orange wire: Handle signal output; Black wire: GND

Description: After the wake-up button is pressed, it outputs to the controller, and the controller supplies power to the lock for unlocking
