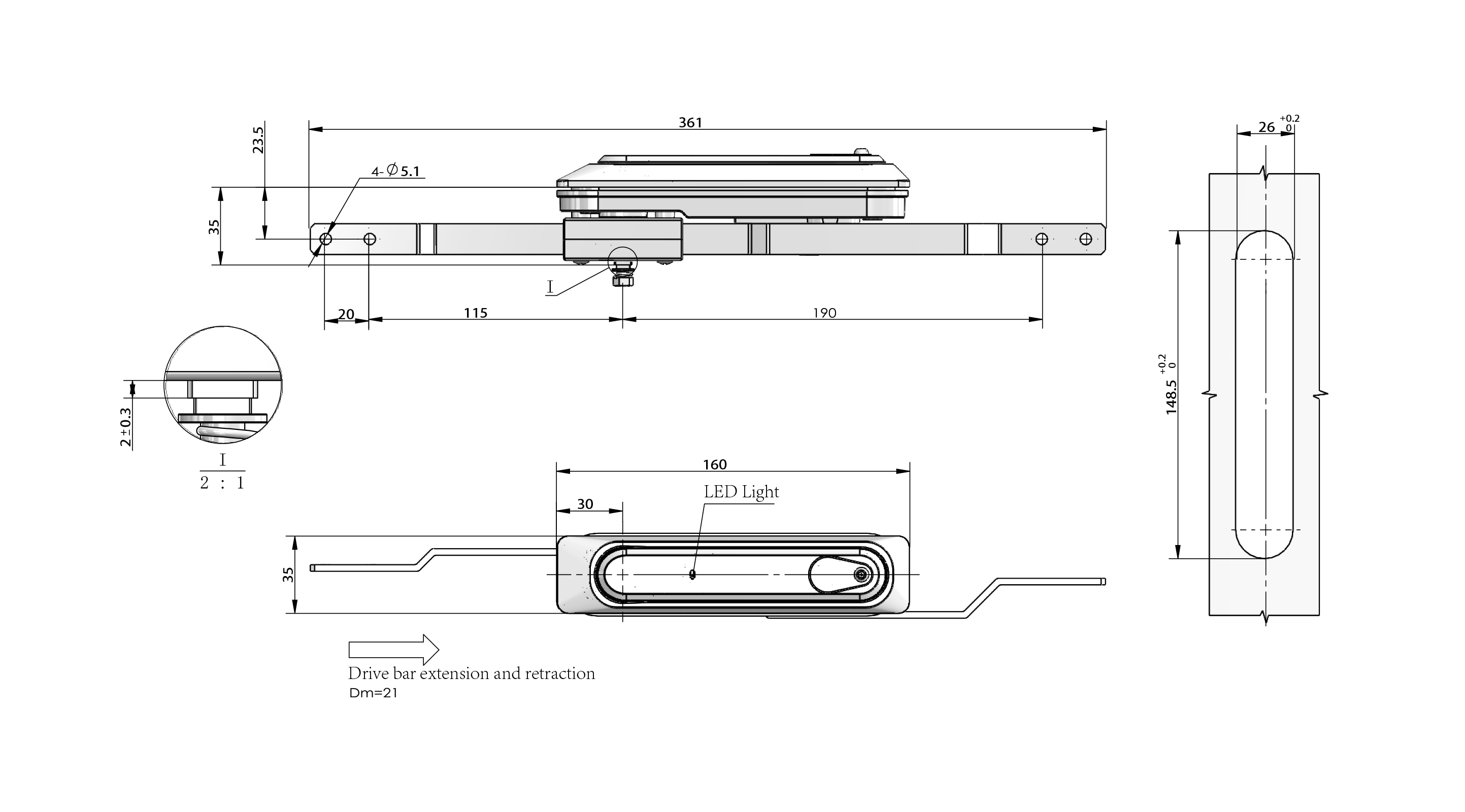

DS834-6

Product description

Unlocking Method: 485 Unlocking/Power-on Unlocking, Emergency Unlocking (Electronic Key & Mechanical Key)
Main Materials: Base: Zinc Alloy; Handle: Zinc Alloy; Connecting Rod: SUS304
Technical Parameters: Working Voltage: DC12V±1V; Working Current: ≤0.3A; Working Temperature: -20~65℃; Protection Grade: IP65
Interface Definition: Type: PH2.54 (Male End); Red Wire: VCC; Black Wire: GND; White Wire: 485+; Yellow Wire: 485-; Gray Wire: Interrupt Signal
Description: 1. After receiving the unlocking command for 20 seconds, the solenoid valve power supply will be cut off automatically; 2. It is impossible to unlock again within 20 seconds after unlocking ends

Technical Parameters

Technical Parameter Item
485 Unlocking, Electronic Lock Cylinder (Shengjiu Standard Protocol)	DS834-6
24V Power-on Unlocking, Mechanical Lock Cylinder	DS834-6-A
12V Power-on Unlocking, Mechanical Lock Cylinder	DS834-6-1A
