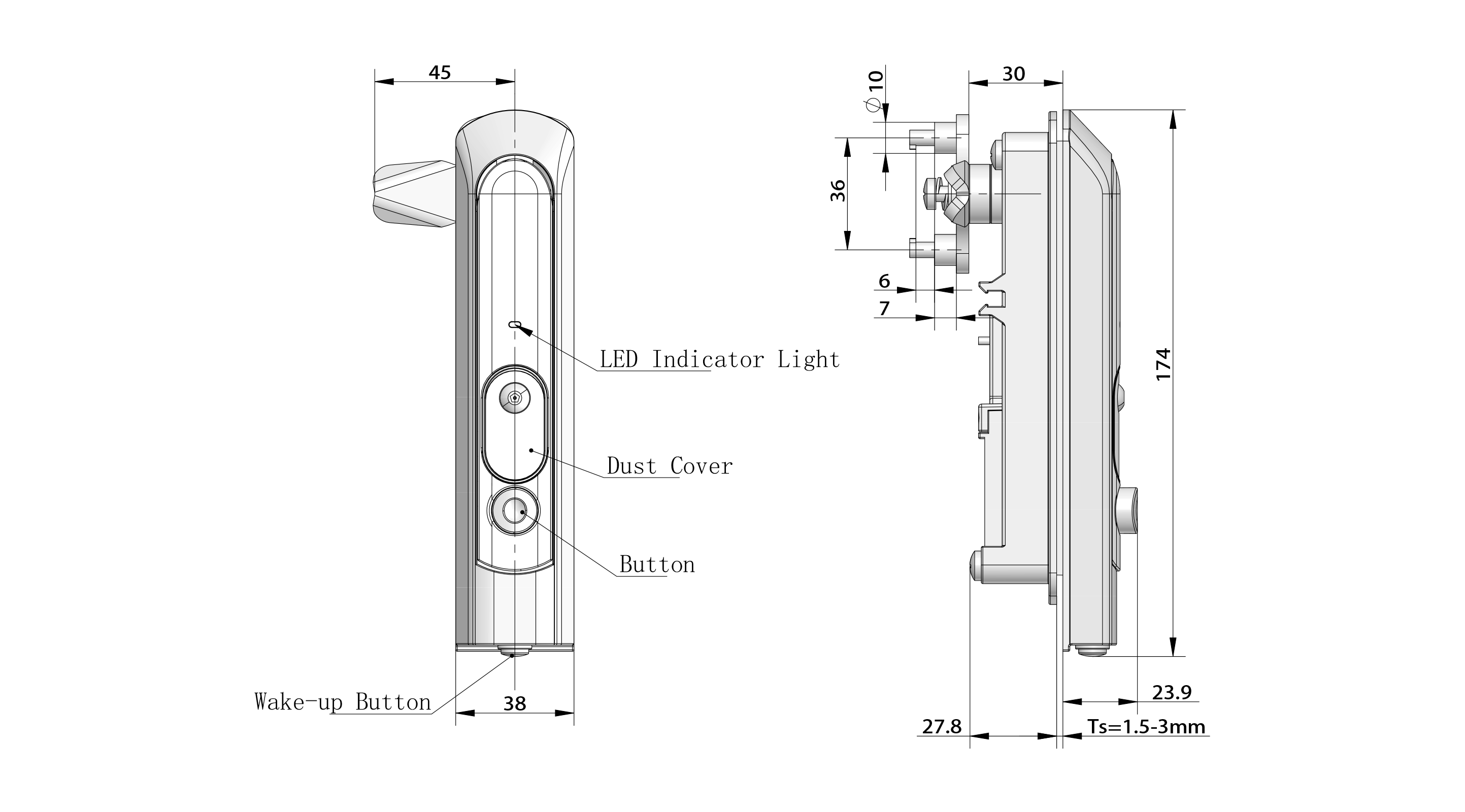

DS712-9B

Unlocking Method: Power-on unlocking, emergency unlocking (electronic key & mechanical key)

Main Materials: Base: Zinc alloy; Handle: Zinc alloy; Bolt: Stainless steel

Technical Parameters: Working Voltage: DC4~5.5V; Working Current: ≤0.2A; Power-on Time: <15S; Working Temperature: -20~65℃; Protection Grade: IP55 (front side)

Interface Definition: Red wire: VCC; Blue wire: Buzzer control; Black wire: Wake-up; Orange wire: LED control; Green wire: Handle signal; Yellow wire: GND; Gray wire: Empty; White wire: Empty

Description: 1. When the handle is opened, the gray wire and orange wire are connected; when the handle is closed, the gray wire and orange wire are disconnected. 2. Change the stop height by adjusting the number of gaskets.
