Product Features

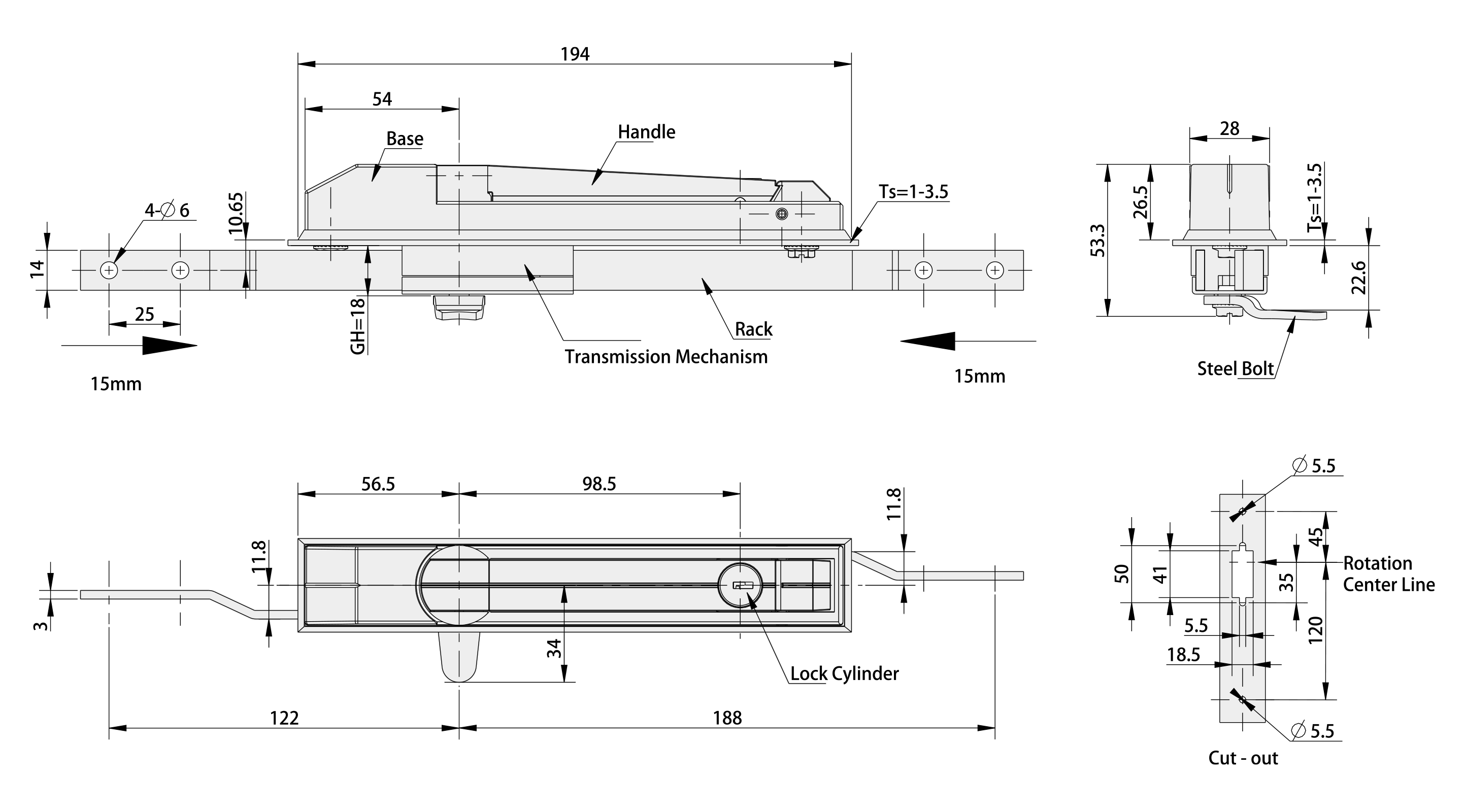

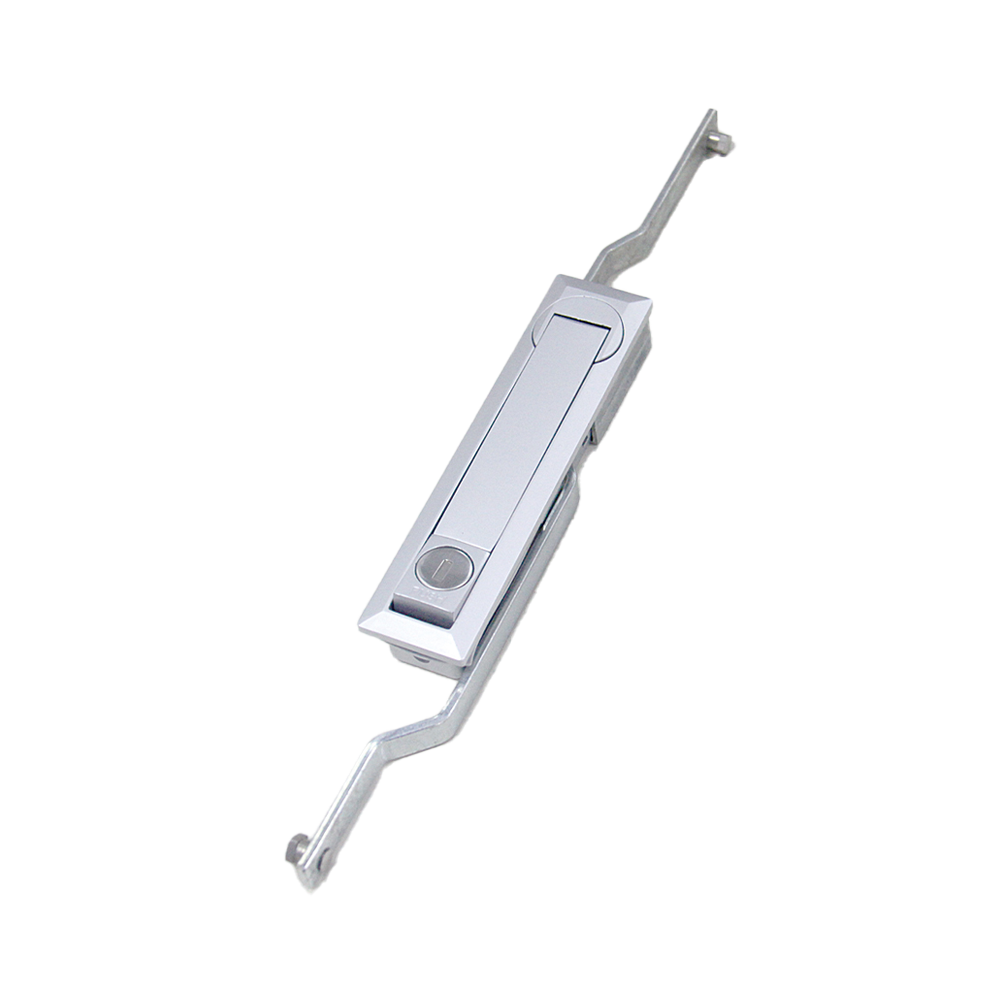

Structure: Rotate handle to open/close; adjust transmission bar/steel bolt to switch left/right (RL) opening; lock tongue installed externally.
Material: Zinc alloy (base/handle/button), carbon steel (steel bolt/transmission bar); base with spray - painted gray finish, components with bright chrome plating/white zinc plating.
Protection: IP40, compatible with K060 key.
Performance Parameters
| Handle tension | ≤240N |
| Handle torque | ≤20N.m |
Optional Colors
Base: Spray - painted gray;
Components: Bright chrome plating, white zinc plating (no multi - color options)
