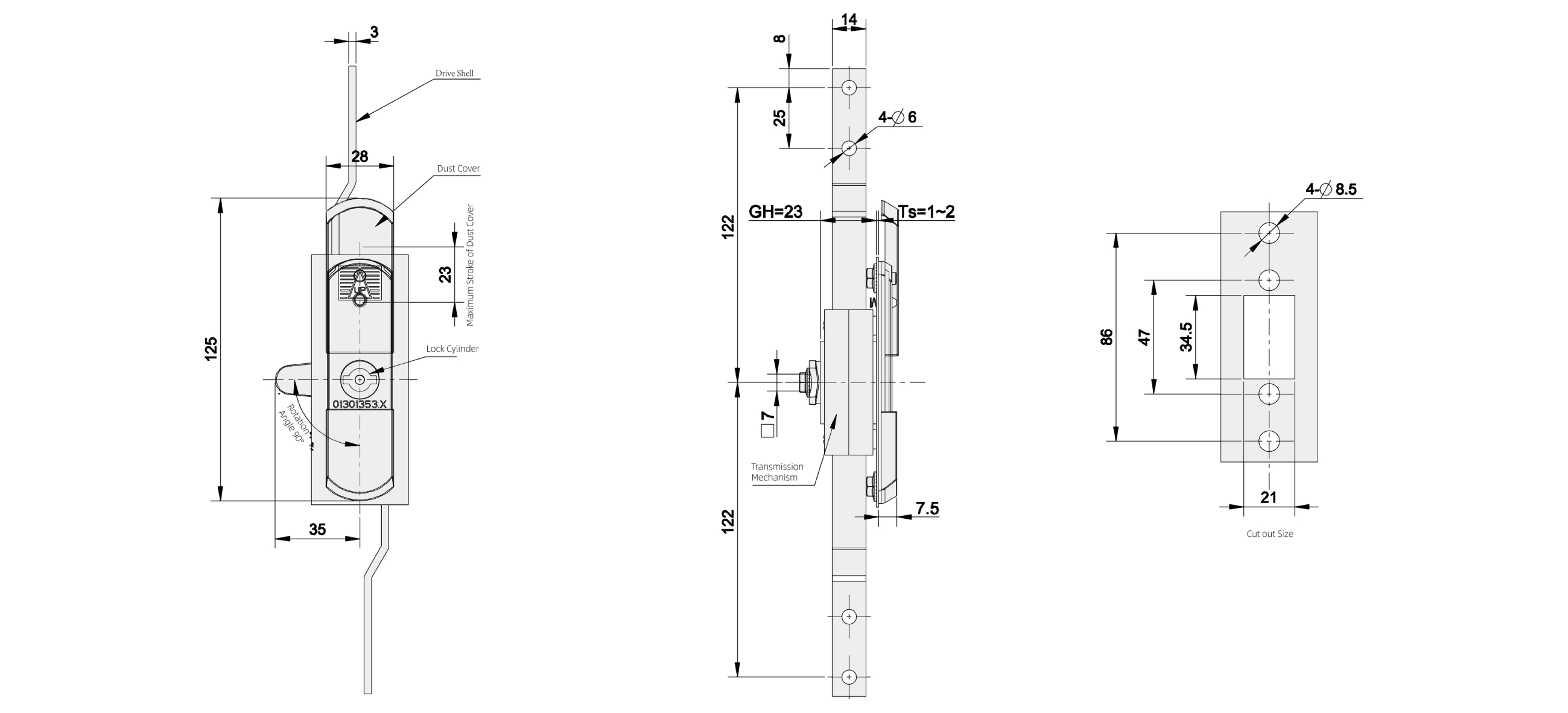

MS820

Structural Operation

• 90° rotation enables opening and closing; you can adjust the relative position of transmission components and flip the transmission body 180° to switch the left and right opening directions.

Material & Surface

• Zinc alloy is used for the panel, dust cover, and lock cylinder; carbon steel for bolts and transmission bars; zinc alloy for lock bolts and transmission housing components.

• The panel and other parts undergo nano-matte treatment, and the lock bolts are finished with white zinc plating, ensuring corrosion resistance and durability.

Protection & Compatibility

• IP40 protection.

• Compatible with K15-1 keys, supports left-right (R/L) installation.
