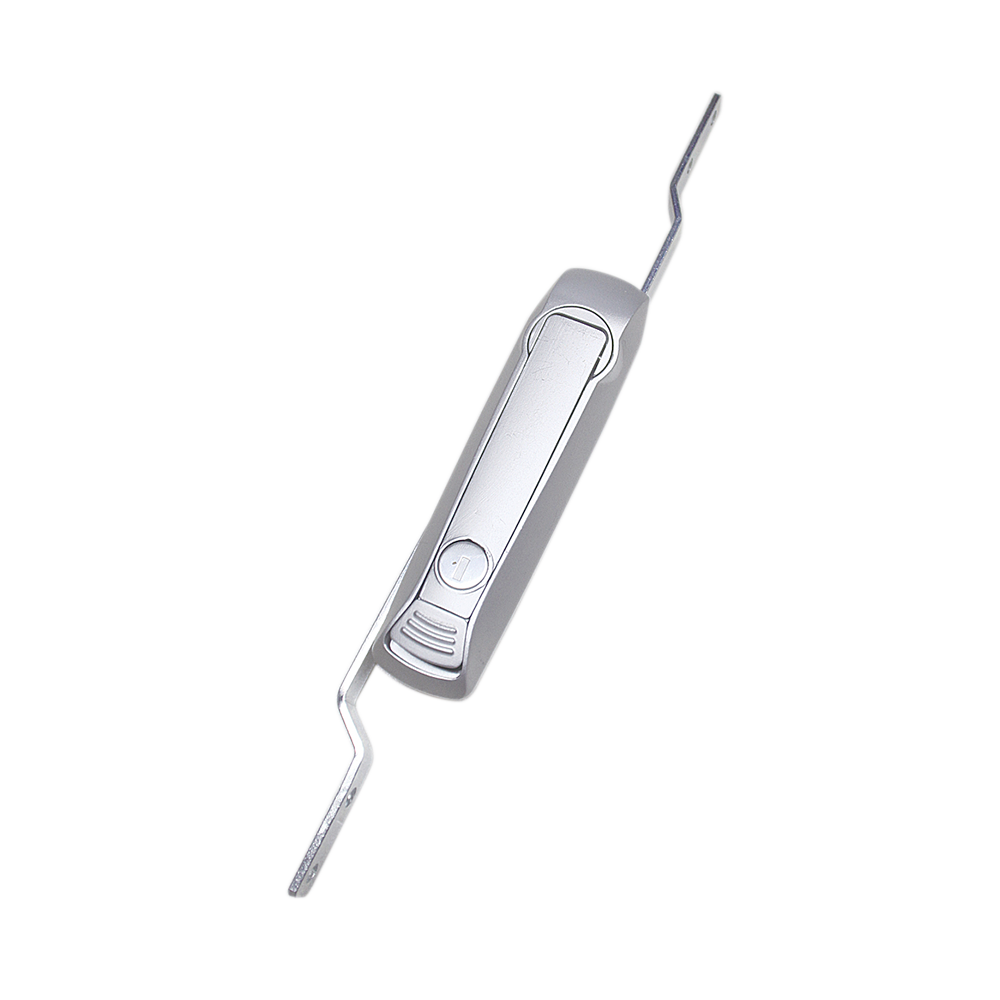

Structure: Rotate handle to open/close; optional with/without button, compatible with M9/D6015 transmission mechanisms.
Material: Zinc alloy (base/handle/dust cover), carbon steel (steel bolt/transmission bar); steel bolt has "equipment type" and "steel bolt type".
Surface: Base/handle/button with black matte finish, steel bolt with white zinc plating.
Protection: IP54, default with K040 key.
Performance Parameters
| Handle tension | ≤280N |
| Handle torque | ≤30N.m |
| Maximum static load | 270N(steel bolt type) |
Optional Configurations
| With button (matched with M9 transmission) | MS831-1, MS831-2 |
| Without button (matched with D6015 transmission) | MS819-1, MS819-2 |
