MS840

Product description

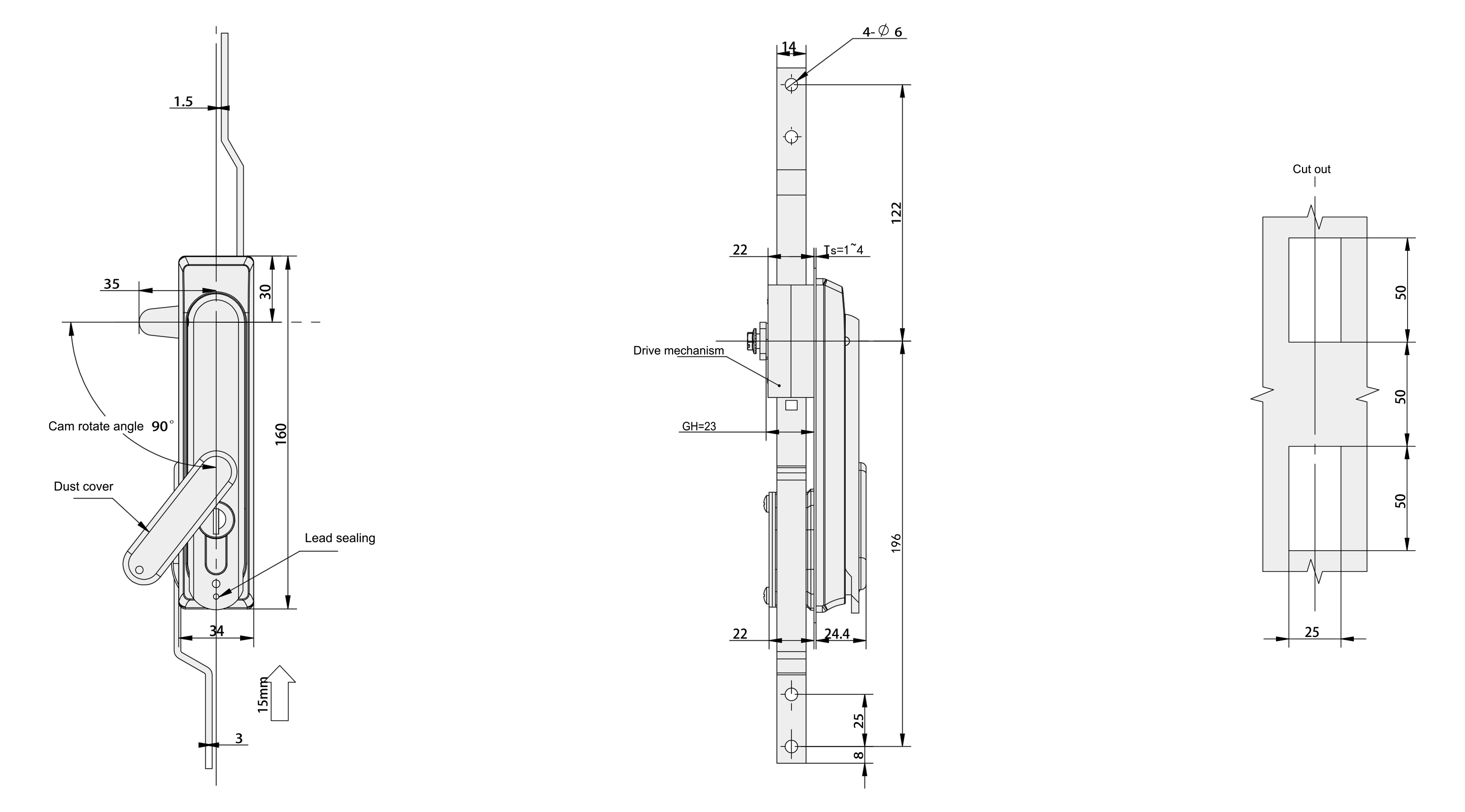

Structure: Rotate handle to open/close; optional with Mb01/Mb02 transmission mechanism, padlock device, steel bolt linkage.

Material: Zinc alloy (base/handle/lock head assembly, default), carbon steel (steel bolt/transmission bar); plastic base optional.

Surface: Base/handle with black matte spray coating, steel bolt/transmission bar with white zinc plating.

Adaptation: Default K140 key.

Technical Parameters

Performance Parameters

Handle tension	≤400N
Handle torque	≤35N.m
Maximum static load	270N (steel bolt type)
Color	Base/handle with black matte spray coating
Available with plastic base and zinc alloy base; zinc alloy base is default.

Models

With Mb01 transmission	MS840-1
With Mb01 transmission + padlock	MS840-1P
With Mb02 transmission	MS840-1-2
With Mb02 transmission + padlock	MS840-1-2P
Steel bolt linkage	MS840-2
Steel bolt linkage + padlock	MS840-2P
