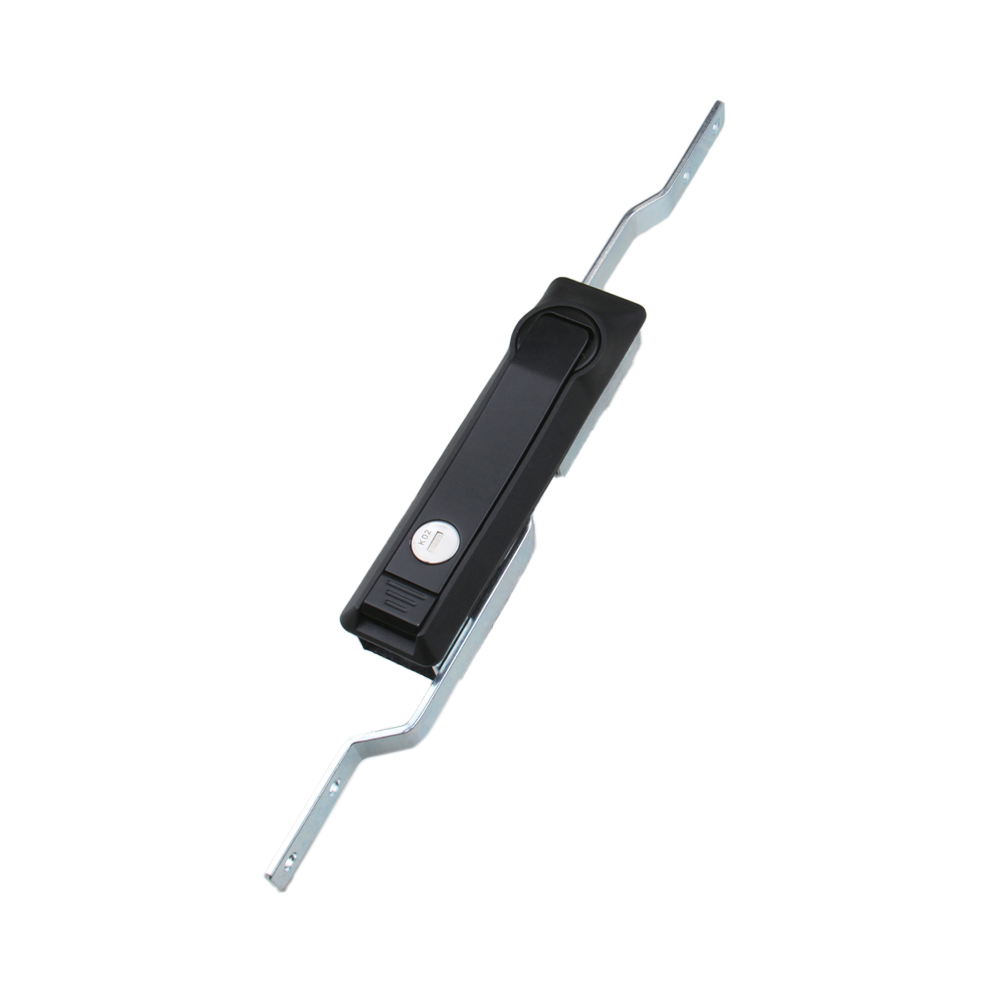

Structure: Base with metal inserts; handle, etc. rotate 90° to open/close; optional with/without padlock.
Material: Zinc alloy (base inserts, handle/spindle/button); steel (transmission bar: nickel - black zinc plated; moving shell/transmission bar assembly: white zinc plated).
Protection: IP54, default with K020 key.
Performance Parameters
Handle load tension | ≤340N |
Handle load torque | ≤28N.m |
Optional Configurations
With padlock | MS828-1F | MS828N00100001 |
Without padlock | MS828-1F-1P | MS828N00200002 |
