Material: Base, Lock Core, Nut: Zinc Alloy; Lock Plunger: Carbon Steel
Surface Treatment: Base, Lock Core: Black; Lock Plunger: Black

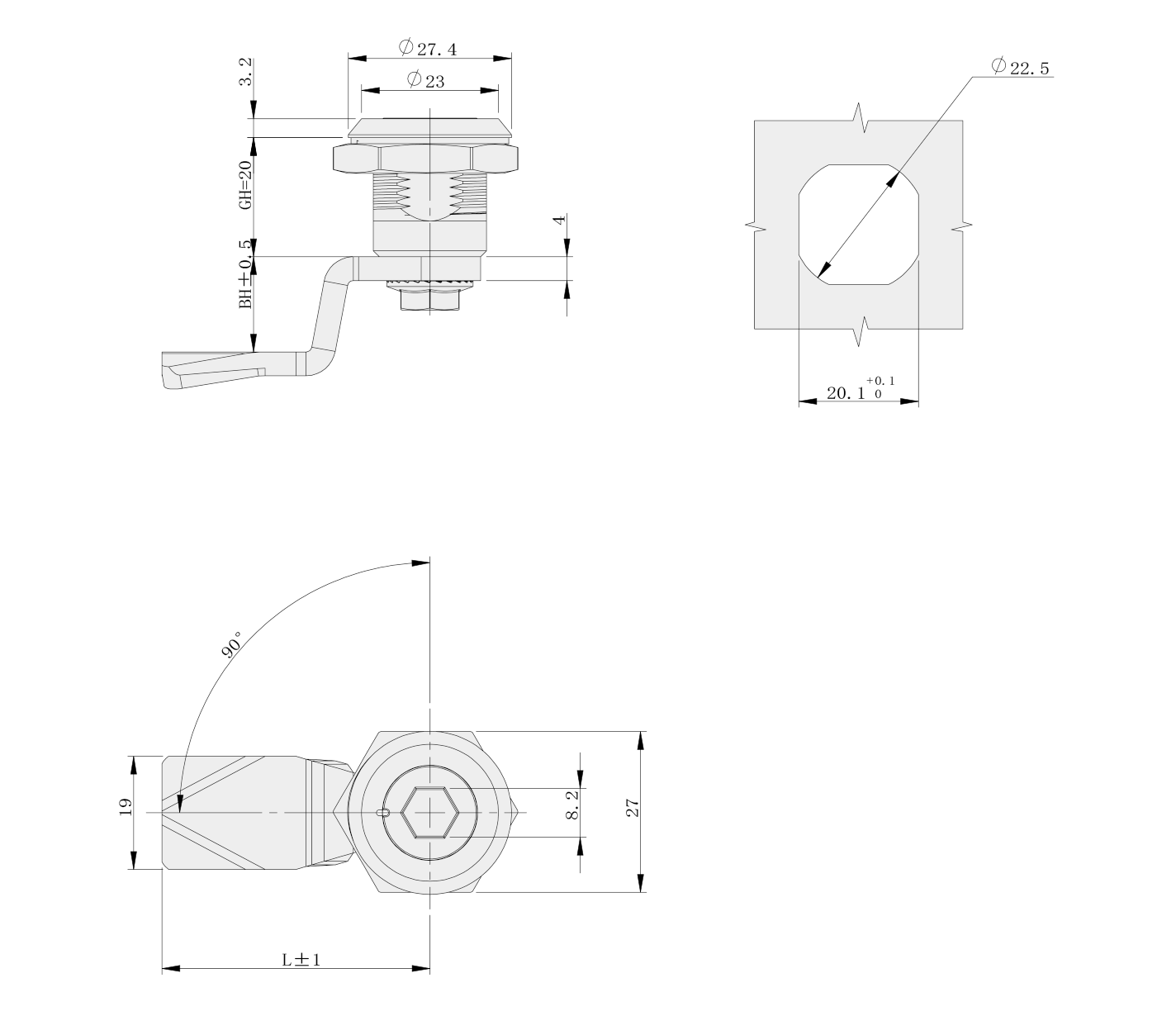

Structure Description: Rotate 90° to open or close; there is a certain clearance during the opening and closing process
| Performance Parameters | |
| Specification | Details |
| Maximum Static Load Capacity | 270N |
| Maximum Input Torque | 9N·m |
| Recommended Tightening Torque for Fixing Nut | 20N·m |
