Material: Handle, Base, Lock Core: Zinc Alloy; Lock Plunger: Carbon Steel
Surface Treatment: Handle, Base, Lock Core: Black Spray Coating (Matte Finish); Lock Plunger: Polished

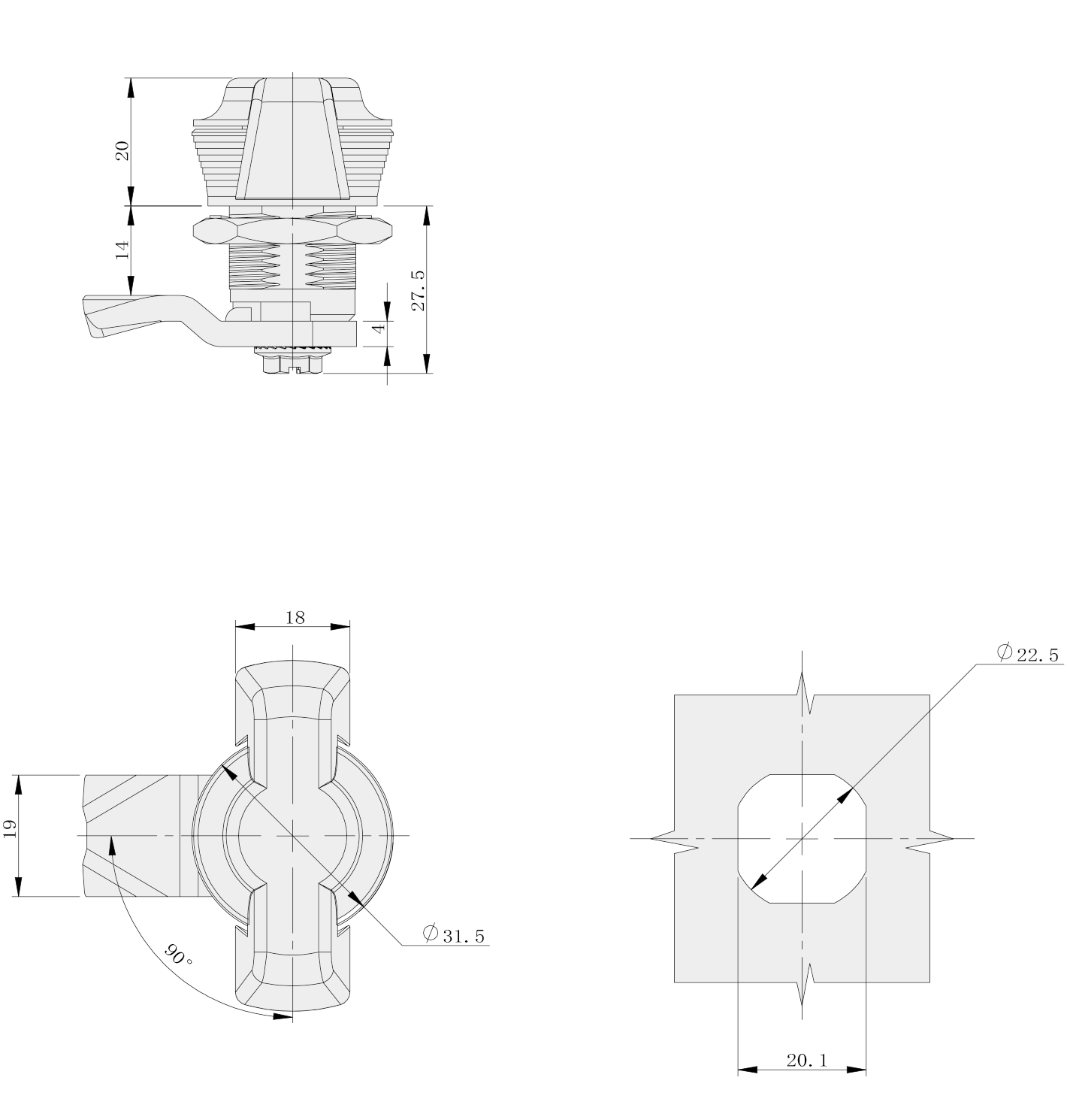

Structure Description: Rotate the handle 90° to open or close
Remarks: Optional: K15-1 key
| Performance Parameters | |
| Specification | Details |
| Maximum Static Load Capacity | 210N |
| Maximum Input Torque | 15N·m |
| Recommended Tightening Torque for Fixing Nut | 20N·m |
