Material: Zinc alloy base, lock cylinder, connector; Q235 carbon steel pin
Treatment: Polished chrome finish

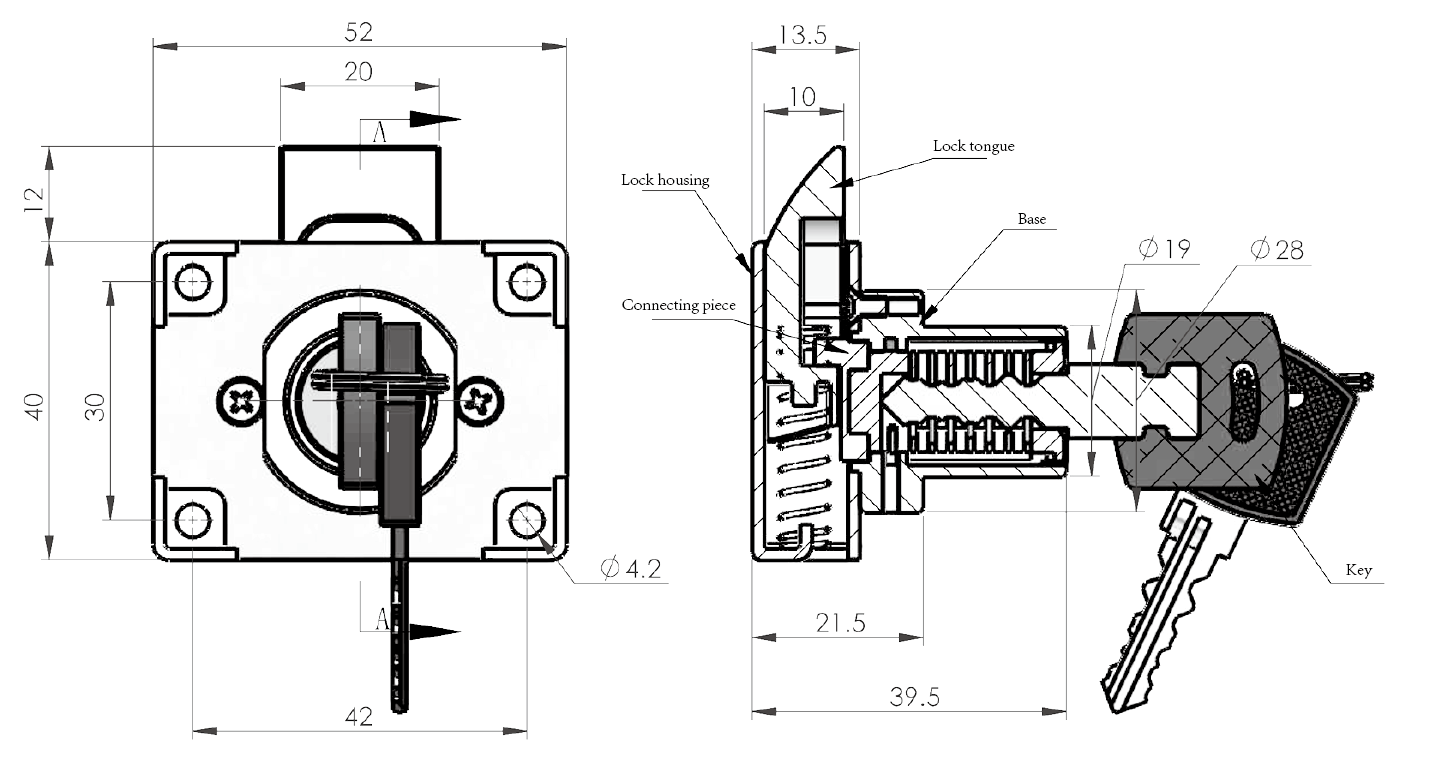

Structure description: The lock cylinder rotates 85°, drives the connector, and the lock pin bounces up or retracts to achieve automatic opening or locking
Lock Cylinder Specification: 1800 series
Note: Default configuration: K08-6
| Performance Parameters | |
| Specification | Details |
| The tensile force value that the lock tongue bears | ≤300N |
| The key carries the torque value | ≤2N·m |
