Material: Zinc alloy base; Q235 carbon steel pin
Surface treatment: Polished chrome finish

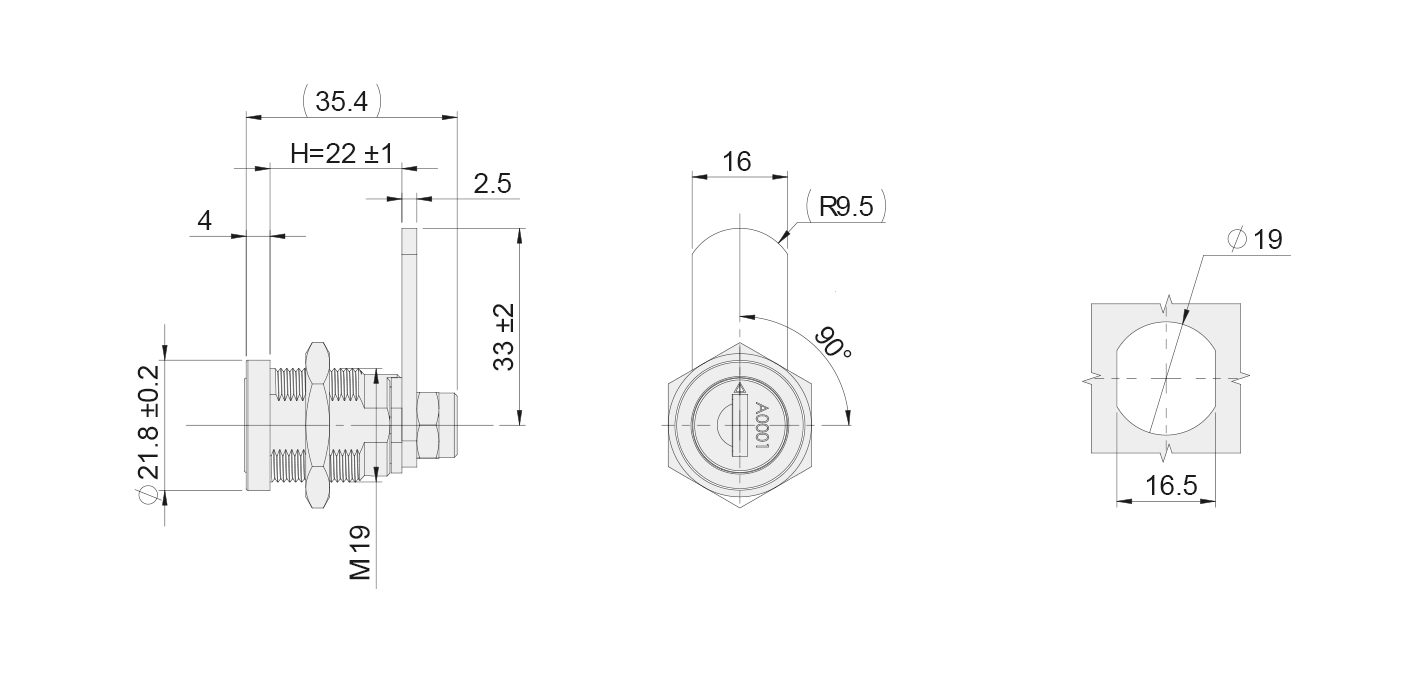

Structure description: The lock core rotates 90° to open, driving the pin to achieve opening or locking
Lock Cylinder Specification: 1800 series
Note: Default configuration: K08-6
| Performance Parameters | |
| Specification | Details |
| The tensile force value that the lock tongue bears | ≤500N |
| The key carries the torque value | ≤2N·m |
