Material: Zinc alloy base, lock cylinder, cap; carbon steel pin, key
Surface Treatment: Chrome plating (base, cap, key); galvanizing (carbon steel pin, lock cylinder)

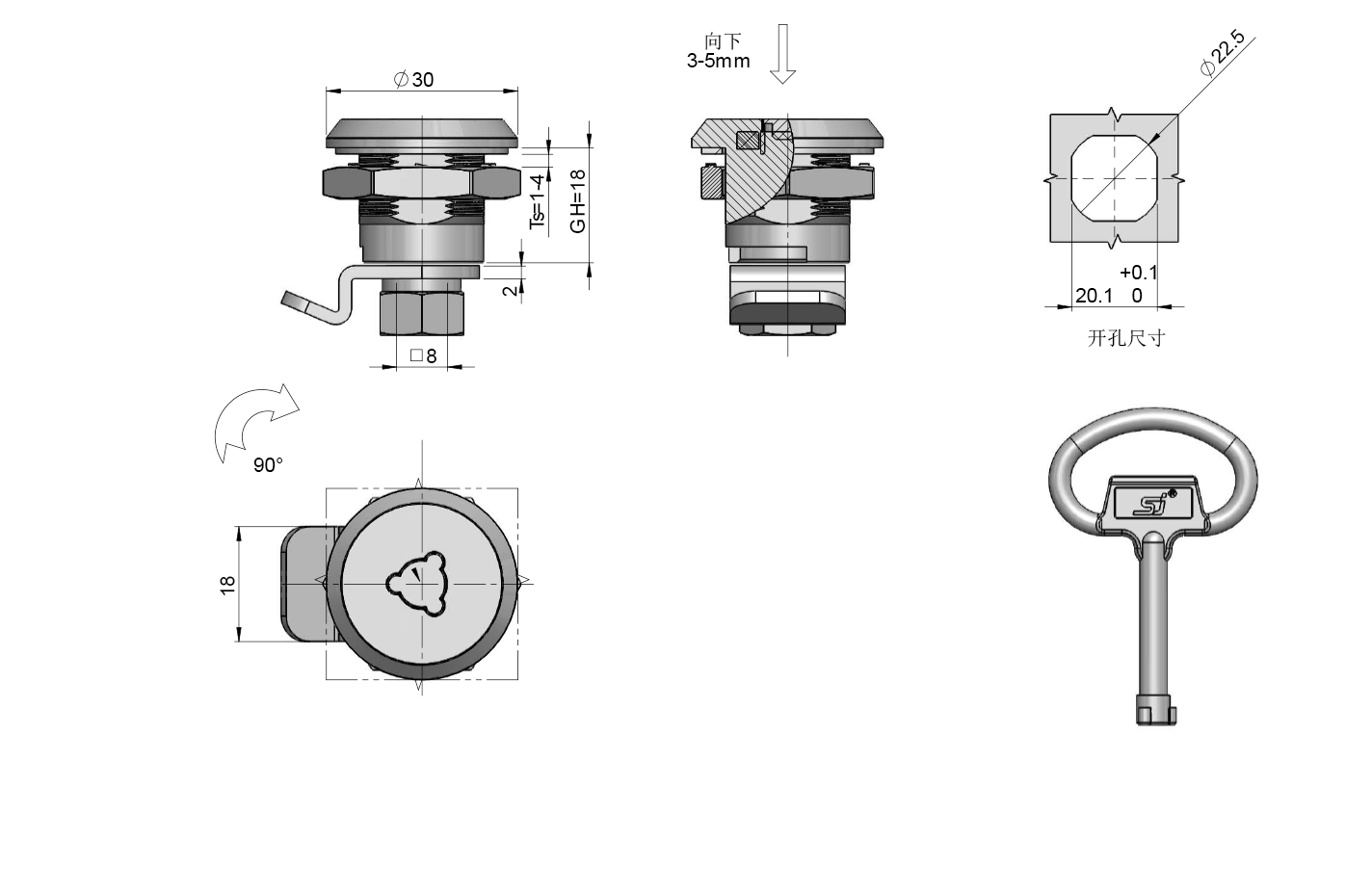

Structure Description: Press the cap to drive the lock cylinder to rotate, realizing opening and locking
| Performance Parameters | |
| Specification | Details |
| Maximum Static Load Capacity | 200N |
| Maximum Input Torque | 9N·m |
| Recommended Tightening Torque for Fixing Nut | 20N·m |
