The ETC outdoor integrated intelligent cabinet is an integrated product for ETC gantries, specially designed for the cancellation of provincial toll stations on expressways. It provides a comprehensive solution for the power supply system of ETC gantries. Among them, the ETC gantry intelligent control cabinet provides necessary installation space for RSU transaction controllers, lane controllers, communication equipment, industrial personal computers (IPCs), and other devices. Meanwhile, it creates a favorable operating environment to ensure stable transmission of power and signals, thereby providing reliable support for the uninterrupted operation of the ETC gantry system.
Pain Points in Industry Application
Harsh Environment: ETC outdoor integrated intelligent cabinets are commonly used in outdoor scenarios (such as beside highways, parks, rooftops, mountainous areas, and ground - mounted scenarios). The installation environment is harsh, which imposes relatively high requirements on the overall protection performance of the cabinet.
High Requirements for Anti - theft and Anti - seismic Performance: ETC outdoor integrated intelligent cabinets are mostly installed in remote road sections and are in an unattended state. Therefore, the cabinet must have high anti - prying performance; moreover, the cabinet needs to meet certain anti - seismic requirements during hoisting, transportation, and use, and the door body is not allowed to be opened abnormally.
Strong Durability and Corrosion Resistance: The product needs to operate stably outdoors for a long time, with a designed service life of 15 years. Locks and accessories also need to have the same long - life and corrosion - resistant characteristics.

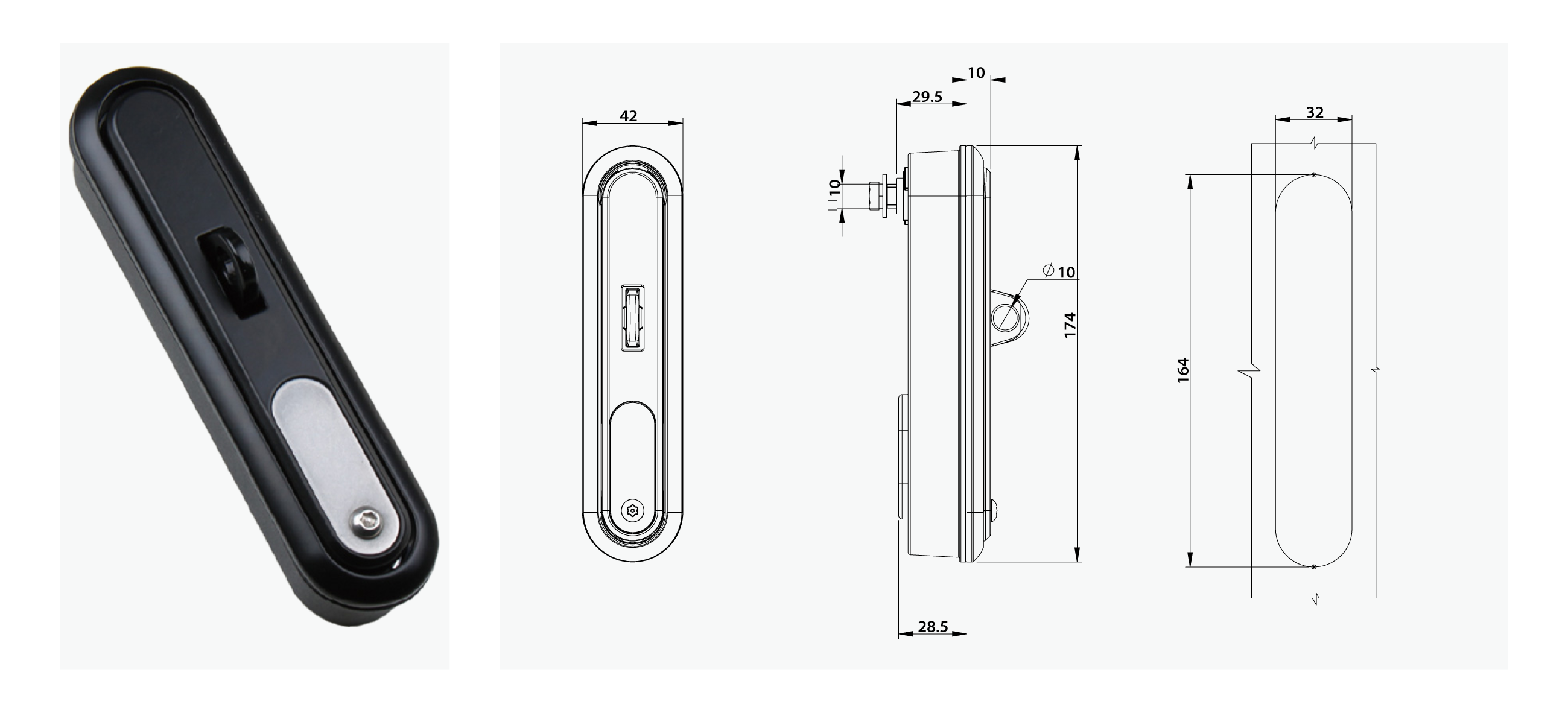

Plane Lock MS892 - 1A
In terms of material, the handle and base are made of zinc alloy, ensuring sturdiness and durability. The surface undergoes powder coating (matte black) treatment, combining aesthetic appeal with protective performance. The functional design is flexible: the lock can be opened and closed via a 90° rotation of the handle, and it supports both left and right opening by changing the direction of the positioning component. Additionally, it is equipped with a padlock function, which can further enhance usage safety.

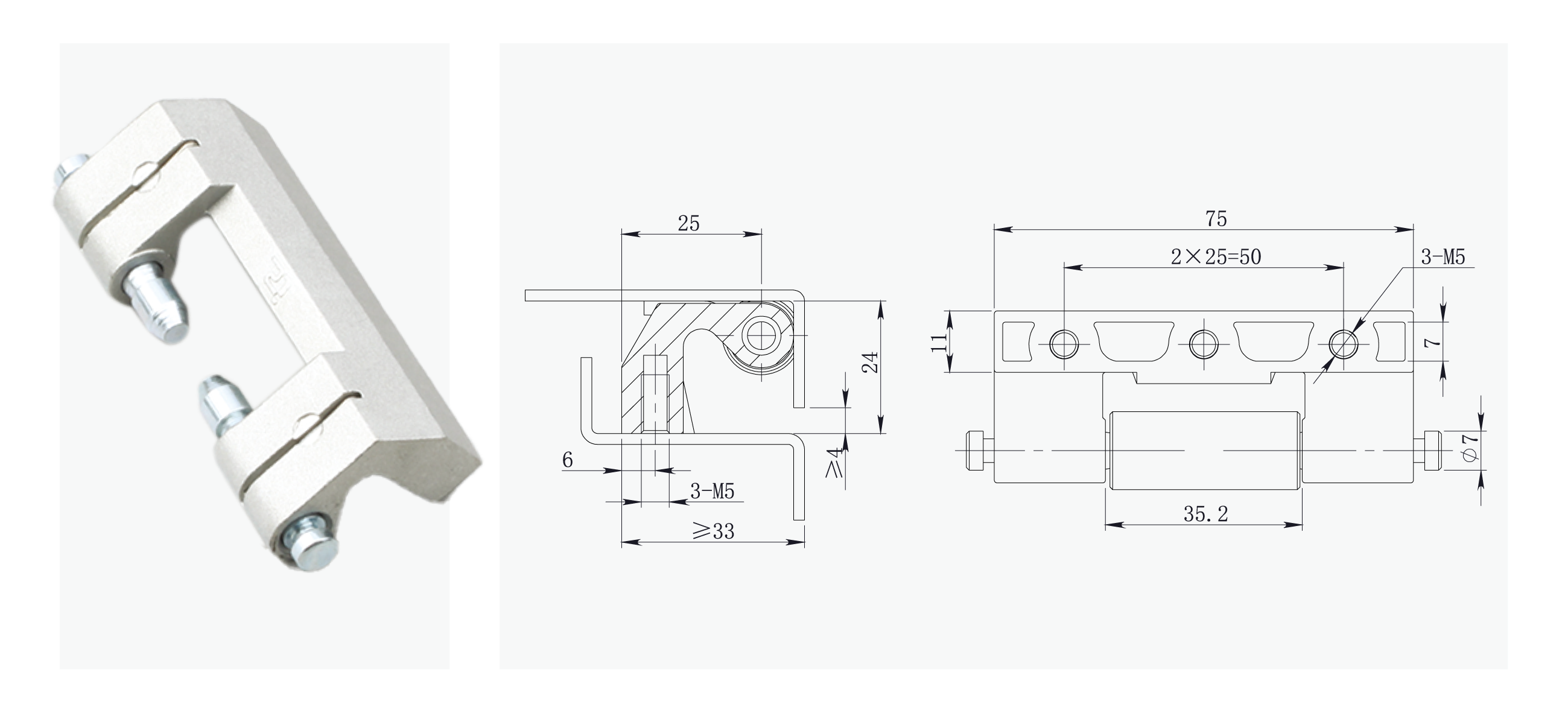

Hinge CL201-1-5D
Hinge CL201-1 adopts zinc alloy for the hinge body, carbon steel for the pin and accessories. In terms of performance, when the tubular accessory is selected, the radial load of the maximum static load is 800N, and the axial load is 1500N.

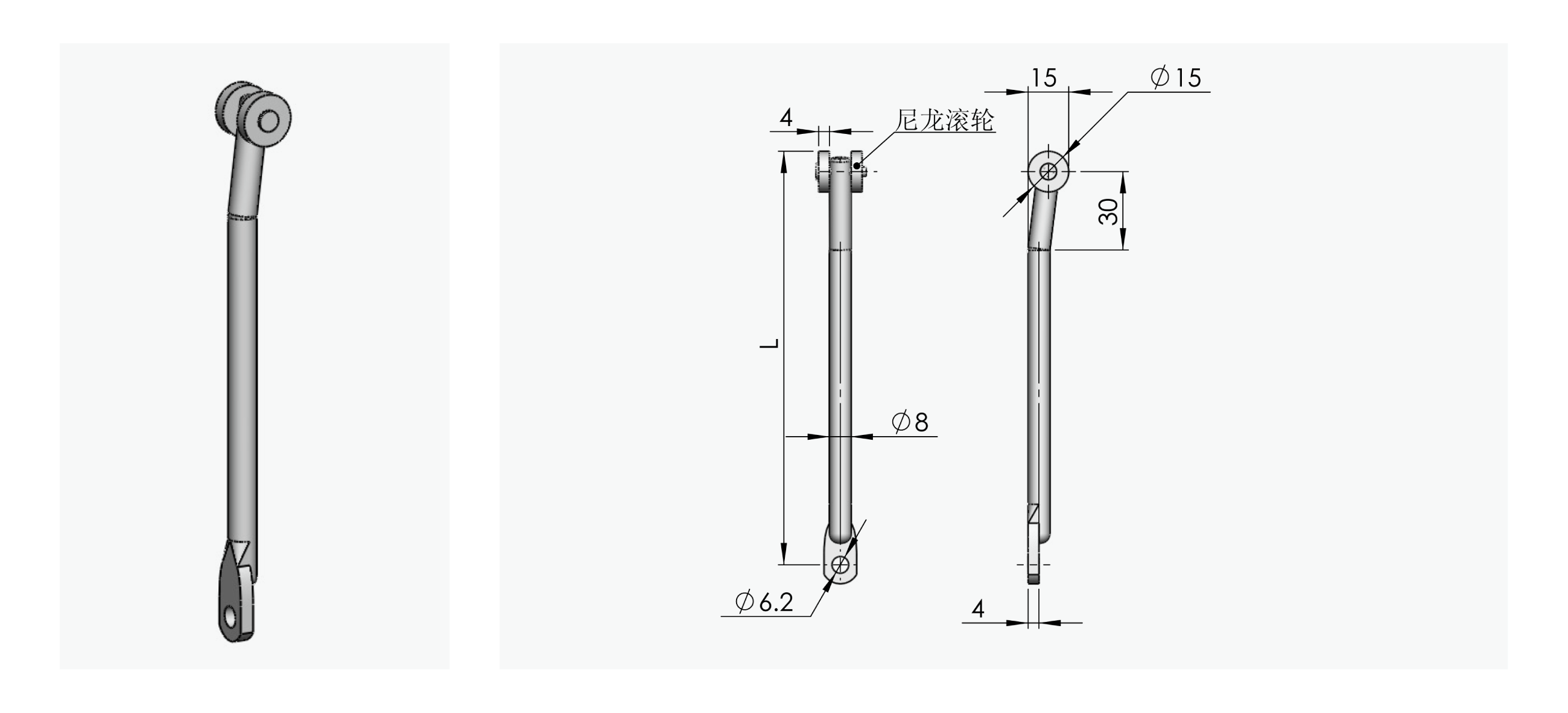

Link Rod LG007 - B - 1
It adopts SUS304 stainless steel combined with electrolytic process, featuring corrosion resistance and high strength, thus ensuring reliable quality. The length can be customized, enabling flexible adaptation to different scenarios and meeting diverse needs.

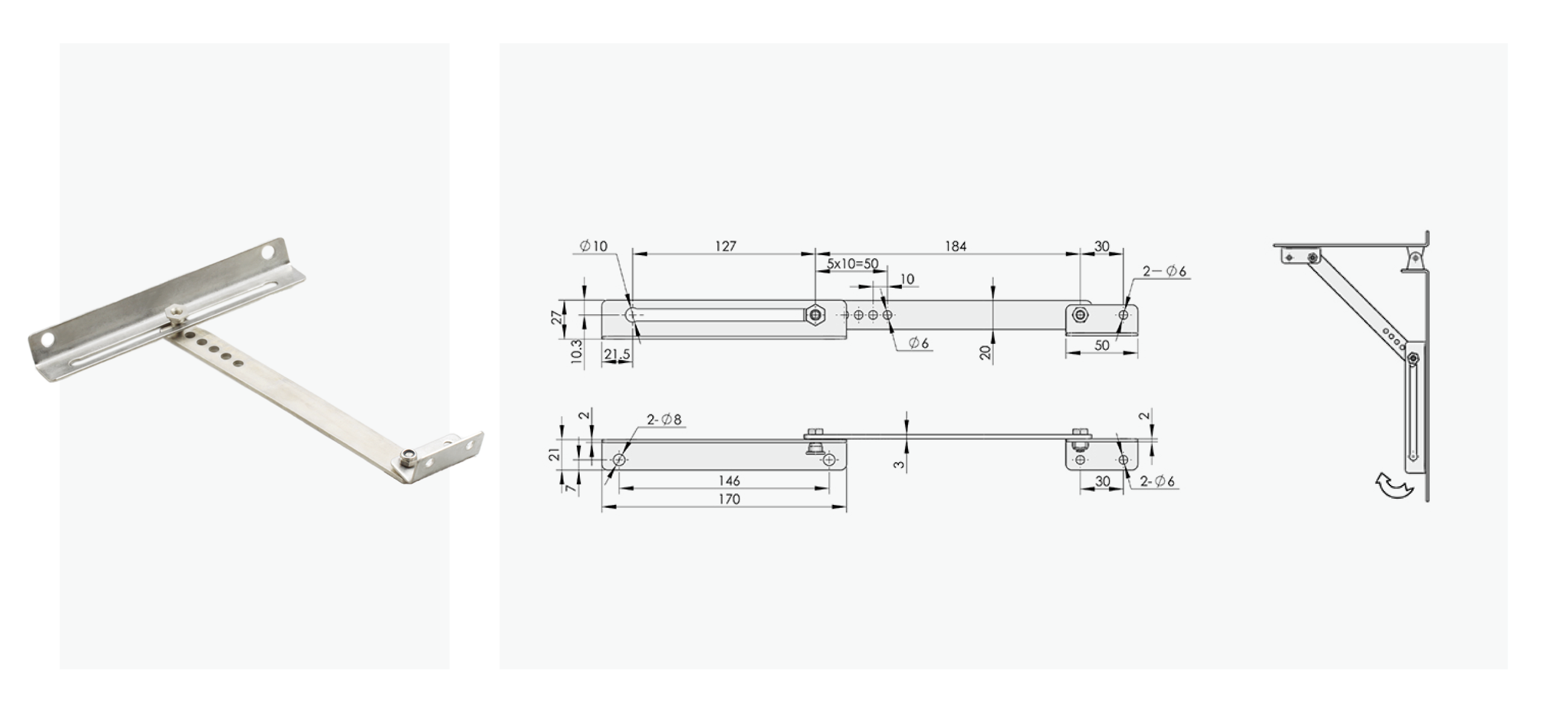

Stopper TX92 - 2
The limiting component is made of SUS304 stainless steel, featuring corrosion resistance and high strength. It can meet the requirements of application scenarios that demand material weather resistance and structural strength.
