As the number of new mobile terminal connections continues to grow, the explosive traffic growth drives data computing and storage demands to increase exponentially. The shipment scale of servers will also see a definite surge, and the growth space of the server industry is gradually expanding.
The number of data centers worldwide is rising steadily. Overall, "improving energy efficiency" is the core priority. Green data centers can not only reduce operating costs but also simultaneously mitigate environmental impacts. Energy resources are the driving force for economic and social development. Energy conservation, consumption reduction, and energy efficiency improvement — recognized globally as the "first energy" — are vital paths to strengthen energy security, achieve economic decarbonization, and promote high-quality development.
Technical Support
High Efficiency: High-output and high-efficiency fan motor design is implemented using simulation technology.
Fluid Design: Enables noise reduction and blade efficiency enhancement.
Low Power Consumption: Reduces power consumption via counter-rotating dual fans.
supporting products

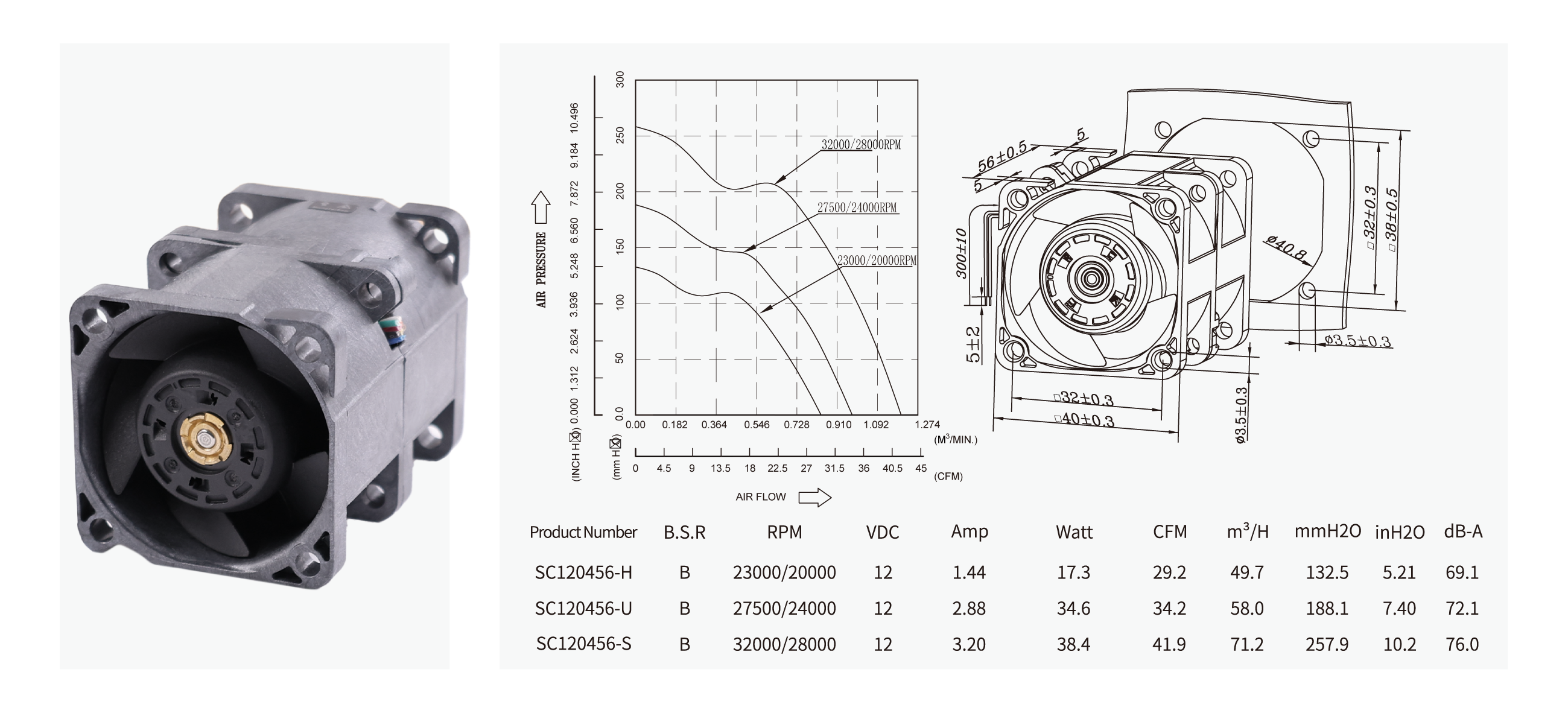

SC4056 Cooling products specifically designed for 1U servers achieve high-performance cooling with high rotational speed as the core. They include models such as SC120456-H, SC120456-U, and SC120456-S, all featuring Type B bearings and a rated voltage of 12VDC. Different models vary in parameters including rotational speed (ranging from 20000 to 32000 RPM), rated current (1.44-3.20 Amp), rated input power (17.3-38.4 Watt), maximum airflow (29.2-41.9 CFM, etc.), maximum static pressure (132.5-257.9 mmH2O, etc.), and noise level (69.1-76.0 dB-A). These products can flexibly adapt to different cooling requirements of 1U servers, providing efficient cooling solutions.
SA8056 is a product specifically designed for CPU heat dissipation, serving as a high-performance, low-vibration, and high-efficiency heat extraction unit. Among its models, the specifications of SA120856-F are as follows: it features Type B bearings, with a rotational speed of 16500/16000 RPM, a rated voltage of 12 VDC, a rated current of 4.60 Amp, and a rated input power of 55.2 Watt. Its maximum airflow can reach 140.7 CFM (or 238.9 m³/h), maximum static pressure is 188.0 mmH2O (or 7.40 inH2O), and noise level is 81.0 dB(A), enabling efficient heat dissipation for CPUs.
