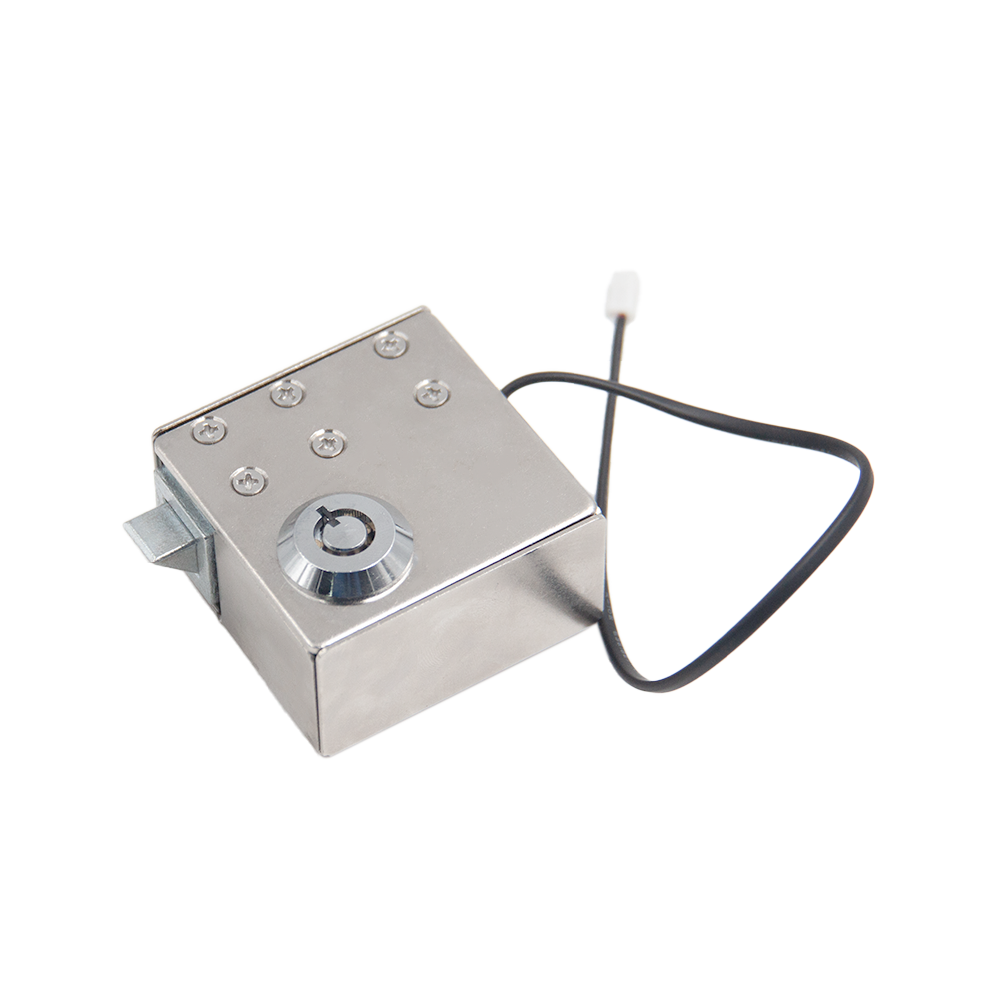

DS635-9K

Unlocking Methods：Power-on Unlocking, Emergency Unlocking

Main Materials：Lock Shell: Q235, Galvanized Treatment

Technical Parameters: Lock Bearing Capacity: ≥600N Load Unlocking: ≥20N Working Voltage: DC12±1V Working Current: ≤2A Neutral Salt Spray: 48h Operating Temperature: -20~70℃ Executive Mechanism: Solenoid Valve

Interface Definition: Red Wire: VCC Black Wire: GND Blue Wire: Status Output Wire White Wire: Status Output Wire

Notes: The blue and white wires are open-circuited when the lock is locked, and short-circuited when the lock is unlockedThe top pin is optional
