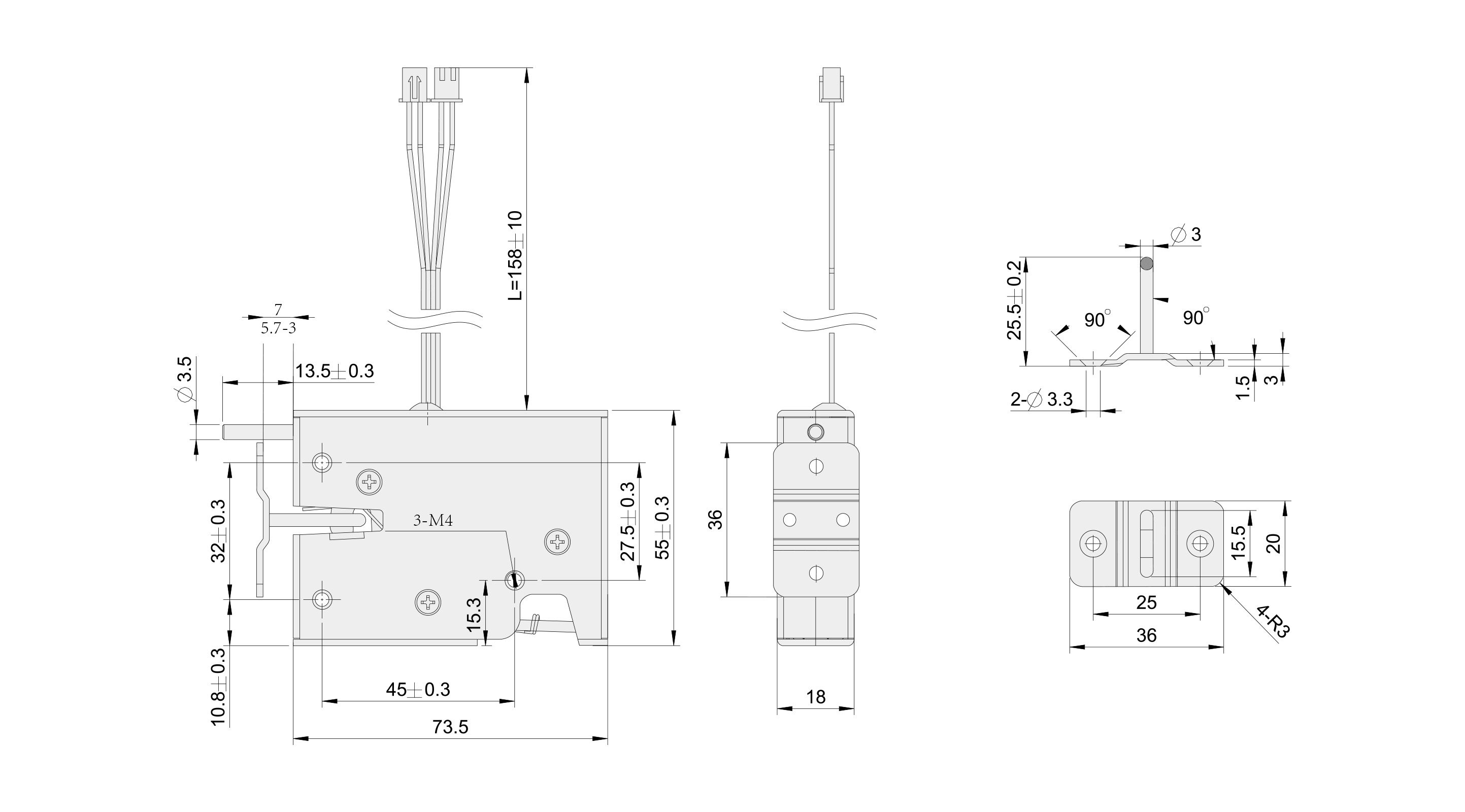

DS635-4E

Unlocking Methods：Power-on Unlocking, Emergency Unlocking

Main Materials：Lock Body: Q235, Electrophoretic Black

Technical Parameters：Lock Bearing Capacity: ≥600N Load Unlocking: ≥200N Working Voltage: DC4.0-5.5V Working Current: ≤0.5A Neutral Salt Spray: 48h Operating Temperature: -20~70℃ Working Humidity: Electric Machinery

Interface Definition：Type: XH2.54-2Y Red Wire: VCC Black Wire: GND Yellow Wire: Status Output Wire Green Wire: Status Output Wire

Notes：The two status lines are open when the lock is unlocked, and shorted when the lock is locked
