MS858
Shengjiu Group

MS858

Product description
  • Material: Zinc alloy bracket, dust cover, handle, rotating shaft; Stainless steel panel, bolt; Carbon steel rotating shaft

  • Surface Treatment: Mirror-polished stainless steel panel; Bright chrome-plated handle, shaft sleeve, dust cover; White zinc-plated bracket, rotating shaft

  • Note: Default key K130

  • Bolt Material No.: S1B70Y13002 (default)

  • Optional Components: WP003 lock head waterproof cover (optional); Selected panel (including stud welding, dimension marking), default bolt S1B7013D

Technical Parameters

Technical Parameter

Handle Bearing Torque

≤27N.m

Bolt Bearing Capacity

≤510N

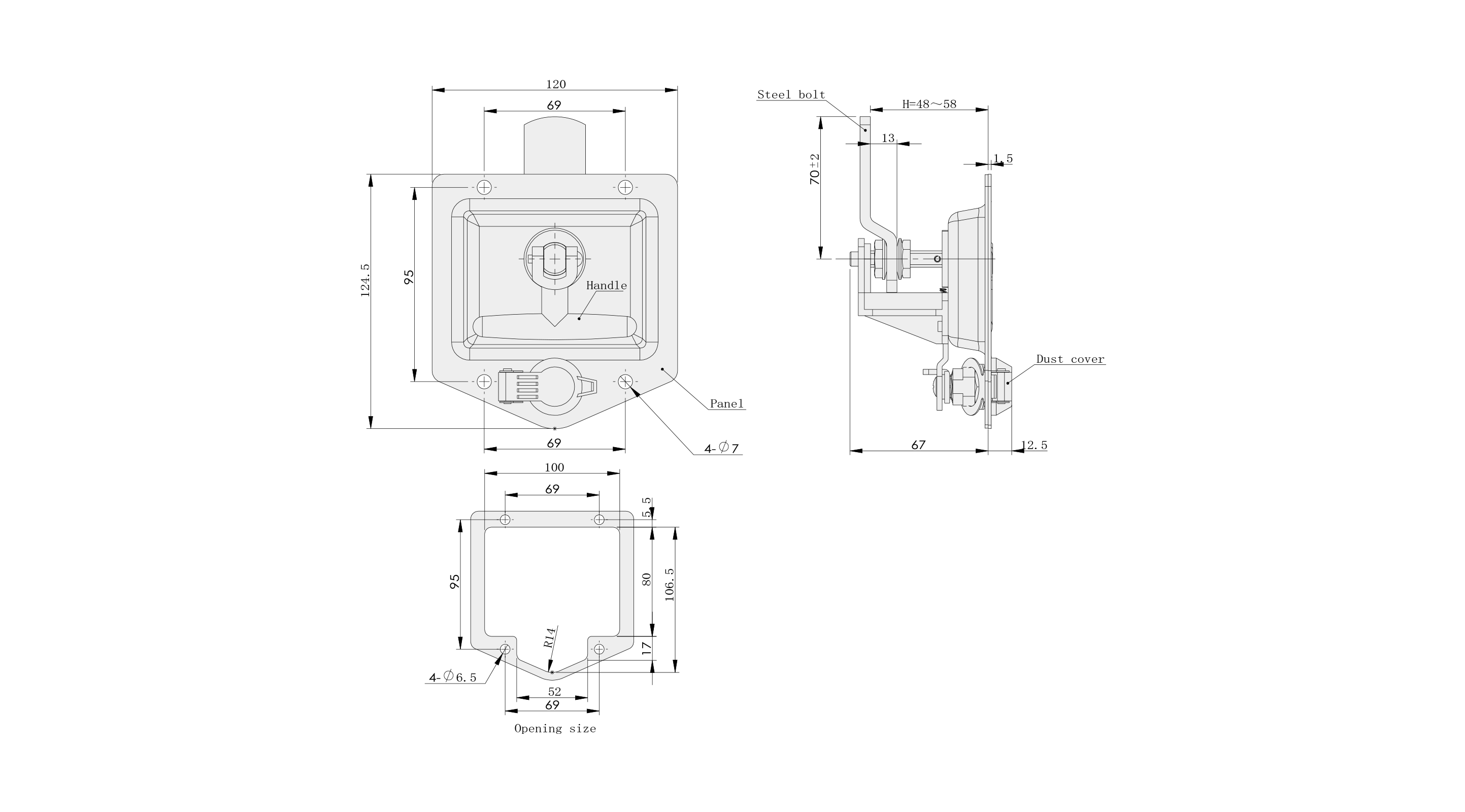

Drawing information
