MS866-5E-3/4
Shengjiu Group

MS866-5E-3/4

Product description
  • Material: Carbon steel panel, handle, lock catch; Zinc alloy lock head; Stainless steel cover

  • Surface Treatment: Sandblasted and galvanized panel, handle; Chrome-plated zinc alloy lock head

  • Structure Description: As shown in the locked state, after rotating the key to open the lock core, the handle is pulled up at an angle of about 20° to open the lock catch; The handle has an anti-loose structure and can automatically reset; Fixed buckle accessories are optional and not included by default

Technical Parameters

Feature Description

Without Lock Core

MS866-5E-3


Technical Parameter

Handle Bearing Tension Value

≤145N

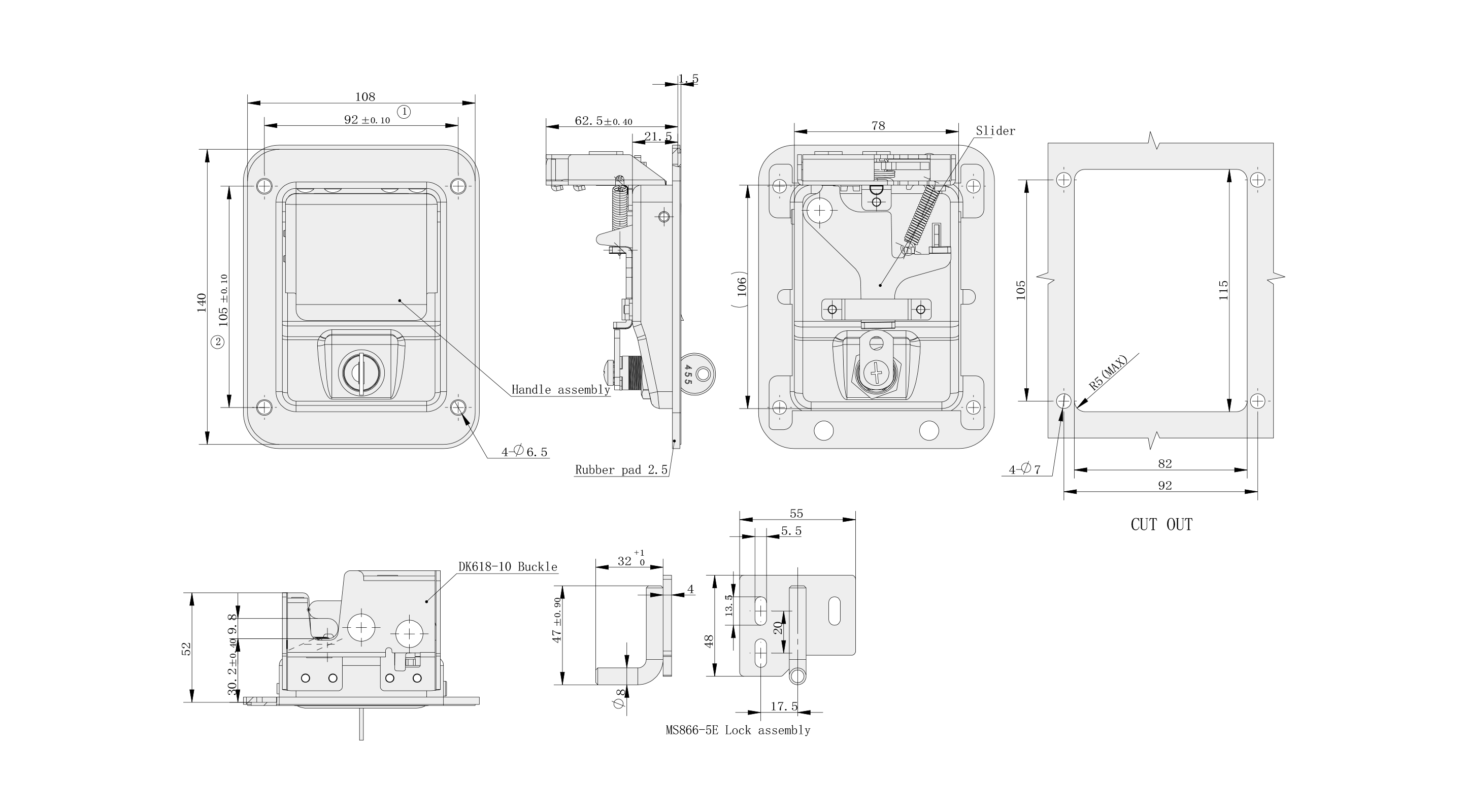

Drawing information


Application solution
    No Data
