Material: Base, lock core, handle: Zinc alloy; Lock plunger: Stainless steel
Surface Treatment: Base, lock core, handle: Black matte spray coating; Lock plunger: Electroplating + passivation treatment

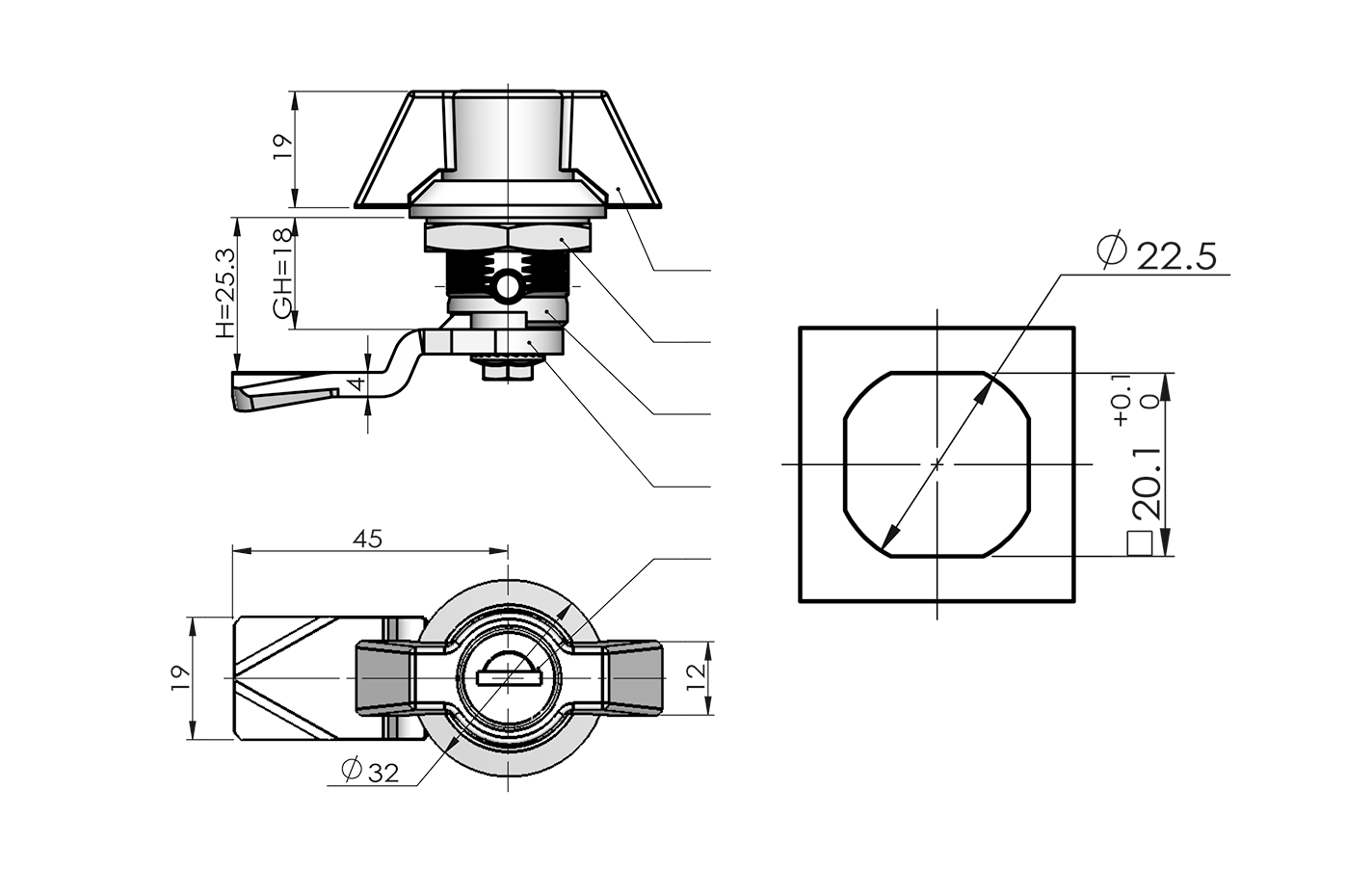

Structure Description: Rotate 90° to open or close
Remarks: Default key: L1C0160 (lock assembly with K16 key)
| Performance Parameters | |
| Specification | Details |
| Maximum Static Load Capacity | 270N |
| Maximum Input Torque | 30N·m |
| Recommended Tightening Torque for Fixing Nut | 20N·m |
