JP Cabinet is a compensation power distribution cabinet applied in low-voltage distribution systems, usually installed under transformers, integrating metering, power distribution, and compensation functions.
The distribution cabinet matched with distribution transformers is abbreviated as JP Cabinet. With the continuous advancement of rural power grid renovation, a large number of JP Cabinets have been applied in rural power lines and various distribution transformer stations.
Designed to meet the requirements for standardization, miniaturization, and outdoor deployment of rural low-voltage distribution devices, the JP Cabinet integrates functions of power distribution, metering, protection (overload, short circuit, leakage, lightning protection), and capacitive reactive power compensation. As an integrated power distribution cabinet for electricity, it is equipped with protection functions including circuit breaker protection, metering, lightning protection, overload protection, short-circuit protection, phase-failure protection, and leakage protection, and is generally installed on the low-voltage side of outdoor transformers. The cabinet body of the JP Cabinet adopts a galvanized angle steel frame and is externally covered with stainless steel plates. The surface of the cabinet body has no dazzling reflection; the distribution cabinet body can resist rain, dust, theft, electric leakage, lightning strikes, and electromagnetic interference, and has sufficient strength to ensure no deformation during transportation and installation.

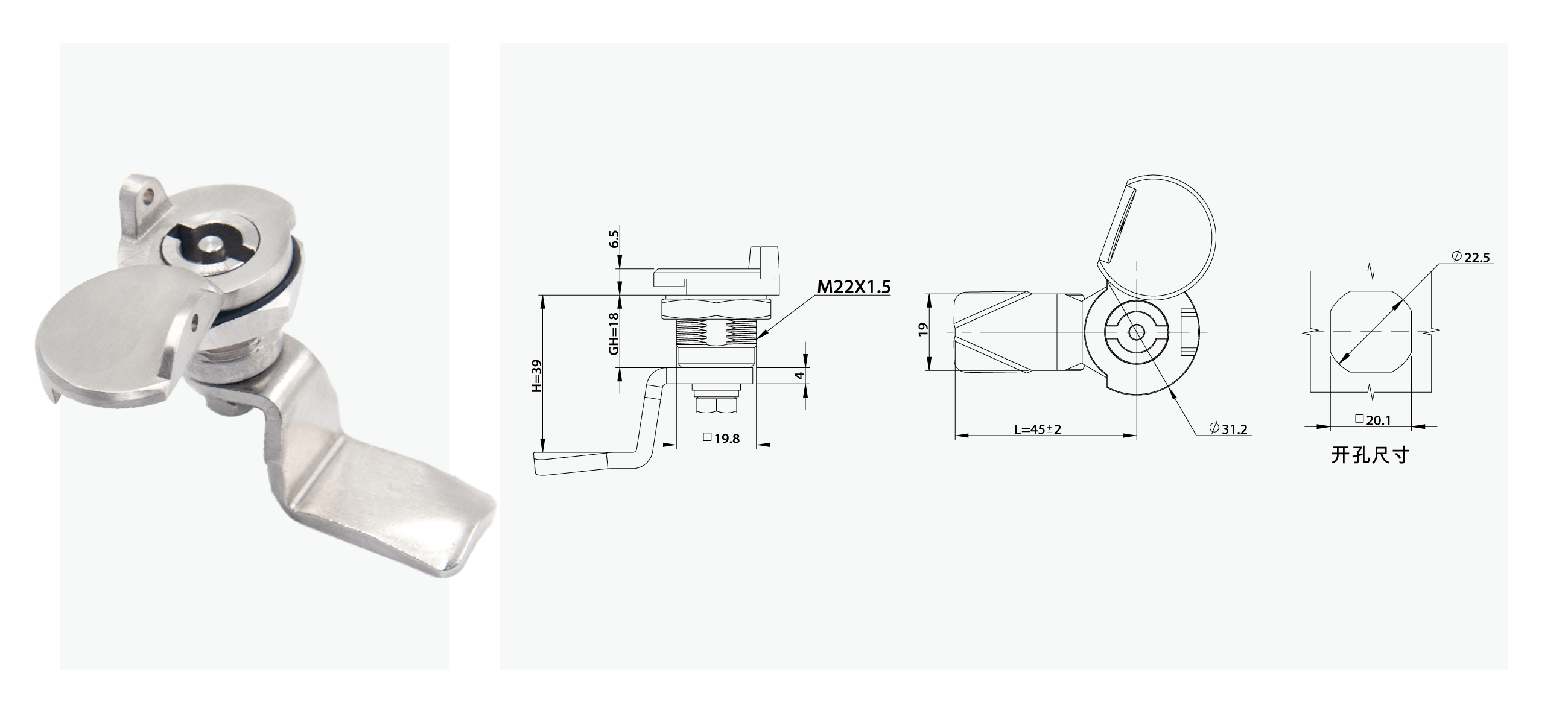

Cylindrical Lock MS705-3A-1
This product adopts a base, cylinder, and dust cover made of SUS316 material, which undergoes passivation treatment, and its protection class reaches IP65. It adopts a rotary locking method and is matched with a tool - type wing cylinder, allowing for convenient operation. The safe bearing capacity of the steel bolt is 300N, with reliable load - bearing performance, and it is a newly launched industrial lock.

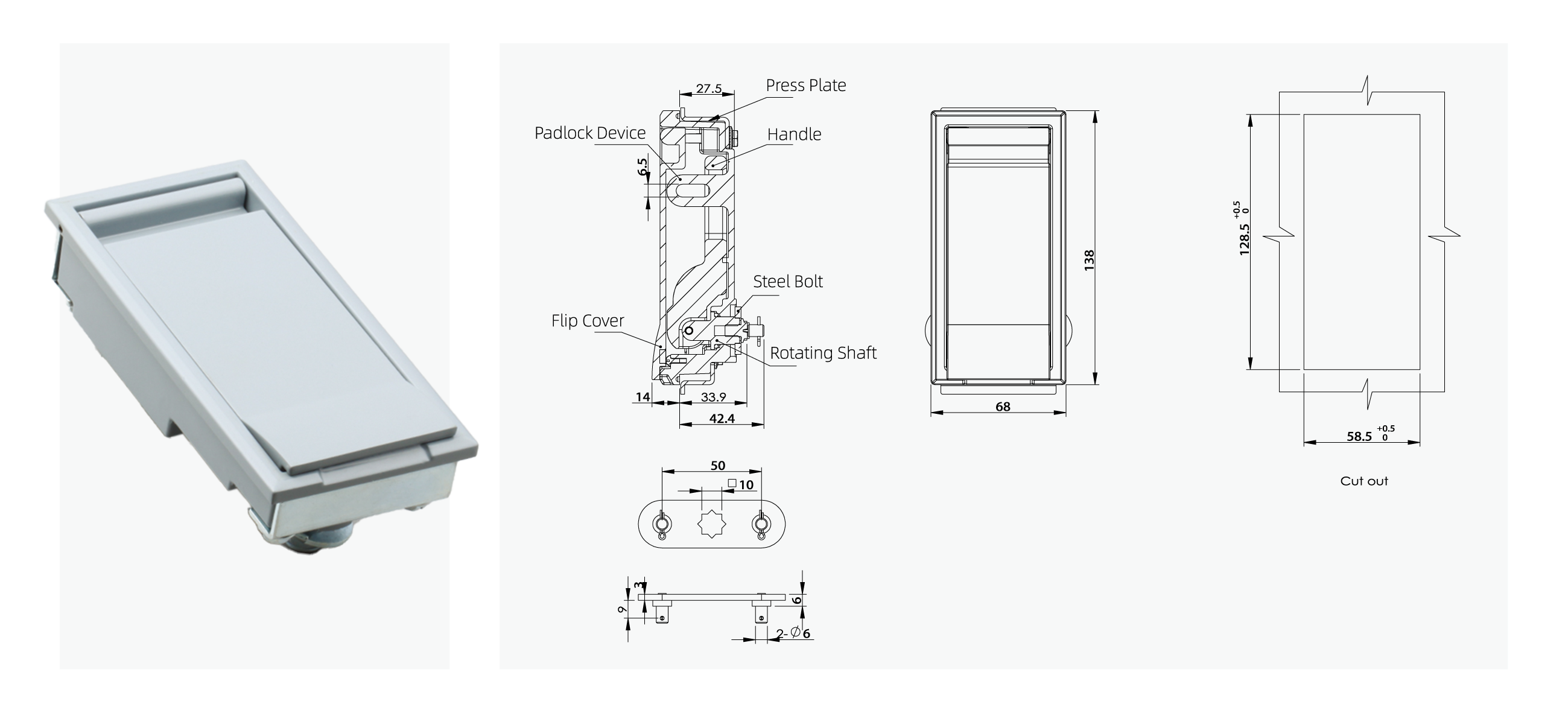

Panel Lock MS850-1A-F
Lock MS850 - 1A adopts aluminum alloy for its base, handle and cover plate, zinc alloy for its padlock device, and carbon steel for its steel bolt, pressure plate and rotating shaft. The surface undergoes treatments such as powder coating (base in blue - gray, handle in matte black) and white zinc plating. The handle's bearing torque value is ≤18N.m. It is equipped with a default steel bolt (part number: 2893250016), featuring a rational structural design and suitable for industrial lock scenarios.
