MS712/MS713/MS713-Q
Shengjiu Group

MS712/MS713/MS713-Q

Product description
  • Material: Zinc alloy base, handle, lock core; carbon steel pressure plate, bolt

  • Surface Treatment: Nano matte base, handle; white zinc-plated pressure plate, bolt

  • Structure: Quick opening, easy to install; replacing the bolt can achieve single-point and three-point locking functions; changing the placement angle of the positioning piece and bolt can realize left and right door opening

Technical Parameters

Performance Parameters

MS712

Handle Bearing Tension

≤690N

 Handle Bearing Torque

≤42N·m

MS713

Handle Bearing Tension

≤510N

Handle Bearing Torque

≤40N·m

Maximum Static Load: 265N

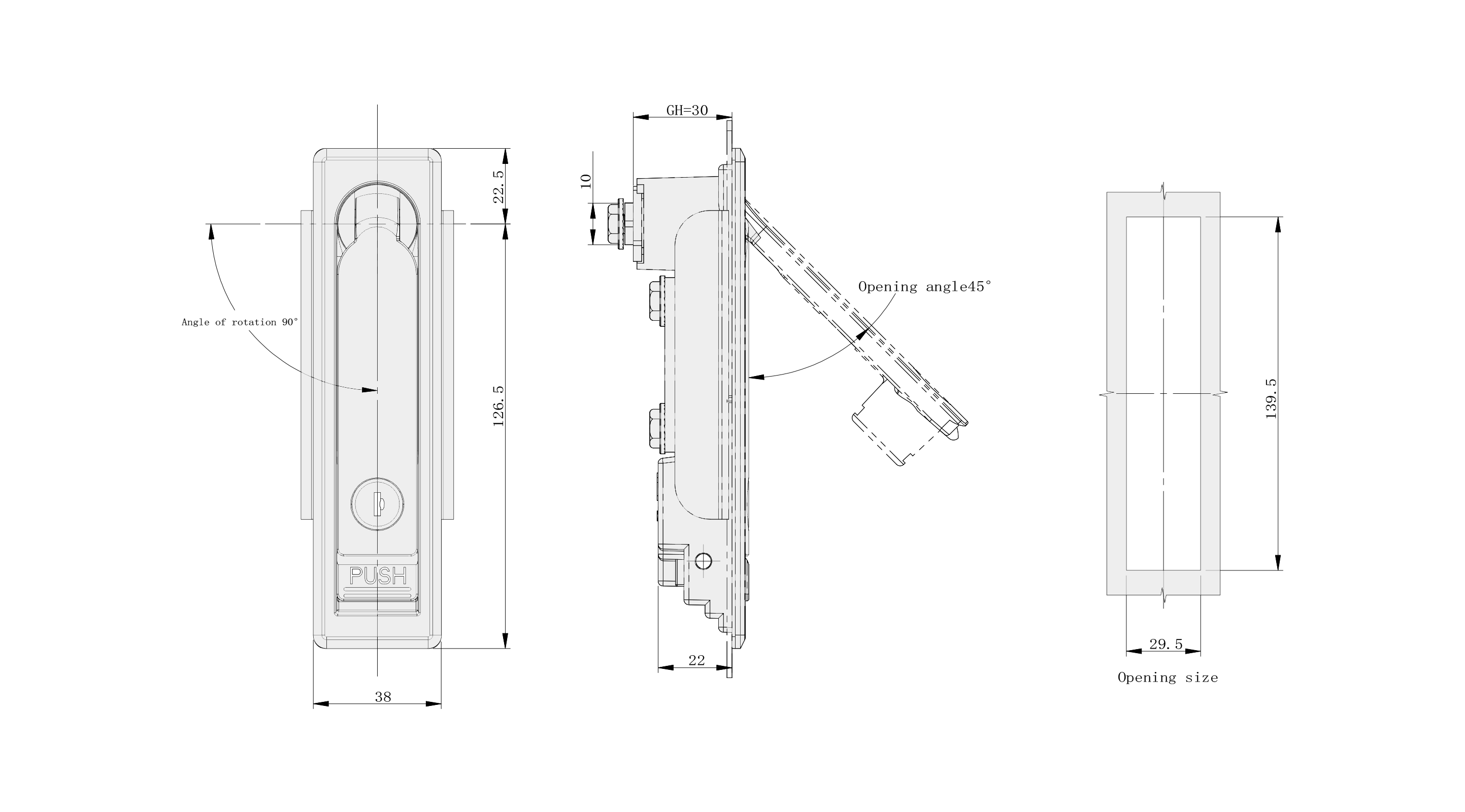

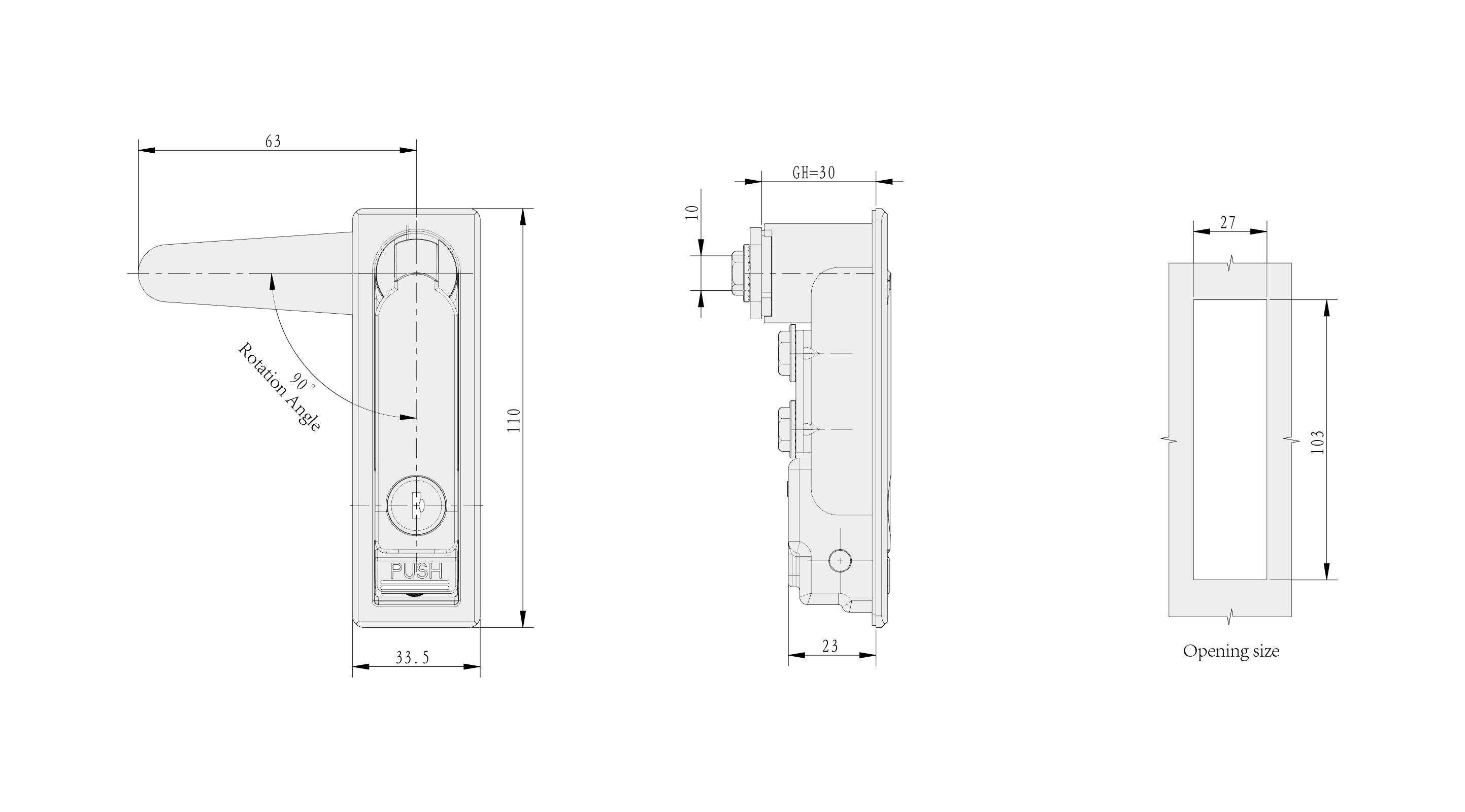

Drawing information

MS712



MS713-Q
