Material: Zinc alloy handle and base
Surface Treatment: Spray black (matte finish)

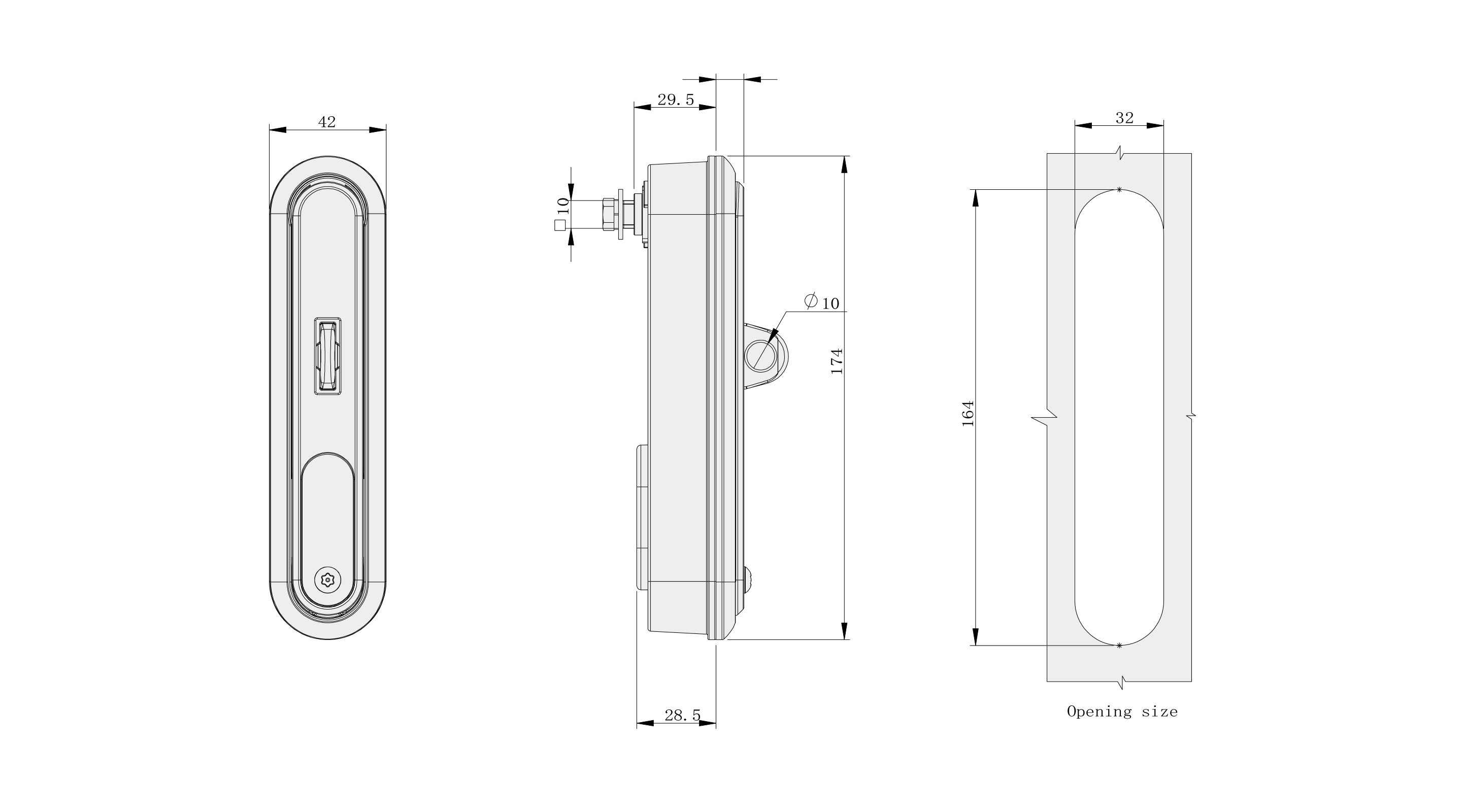

Structure Description: Rotate the handle 90° to open and lock; adjust the direction of the positioning piece to switch left/right opening; with padlock function
| Performance Parameters | |
| Specification | Details |
| Handle Pull Force | ≤690N |
| Maximum Handle Torque | ≤45N·m |
| Maximum Load Capacity | 600N |
| Note | Tightening the protective cover helps protect the lock head |
