Material: Zinc alloy base, handle; carbon steel pin
Surface Treatment: Rice grain matte finish (base, handle); galvanized (carbon steel pin)

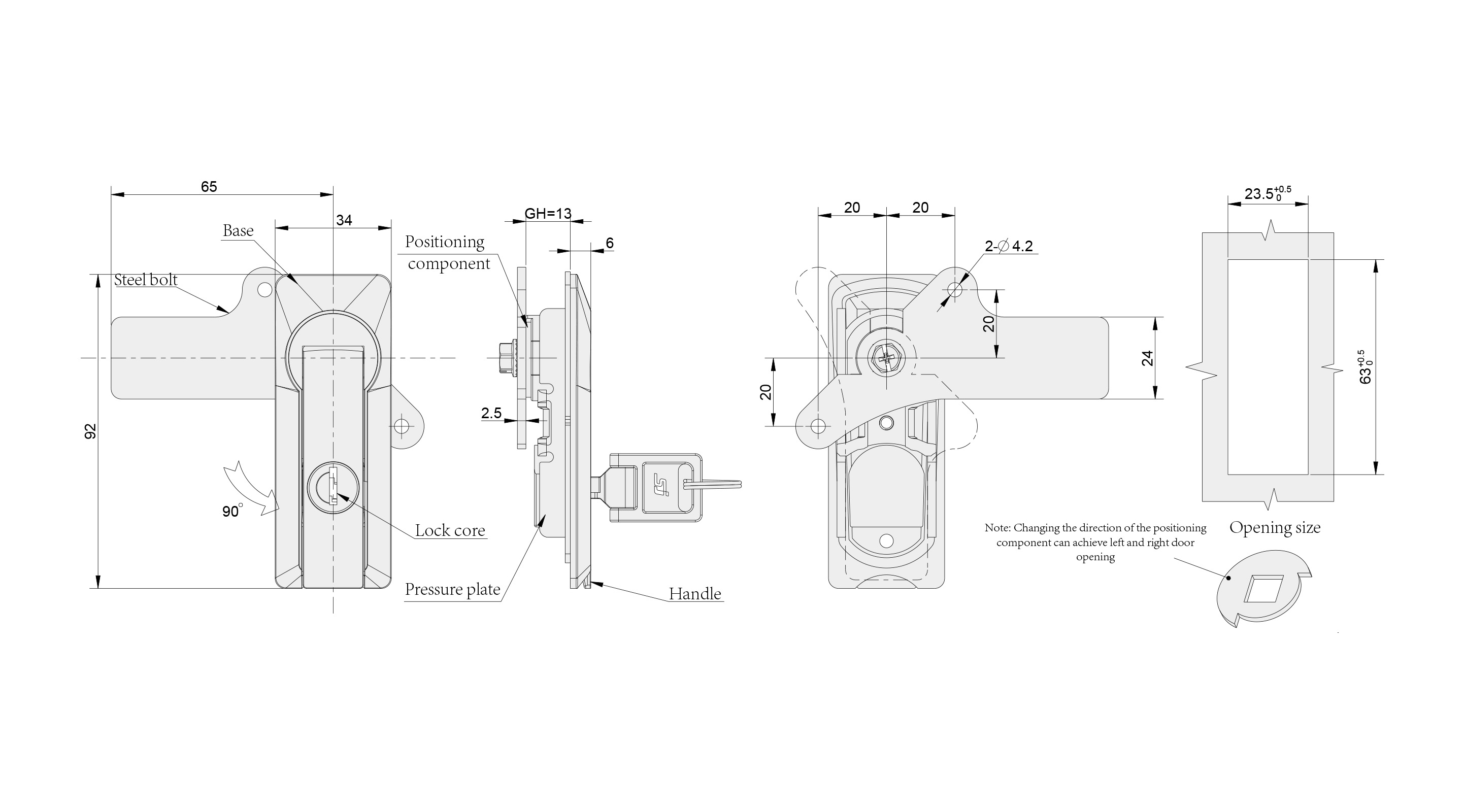

Structure Description: Lift the handle upward to open; rotate 90° to achieve locking
Note: Default configuration: K083 keys
| Performance Parameters | |
| Specification | Details |
| Handle Pull Force | ≤130N |
| Maximum Handle Torque | ≤18N·m |
| Maximum Load Capacity | 200N |
