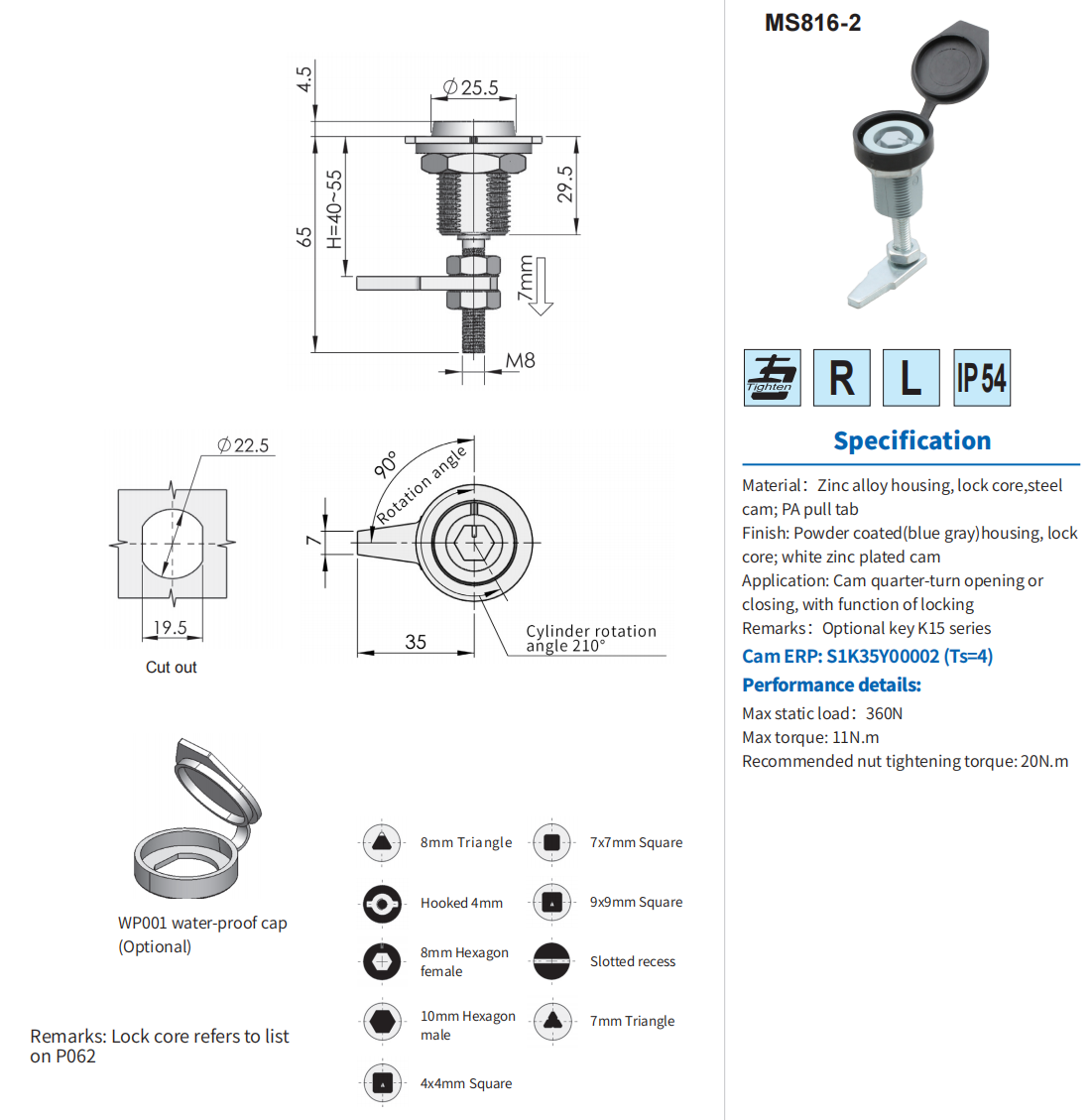

MS816-2

Material: Zinc alloy housing, lock core,steelcam; PA pull tab

Surface treatment: Powder coated(blue gray)housing, lockcore, white zinc plated cam

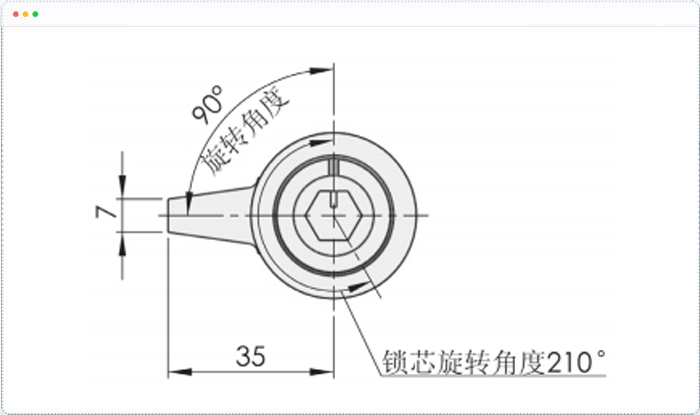

Structural description: Cam quarter-turn opening orclosing, with function of locking

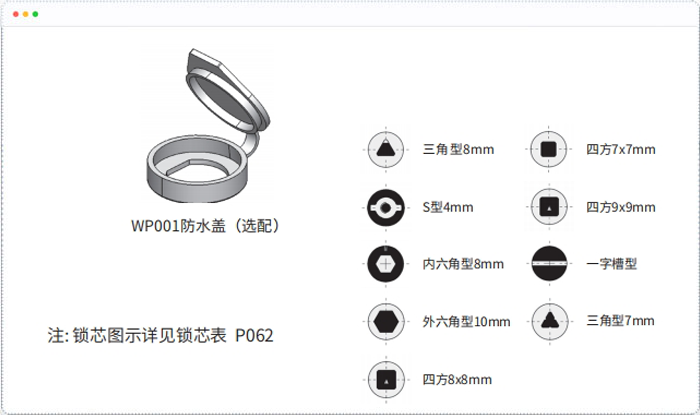

Note: K15 series keys are optional

Steel bolt material number: S1K35Y00002 (Ts=4)

Maximum static load: 360N

Maximum input torque: 11N. m

Recommended tightening torque for fixing nuts: 20N m
