CL106
Shengjiu Group

CL106

Product description

Material: Zinc alloy hinge + stainless steel rotating shaft + spring, balancing structural rigidity and elastic function requirements

Surface Treatment: Sandblasting and nickel plating process, improving rust and wear resistance while enhancing appearance texture

Structure: Equipped with fixed pin and pull pin, supporting left-right bidirectional door opening, built-in spring adapts to elastic opening/closing scenarios

Ask for priceAsk for price DownloadDOWNLOAD
Technical Parameters

Performance Parameters

Maximum Static Load

Axial load 645N

Application Scenarios

Suitable for scenarios such as equipment cabinet doors and medium-sized cabinets requiring bidirectional opening/closing

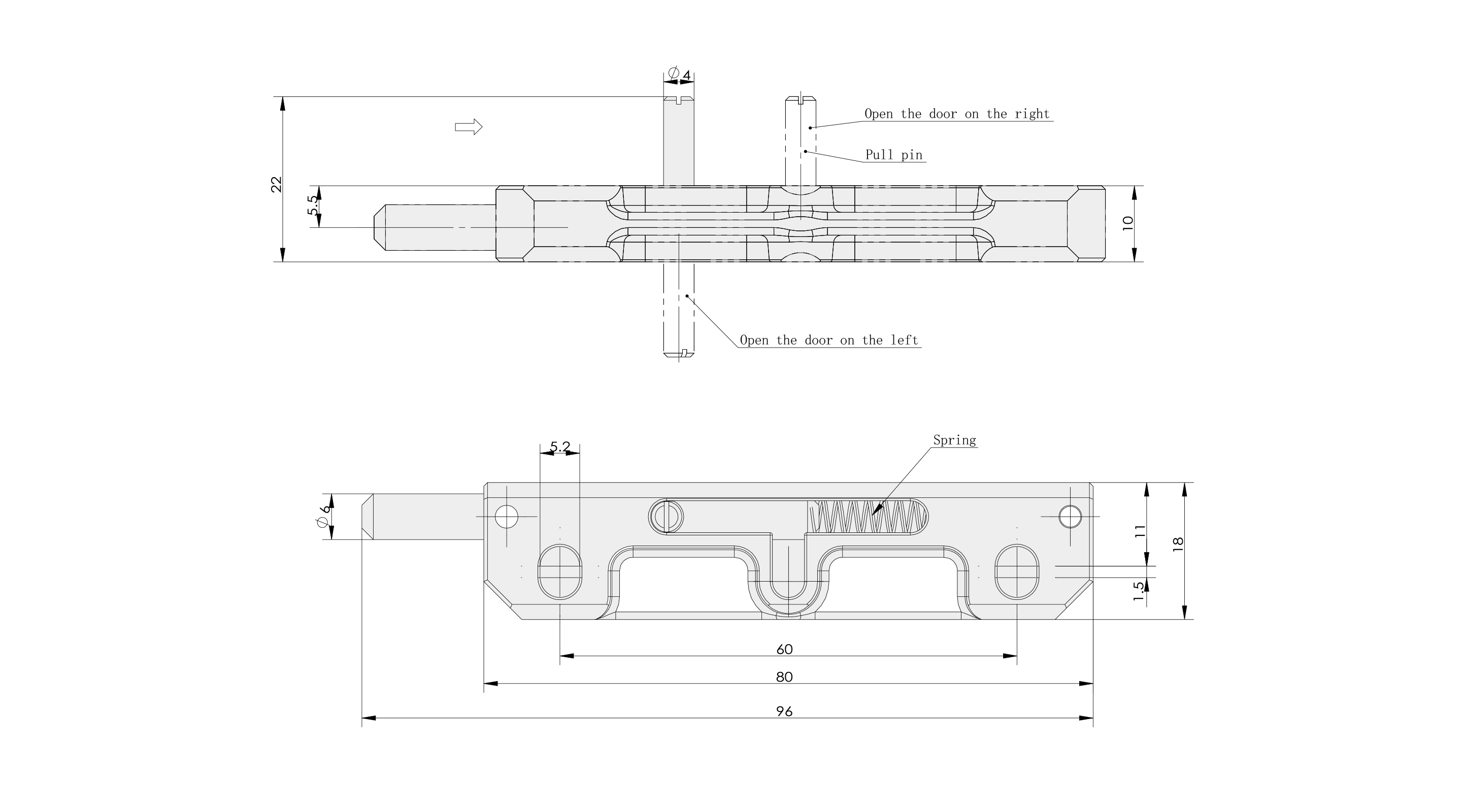

Drawing information


Application solution
