MS840-4
Shengjiu Group

MS840-4

Product description

Material: Zinc alloy base, handle; galvanized steel pin

Surface Treatment: Handle, base: spray black (matte finish)

Structure Description: Rotate the handle 90° to drive the steel pin via the base, achieving opening and locking; switch left/right opening by adjusting the positioning piece and the placement angle of the steel pin

Features:

Realize locking and opening via magnets; the locking mechanism is not exposed, and the single-piece weight exceeds that of conventional locks
When in use, place the key in the groove on the handle; after use, store the key properly


Technical Parameters
Performance Parameters
SpecificationDetails
Load Capacity of Handle≤400N
Load Torque of Handle≤35N·m

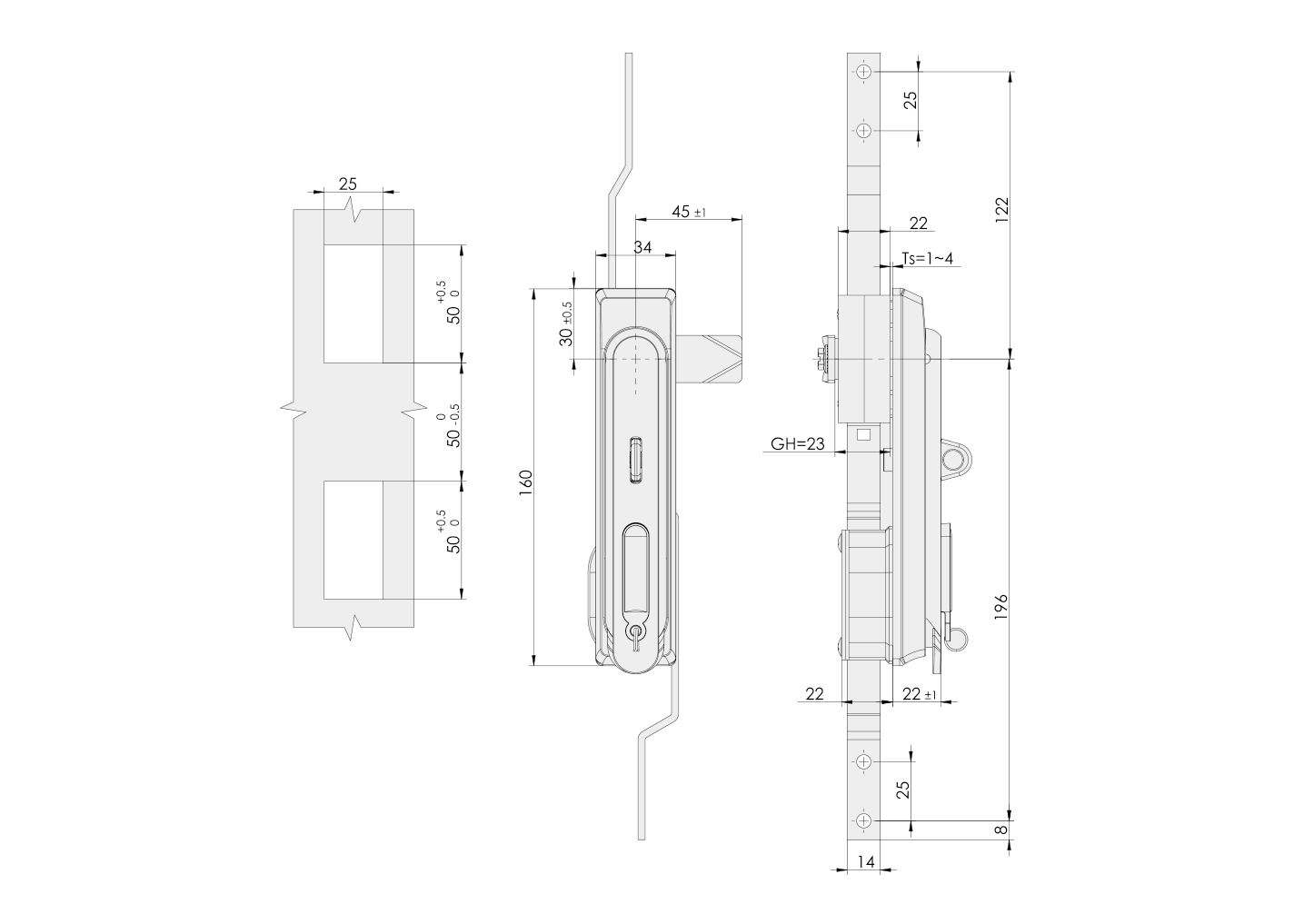

Drawing information
Application solution
    No Data
