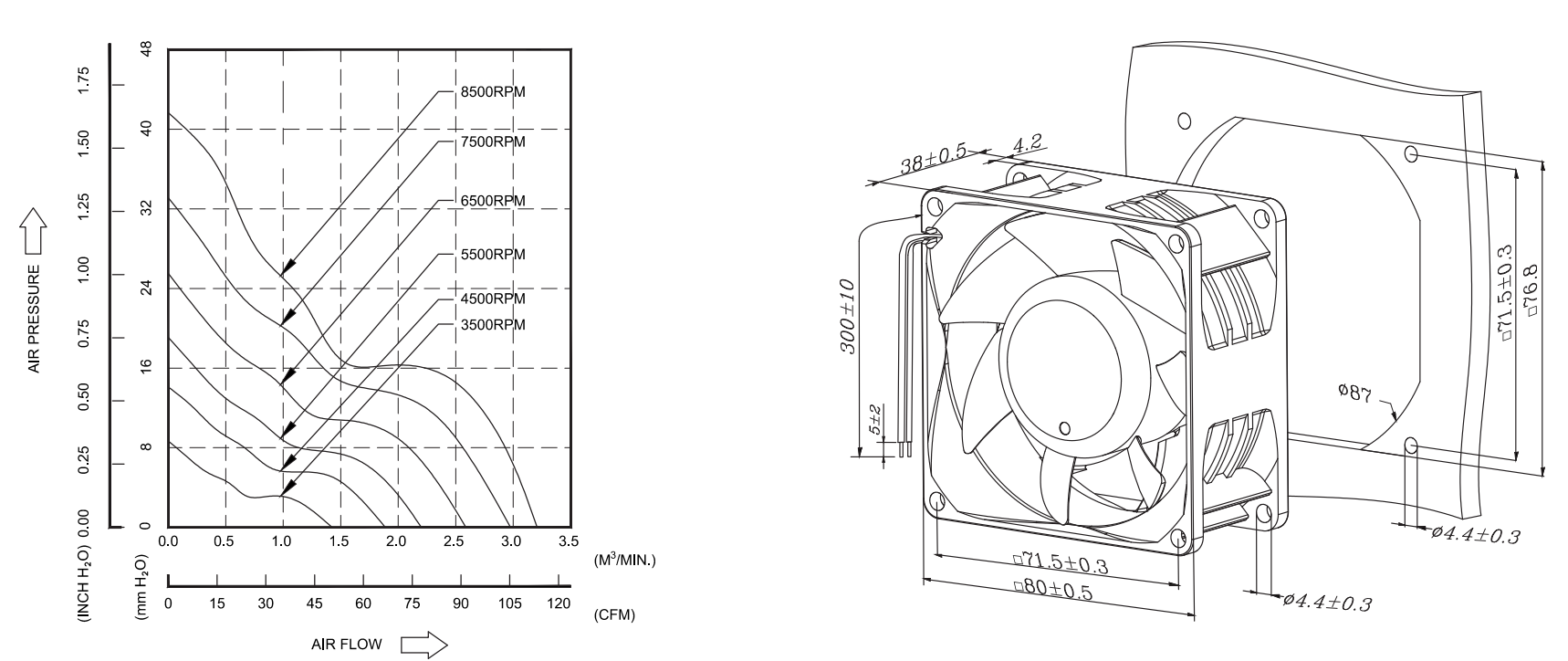

Overall Dimension: 80×80×38mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#26 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 160g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SB120838-E | B | 3500 | 12 | 0.15 | 1.8 | 45.5 | 77.2 | 7.31 | 0.29 | 38.6 |
SB120838-L | B | 4500 | 12 | 0.28 | 3.36 | 58.2 | 98.8 | 11.4 | 0.45 | 46.5 |
SB120838-M | B | 5500 | 12 | 0.5 | 6 | 71.9 | 122.1 | 16.4 | 0.64 | 50 |
SB120838-H | B | 6500 | 12 | 0.81 | 9.72 | 85.1 | 144.6 | 21.9 | 0.86 | 53.6 |
SB120838-U | B | 7500 | 12 | 1.25 | 15 | 99.7 | 169.2 | 28.9 | 1.14 | 55.8 |
SB120838-S | B | 8500 | 12 | 1.8 | 21.6 | 113.3 | 192.4 | 37.3 | 1.47 | 57.9 |
SB240838-E | B | 3500 | 24 | 0.07 | 1.68 | 45.5 | 77.2 | 7.31 | 0.29 | 38.6 |
SB240838-L | B | 4500 | 24 | 0.15 | 3.6 | 58.2 | 98.8 | 11.4 | 0.45 | 46.5 |
SB240838-M | B | 5500 | 24 | 0.27 | 6.48 | 71.9 | 122.1 | 16.4 | 0.64 | 50 |
SB240838-H | B | 6500 | 24 | 0.45 | 10.8 | 85.1 | 144.6 | 21.9 | 0.86 | 53.6 |
SB240838-U | B | 7500 | 24 | 0.68 | 16.3 | 99.7 | 169.2 | 28.9 | 1.14 | 55.8 |
SB240838-S | B | 8500 | 24 | 0.99 | 23.8 | 113.3 | 192.4 | 37.3 | 1.47 | 57.9 |
SB480838-E | B | 3500 | 48 | 0.06 | 2.88 | 45.5 | 77.2 | 7.31 | 0.29 | 38.6 |
SB480838-L | B | 4500 | 48 | 0.08 | 3.84 | 58.2 | 98.8 | 11.4 | 0.45 | 46.5 |
SB480838-M | B | 5500 | 48 | 0.14 | 6.72 | 71.9 | 122.1 | 16.4 | 0.64 | 50 |
SB480838-H | B | 6500 | 48 | 0.23 | 11 | 85.1 | 144.6 | 21.9 | 0.86 | 53.6 |
SB480838-U | B | 7500 | 48 | 0.34 | 16.3 | 99.7 | 169.2 | 28.9 | 1.14 | 55.8 |
SB480838-S | B | 8500 | 48 | 0.45 | 21.6 | 113.3 | 192.4 | 37.3 | 1.47 | 57.9 |
