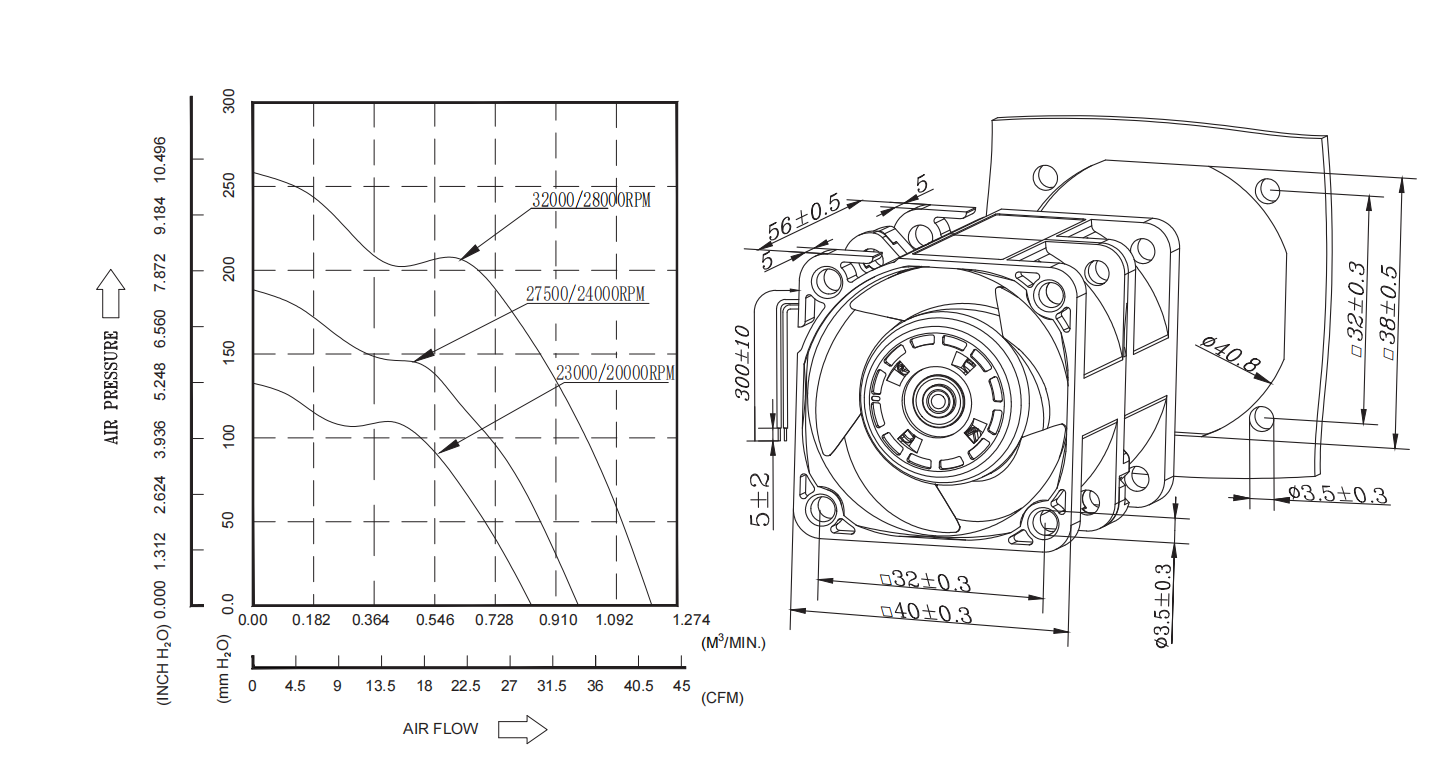

Overall Dimension: 40×40×56mm
Material: Impeller & Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1061 AWG#28 or Equivalent
Impeller: 5 Blades Of Air Intake/4 Blades Of Air Outlet
Rotational Direction: Ccw View From Inlet Fan Blade
Mass: 98g
| Product Number | Bearing Type | Rotational Speed | Rated Voltage | Rated Current | Rated Input Power | Maximum Airflow | Maximum Static Pressure | Noise | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
| SC120456-H | B | 23000/20000 | 12 | 1.44 | 17.3 | 29.2 | 49.7 | 132.5 | 5.21 | 69.1 |
| SC120456-U | B | 27500/24000 | 12 | 2.88 | 34.6 | 34.2 | 58 | 188.1 | 7.4 | 72.1 |
| SC120456-S | B | 32000/28000 | 12 | 3.2 | 38.4 | 41.9 | 71.2 | 257.9 | 10.2 | 76 |
