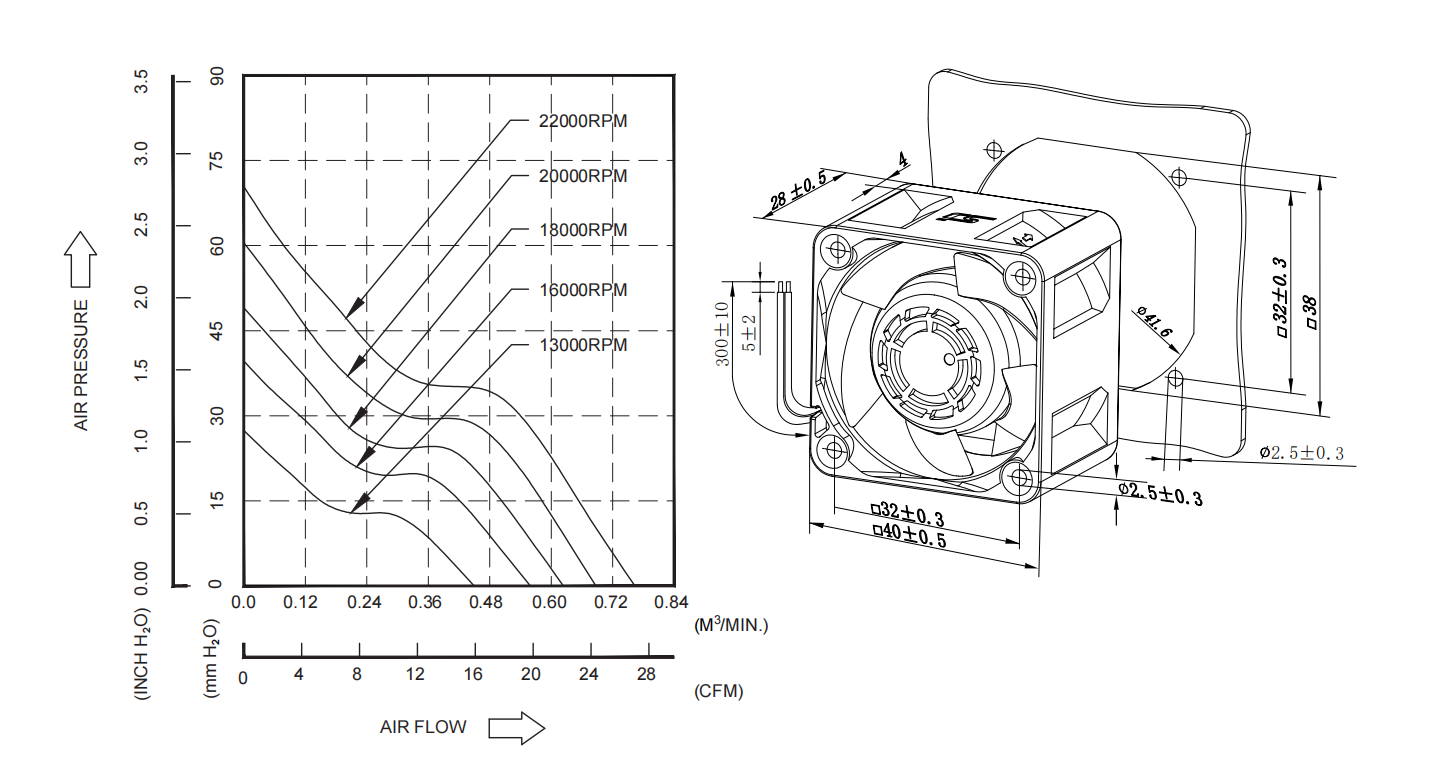

Overall Dimension: 40×40×28mm
Material: Impeller&Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1061 AWG#26 or Equivalent
Impeller: 5 Blades
Rotational Direction CCW View From Impeller Side
Mass: 47g
| Product Number | Bearing Type | Rotational Speed | Rated Voltage | Rated Current | Rated Input Power | Maximum Airflow | Maximum Static Pressure | Noise | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
| SJ120428-L | B | 13000 | 12 | 0.22 | 2.64 | 15.9 | 27 | 27.4 | 1.08 | 48.8 |
| SJ120428-M | B | 16000 | 12 | 0.35 | 4.2 | 19.8 | 33.6 | 39.6 | 1.56 | 54.2 |
| SJ120428-H | B | 18000 | 12 | 0.45 | 5.4 | 22.1 | 37.5 | 49.1 | 1.93 | 56.4 |
| SJ120428-U | B | 20000 | 12 | 0.56 | 6.72 | 24.3 | 41.3 | 60.5 | 2.38 | 58.3 |
| SJ120428-S | B | 22000 | 12 | 0.7 | 8.4 | 27 | 45.8 | 70.4 | 2.77 | 59.4 |
