Material: Stainless steel base, lock cylinder, lock body; carbon steel pin
Surface Treatment: Stainless steel natural color

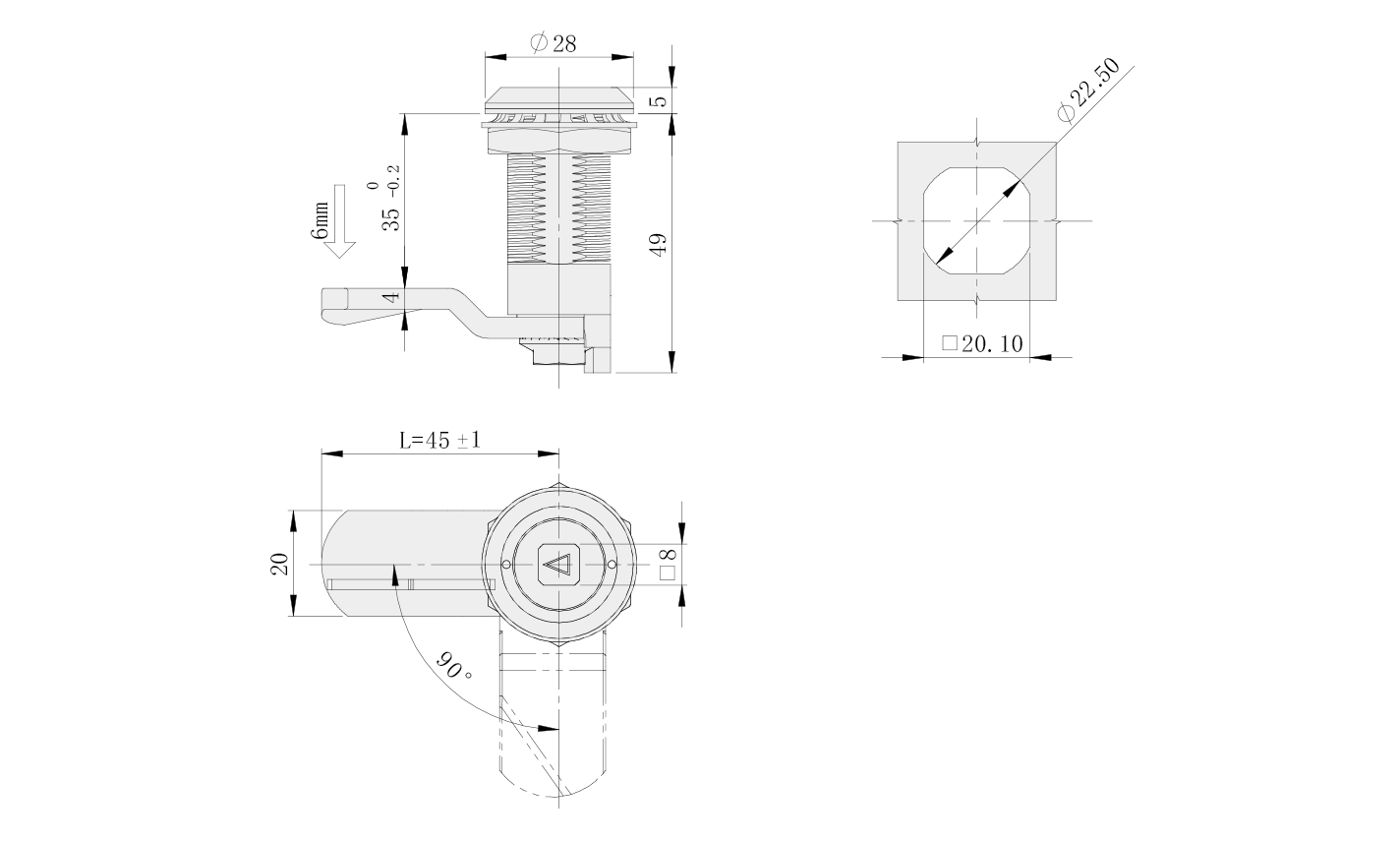

Structure Description: Rotate the lock cylinder 90° to achieve opening or locking; equipped with a locking function
Note: Optional K15-1 series keys
| Performance Parameters | |
| Specification | Details |
| Maximum Static Load Capacity | 590N |
| Maximum Input Torque | 11N·m |
| Recommended Tightening Torque for Fixing Nut | 30N·m |
