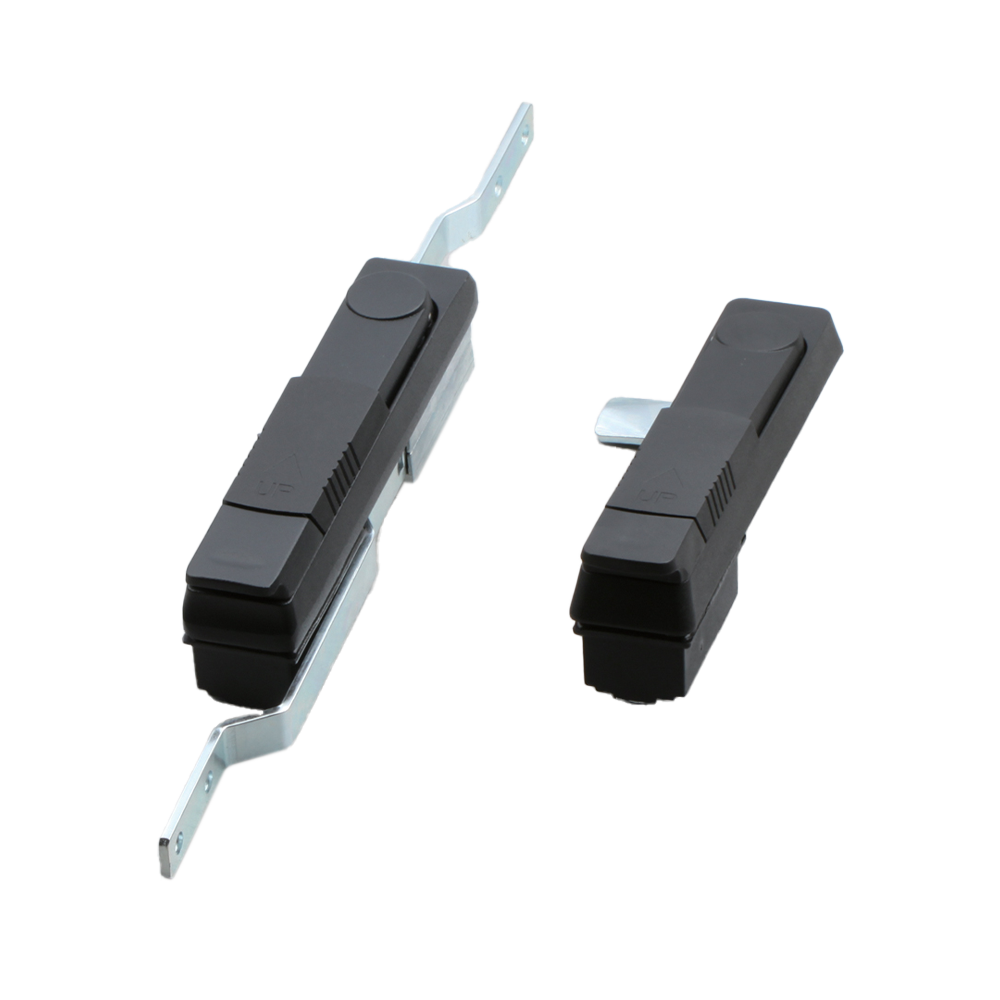

Material: Zinc alloy base, handle, lock head components; carbon steel shaft, transmission bar
Surface Treatment: Base, handle: black spray (matte finish); steel pin: galvanized (white)
Structure Description: Rotate the handle to open and close the door panel
Note: Default configuration: TC01 lock head, K140 keys
| Performance Parameters | |
| Specification | Details |
| Tensile Force Capacity of Handle | ≤520N |
| Torque Capacity of Handle | ≤27N·m |
| Maximum Static Load (Steel Ball Type) | 270N |
