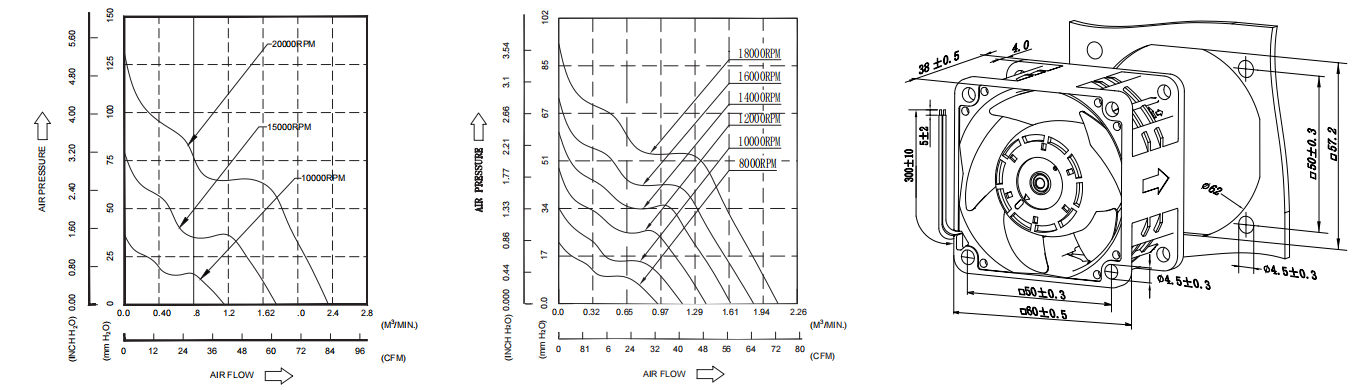

Overall Dimension: 60×60×38mm
Material: Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 5 Blades
Rotational direction: CCW view from impeller side
Mass: 150g
three-phase
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SB120638-S | B | 20000 | 12 | 3 | 36 | 83.3 | 141.4 | 131.3 | 5.17 | 62.1 |
SB120638-U | B | 15000 | 12 | 1.3 | 15.6 | 62.1 | 105.4 | 79.6 | 3.13 | 58 |
SB120638-H | B | 10000 | 12 | 0.48 | 5.76 | 40.9 | 69.4 | 36.7 | 1.44 | 48.4 |
single-phase
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SB120638-L | B | 8000 | 12 | 0.3 | 3.6 | 32.8 | 55.8 | 21.8 | 0.86 | 47 |
SB120638-M | B | 10000 | 12 | 0.5 | 6 | 41 | 69.7 | 34.1 | 1.34 | 52 |
SB120638-H | B | 12000 | 12 | 0.85 | 10.2 | 48.9 | 83.1 | 48.4 | 1.9 | 56 |
SB120638-U | B | 14000 | 12 | 1.2 | 14.4 | 57 | 96.9 | 61.3 | 2.41 | 59 |
SB120638-S | B | 16000 | 12 | 1.8 | 21.6 | 64.7 | 109.9 | 73.3 | 2.88 | 62 |
SB240638-L | B | 8000 | 24 | 0.15 | 3.6 | 32.8 | 55.8 | 21.8 | 0.86 | 47 |
SB240638-M | B | 10000 | 24 | 0.25 | 6 | 41 | 69.7 | 34.1 | 1.34 | 52 |
SB240638-H | B | 12000 | 24 | 0.4 | 9.6 | 48.9 | 83.1 | 48.4 | 1.9 | 56 |
SB240638-U | B | 14000 | 24 | 0.6 | 14.4 | 57 | 96.9 | 61.3 | 2.41 | 59 |
SB240638-S | B | 16000 | 24 | 0.85 | 20.4 | 64.7 | 109.9 | 73.3 | 2.88 | 62 |
SB240638-F | B | 18000 | 24 | 1.2 | 28.8 | 72.8 | 123.6 | 92.7 | 3.65 | 64.5 |
