current Home > Product > DC Fans >SB4056

SB4056
Shengjiu Group

SB4056

Product description

  • Overall Dimension: 40×40×56mm

  • Material: Impeller & Frame Plastic (Fire Rating UL94V-0/ADC12)

  • Lead Wires: UL 1061 AWG#28 or Equivalent

  • Impeller: 5 Blades / 4 Blades

  • Rotational Direction: CCW View From Inlet Fan Blade

  • Mass: 98g

Ask for priceAsk for price DownloadDOWNLOAD
Technical Parameters

Product
Number

Bearing
Type

Rotational
Speed

Rated
Voltage

Rated
Current

Rated Input
Power

Maximum
Airflow

Maximum
Static Pressure

Noise

Product Number

B.S.R

RPM

VDC

Amp

Watt

CFM

m³/H

mm H₂O

in H₂O

dB-A

SB120456-H

B

26000

12

2.33

28

35.7

60.6

116.1

4.57

71.6

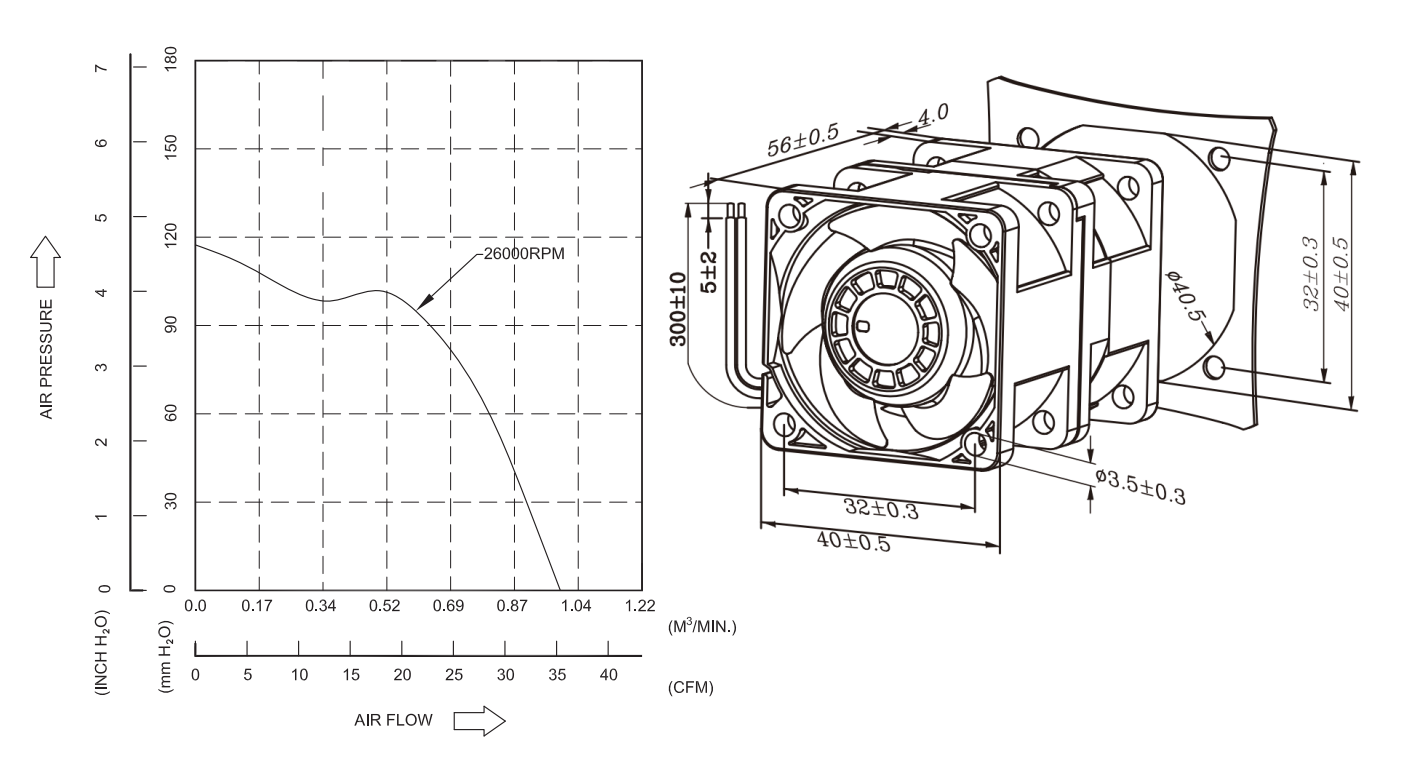

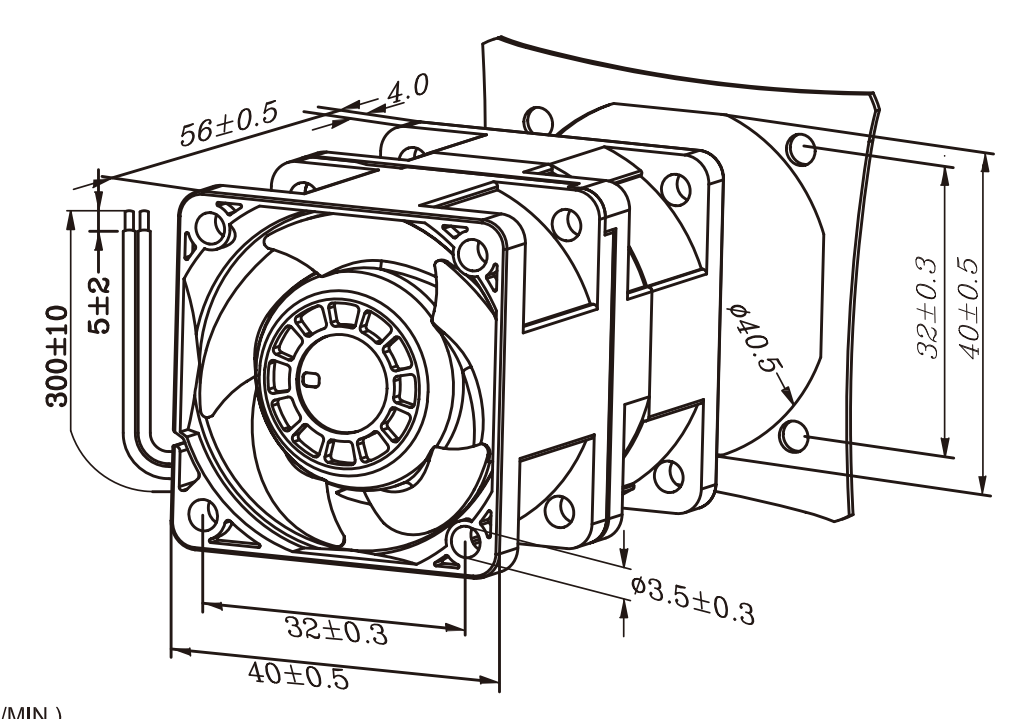

Drawing information


Application solution
    No Data
