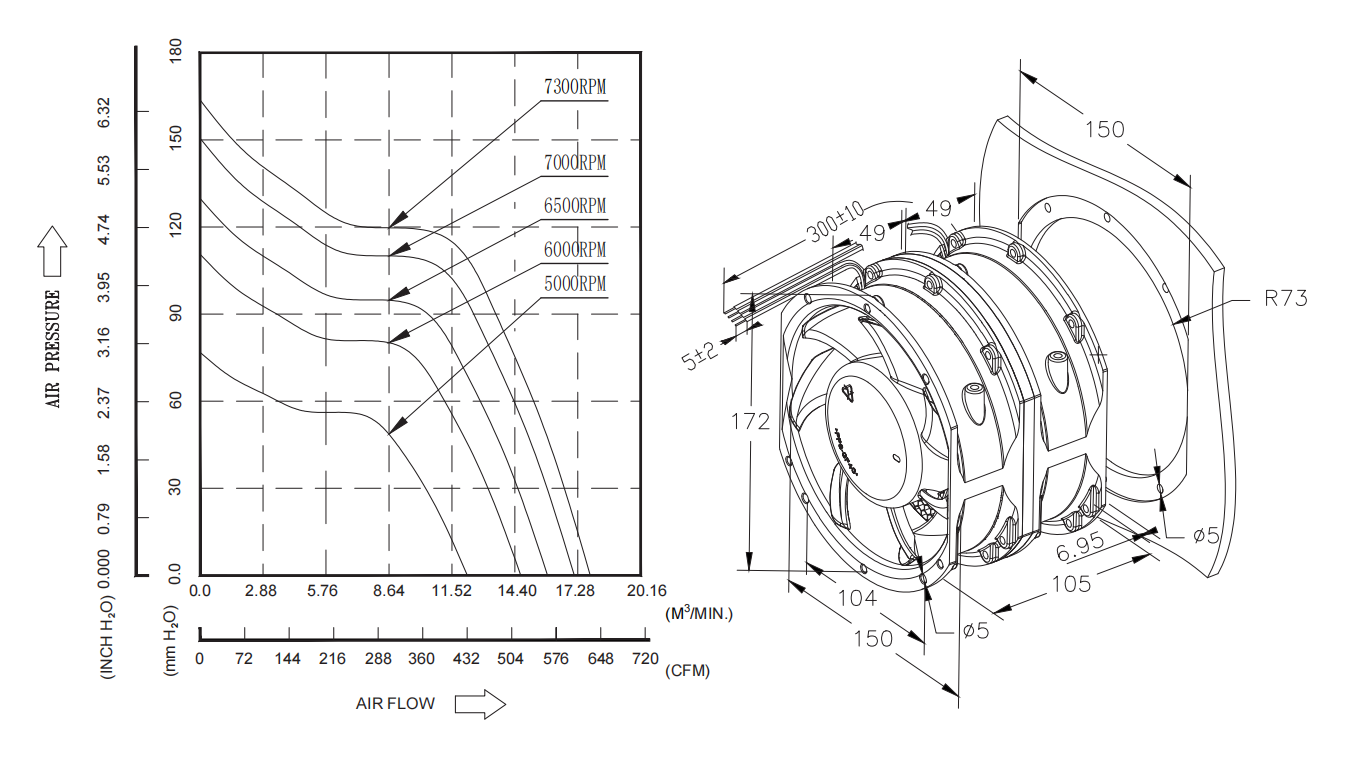

Overall Dimension: 172×150×102mm
Material: Impeller Plastic (Fire Rating UL94V-0), Frame Aluminium
Lead Wires: UL 1430 AWG#22 or Equivalent
Impeller: 7 Blades
Rotational direction: CCW view from impeller side
Mass: 1800g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SA4817A0-M | B | 5000 | 48 | 2.5 | 120 | 415.3 | 705.2 | 70.7 | 2.78 | 76 |
SA4817A0-H | B | 6000 | 48 | 4 | 192 | 498.4 | 846.3 | 101.9 | 4.01 | 79.9 |
SA4817A0-U | B | 6500 | 48 | 5 | 240 | 540 | 916.9 | 119.5 | 4.7 | 81.6 |
SA4817A0-S | B | 7000 | 48 | 6.3 | 302.4 | 581.5 | 987.4 | 138.6 | 5.46 | 83.2 |
SA4817A0-G | B | 7300 | 48 | 8 | 384 | 631.3 | 1072 | 163.4 | 6.43 | 85 |
