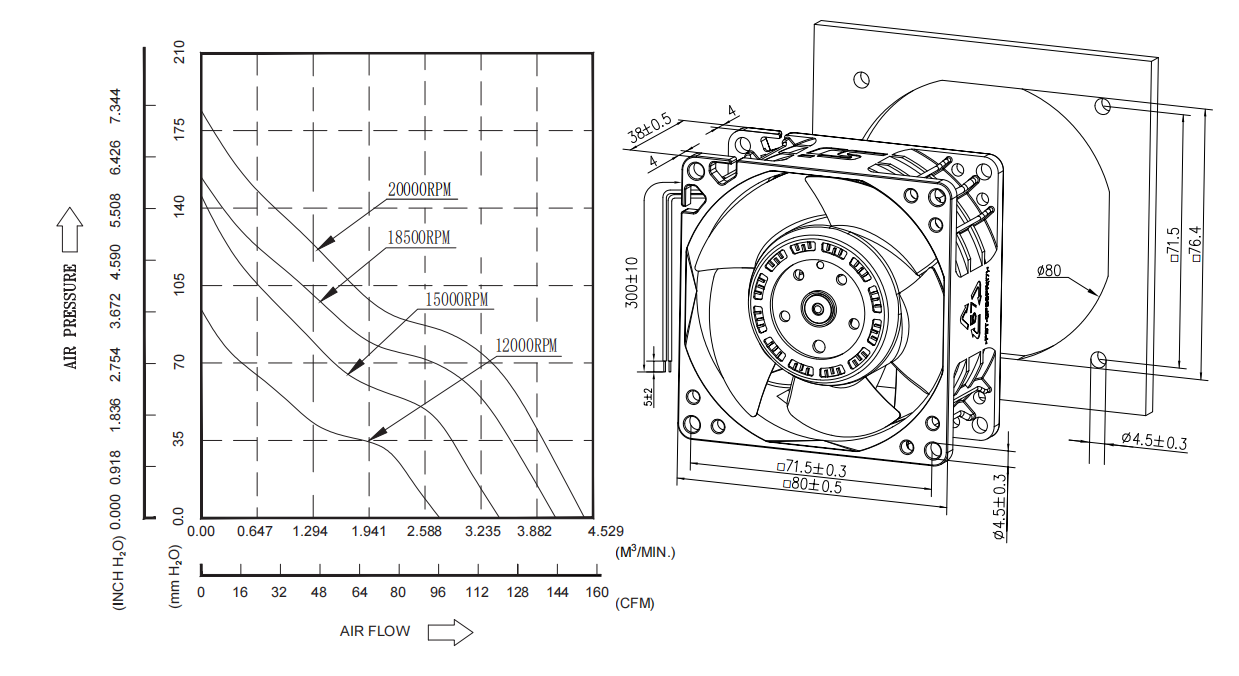

Overall Dimension: 80×80×38mm
Material: Impeller&Frame Plastic (Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#22 or Equivalent
Impeller: 5 Blades
Rotational direction: CCW view from impeller side
Mass: 250g
Product | Bearing | Rotational | Rated | Rated | Rated Input | Maximum | Maximum | Noise | ||
Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mm H₂O | in H₂O | dB-A |
SC120838-H | B | 12000 | 12 | 1.3 | 15.6 | 96.4 | 163.7 | 94 | 3.7 | 63.9 |
SC120838-U | B | 15000 | 12 | 2.3 | 27.6 | 120.4 | 204.4 | 145.4 | 5.72 | 68.7 |
SC120838-S | B | 18500 | 12 | 4 | 48 | 138.6 | 235.3 | 159.4 | 6.28 | 73.3 |
SC120838-F | B | 20000 | 12 | 4.8 | 57.6 | 154.9 | 263 | 183.8 | 7.24 | 75 |
SC480838-S | B | 18500 | 48 | 1 | 48 | 138.7 | 235.4 | 159.4 | 6.28 | 73.3 |
