MS816-1-1F-Y

Product description

Material: Zinc alloy base, lock cylinder; carbon steel pin

Surface Treatment: Mirror polishing (base, lock cylinder); electroplated tri-valent zinc (carbon steel pin)

Structure Description: Rotate the lock cylinder 210° and the steel pin 90° to achieve opening or locking; equipped with a locking function

Ask for price

DOWNLOAD

Technical Parameters
Drawing information
Application solution

Technical Parameters

Performance Parameters
Specification	Details
Load Torque of Locking Bearing	≤5N·m
Load Capacity of Steel Ball	≤150N

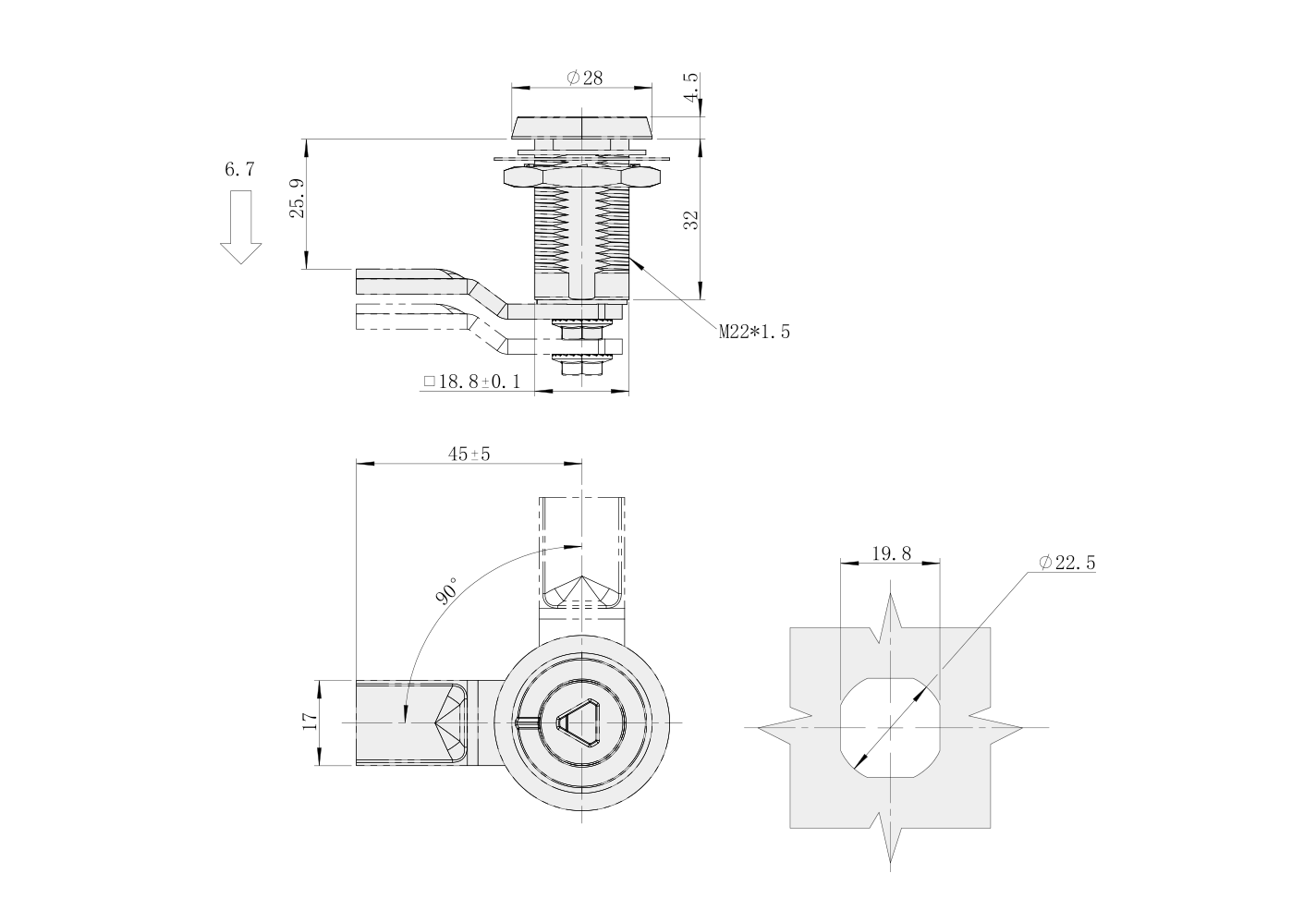

Drawing information

Application solution

No Data
