Material: Zinc alloy base, cover plate; carbon steel pin
Surface Treatment: Polished chrome finish (base, cover plate); galvanized finish (carbon steel pin)

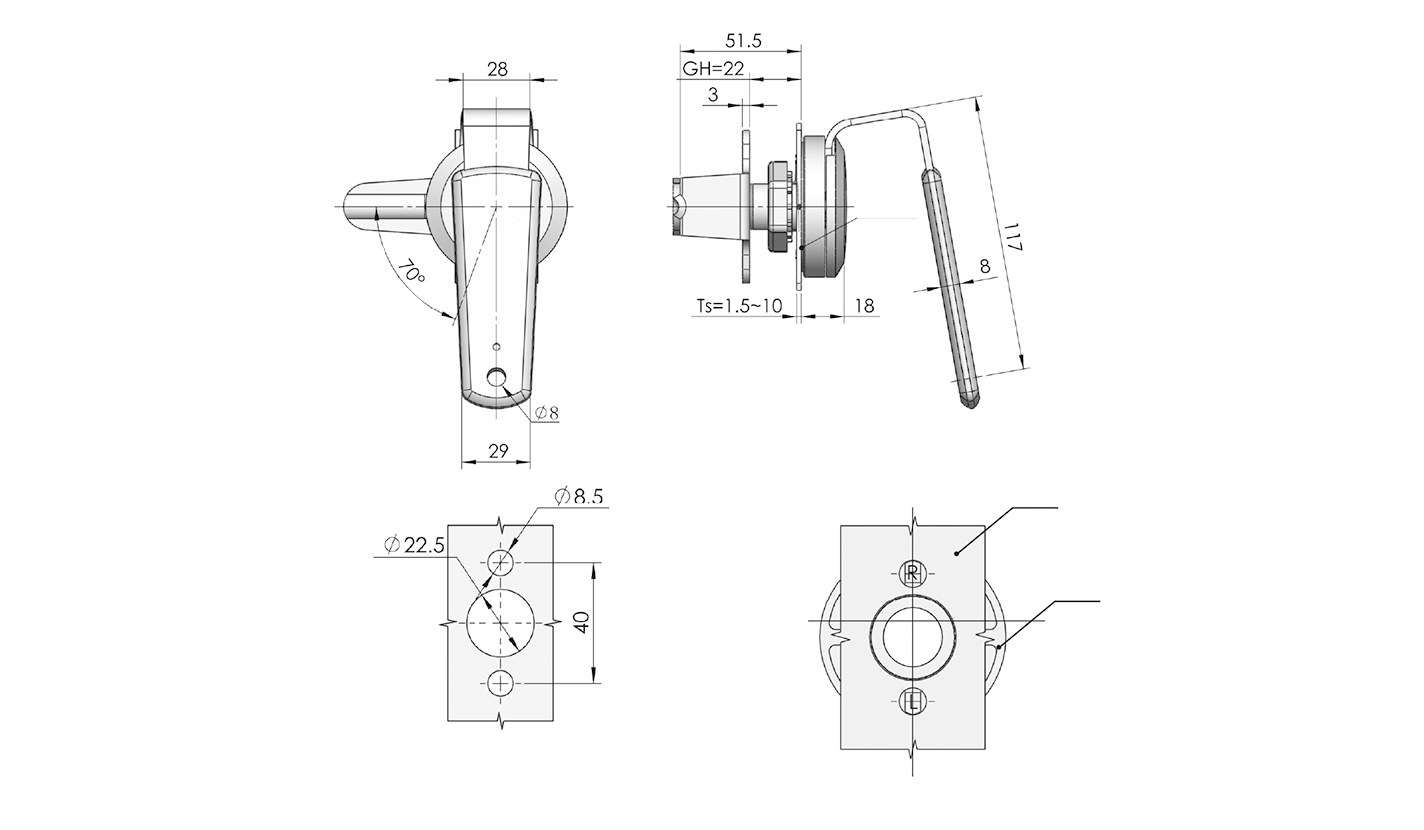

Structure Description: Rotate 70° to achieve opening or locking
Note: Refer to MS812-2 tooling pin for the pin specification
| Performance Parameters | |
| Specification | Details |
| Maximum Static Load Capacity | 110N |
| Maximum Input Torque | 11N·m |
| Recommended Tightening Torque for Fixing Nut | 20N·m |
