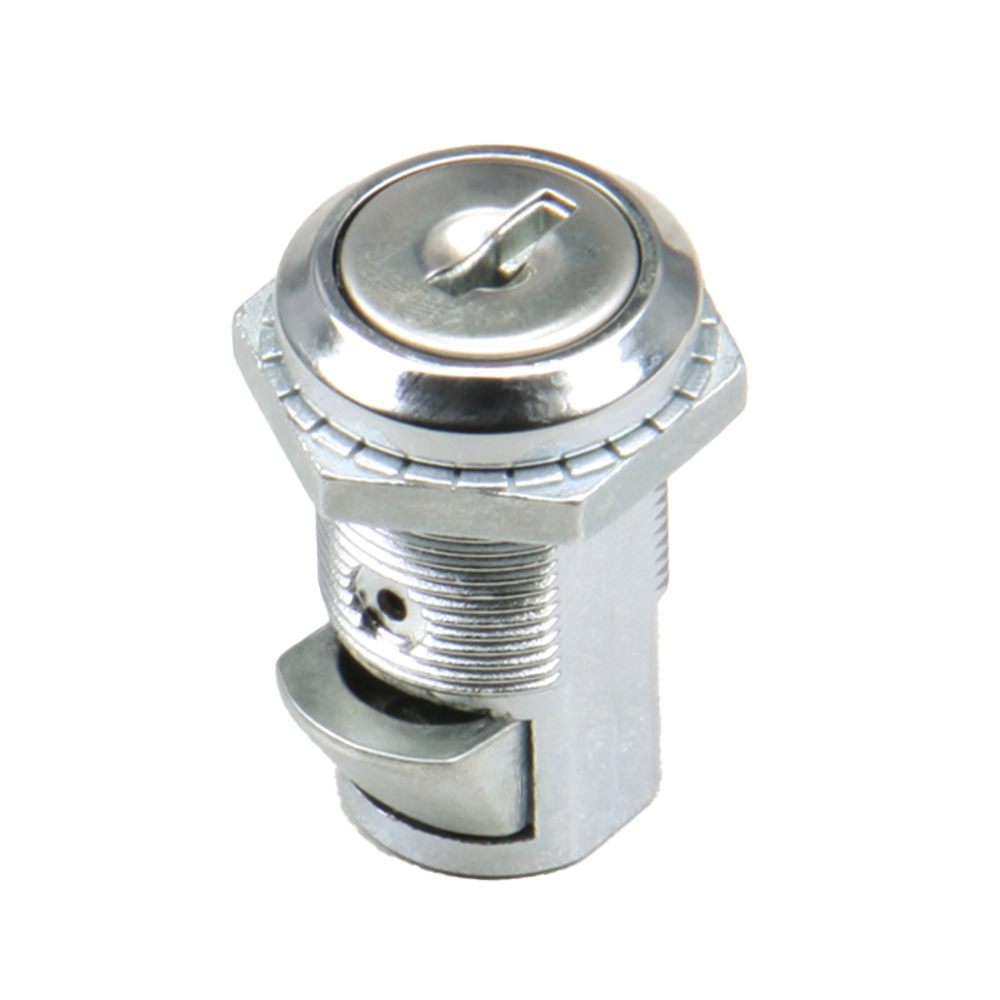

Material: Zinc alloy base, lock cylinder; carbon steel pin
Surface Treatment: Spray black (polished) finish (base); galvanized finish (carbon steel pin)

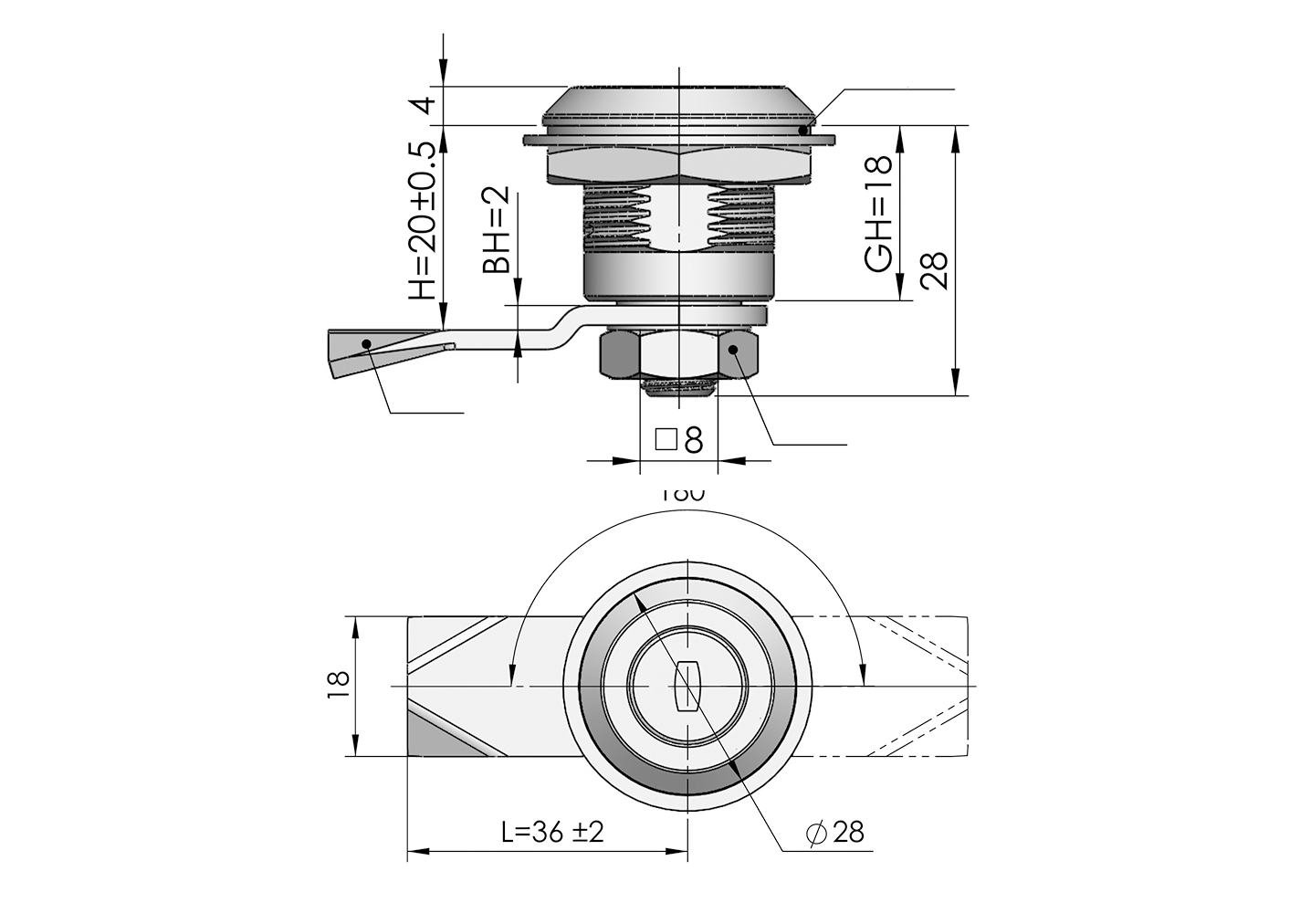

Structure Description: Rotate 180° to achieve opening or locking
Note: Default configuration: K040
| Performance Parameters | |
| Specification | Details |
| Maximum Static Load Capacity | 270N |
| Maximum Input Torque | 20N·m |
| Recommended Tightening Torque for Fixing Nut | 20N·m |
