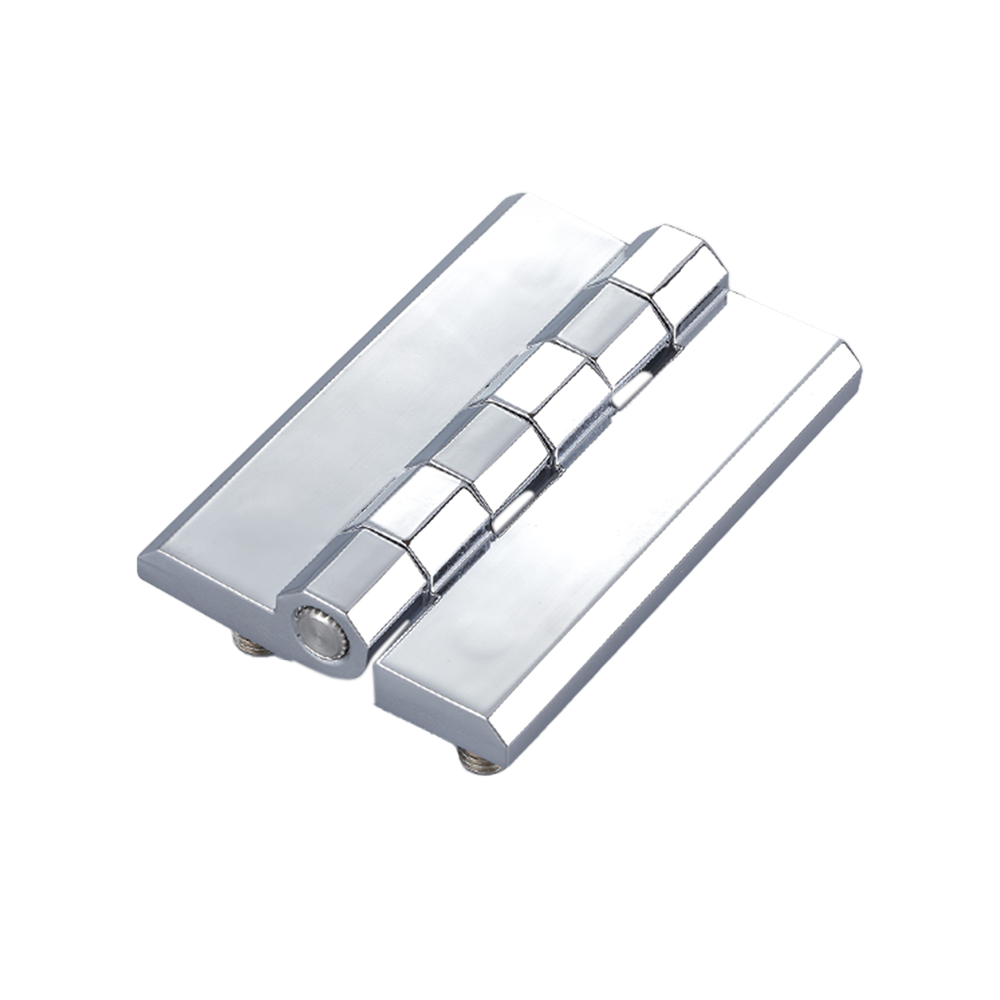

Material: Zinc alloy hinge, carbon steel pin
Surface Treatment: Mirror-polished hinge, galvanized pin

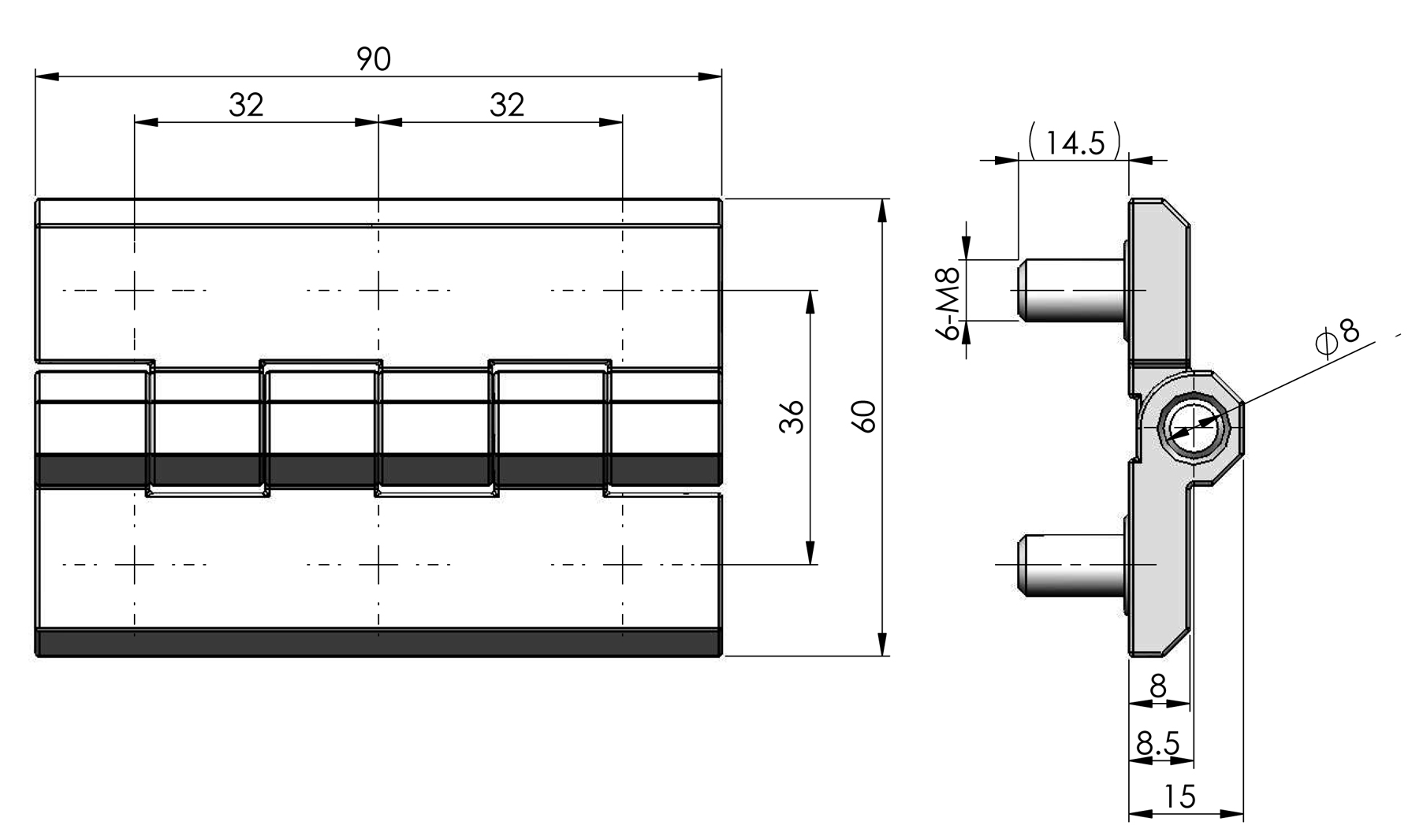

Structure Description: Maximum opening angle of 180°; Equipped with a new sealing gasket to enhance waterproof performance
| Performance Parameters | |
| Specification | Details |
| Maximum Static Load | 1120N |
| Radial Load | 1200N |
| Recommended Tightening Torque of Mounting Screw | 12N·m |
