CL109-1X

Product description

Material: Zinc alloy hinge + stainless steel rotating shaft, balancing structural strength, wear resistance and rust resistance

Surface Treatment: Multiple painted finishes (painted black, nano matte, painted black textured) are available, adapting to different equipment styles

Structure: Left hinge adapts to the corresponding door opening direction; supports 180° full opening angle; added sealing gasket provides waterproof function, suitable for humid or waterproof-required scenarios

Ask for price

DOWNLOAD

Technical Parameters

Performance Parameters
Maximum Static Load	Radial load 1400N, axial load 1400N

Sub-models & ERP Part Numbers
Painted Black	CL109Z2A002
Nano Matte	CL109Z2B005
Painted Black Textured	CL109Z2C002

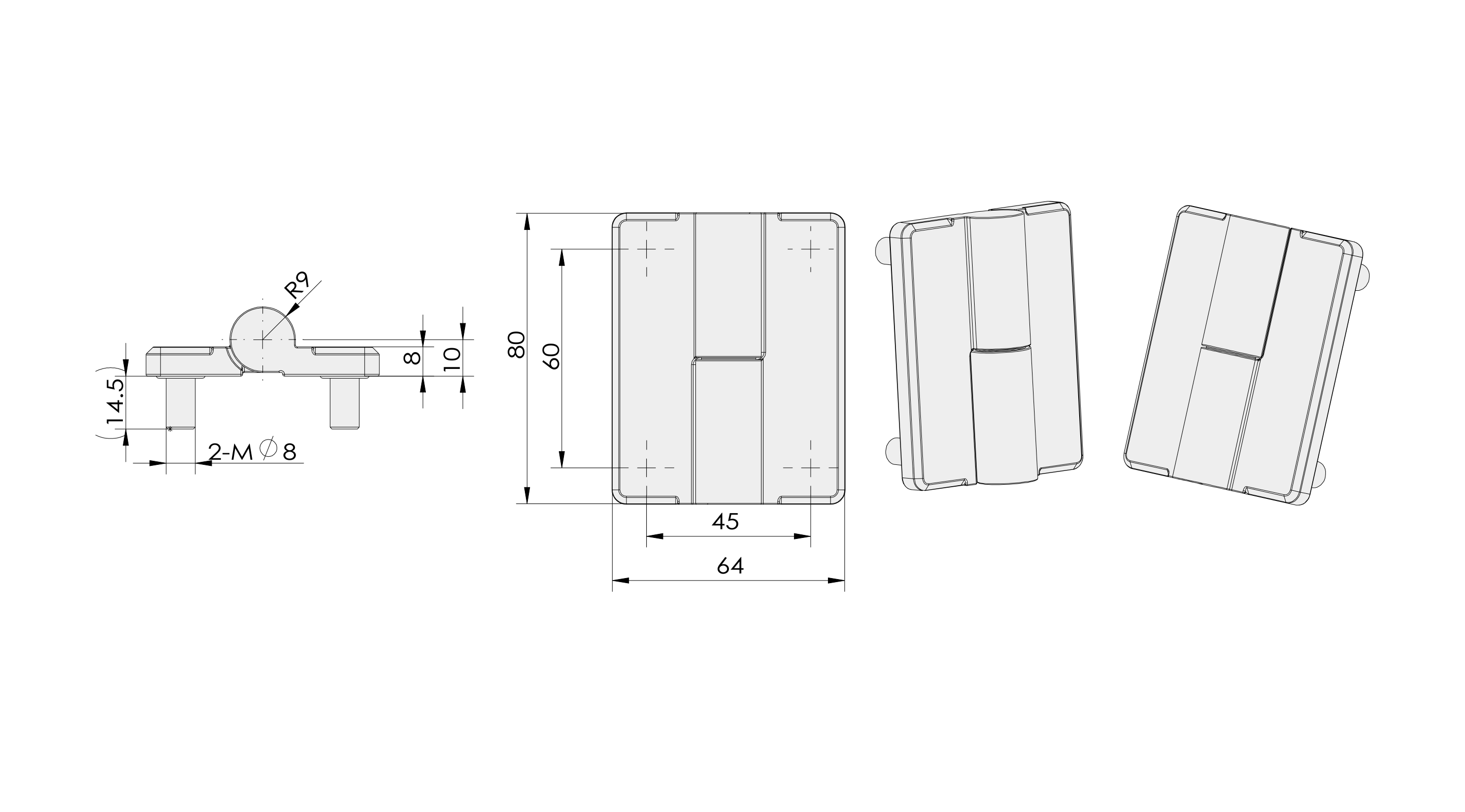

Drawing information

Application solution

No Data
