Material: Aluminum alloy base, cover plate, padlock device; Carbon steel bolt, pressing plate, rotating shaft
Surface Treatment: Base, handle, padlock device, cover plate: spray-painted (blue gray); Bolt, pressing plate: galvanized (white zinc)
Bolt Configuration: Default bolt material no. 2893250016, optional bolt S2C2000 (default bolt is S2C2500)
Technical Parameter | |
Handle Bearing Torque | ≤25N.m |
Product Model | Feature Dimension (A) | Feature Dimension (B) |
MS850-2 | 54 | 69 |
MS850-2A | 44 | 59 |

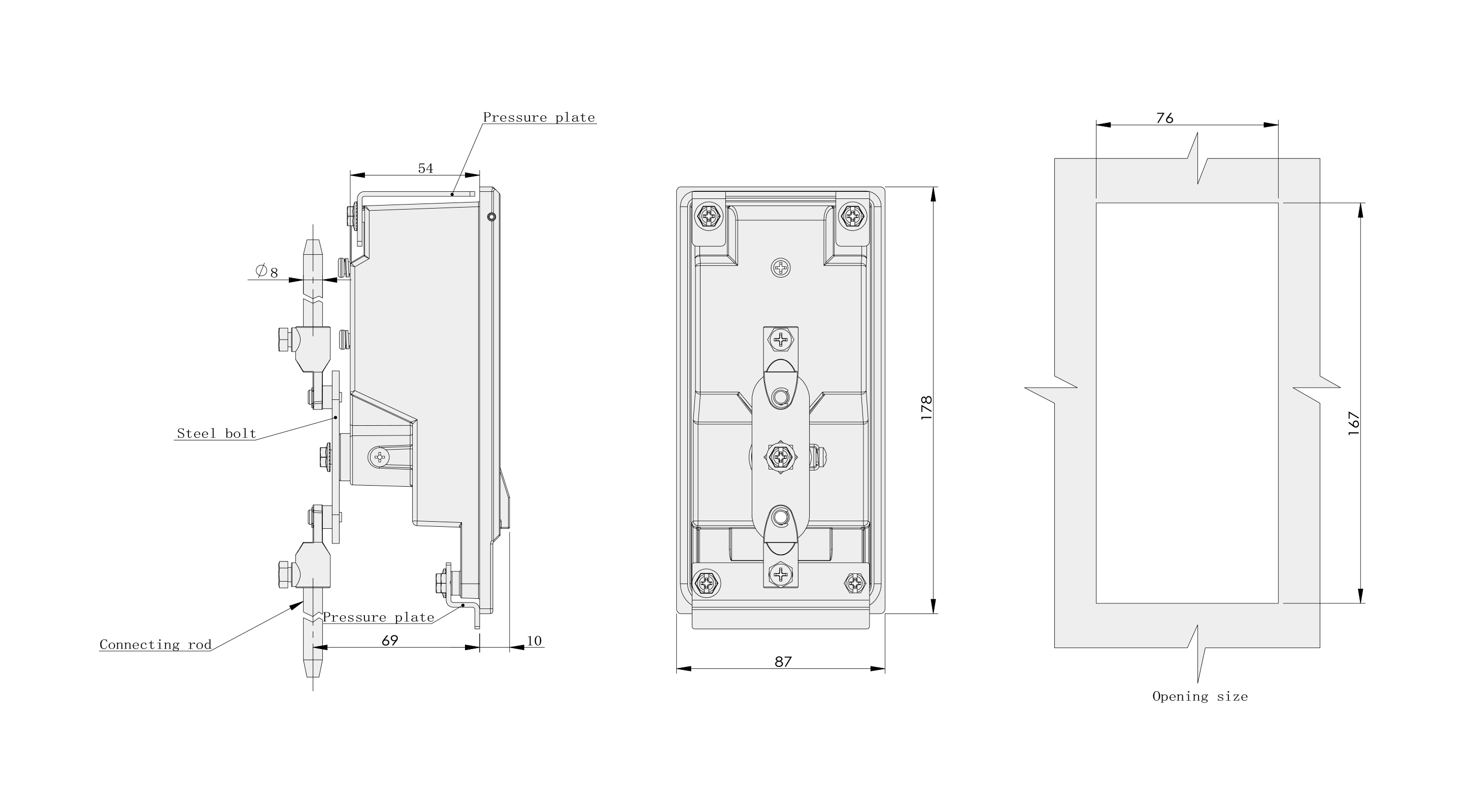

MS850-2

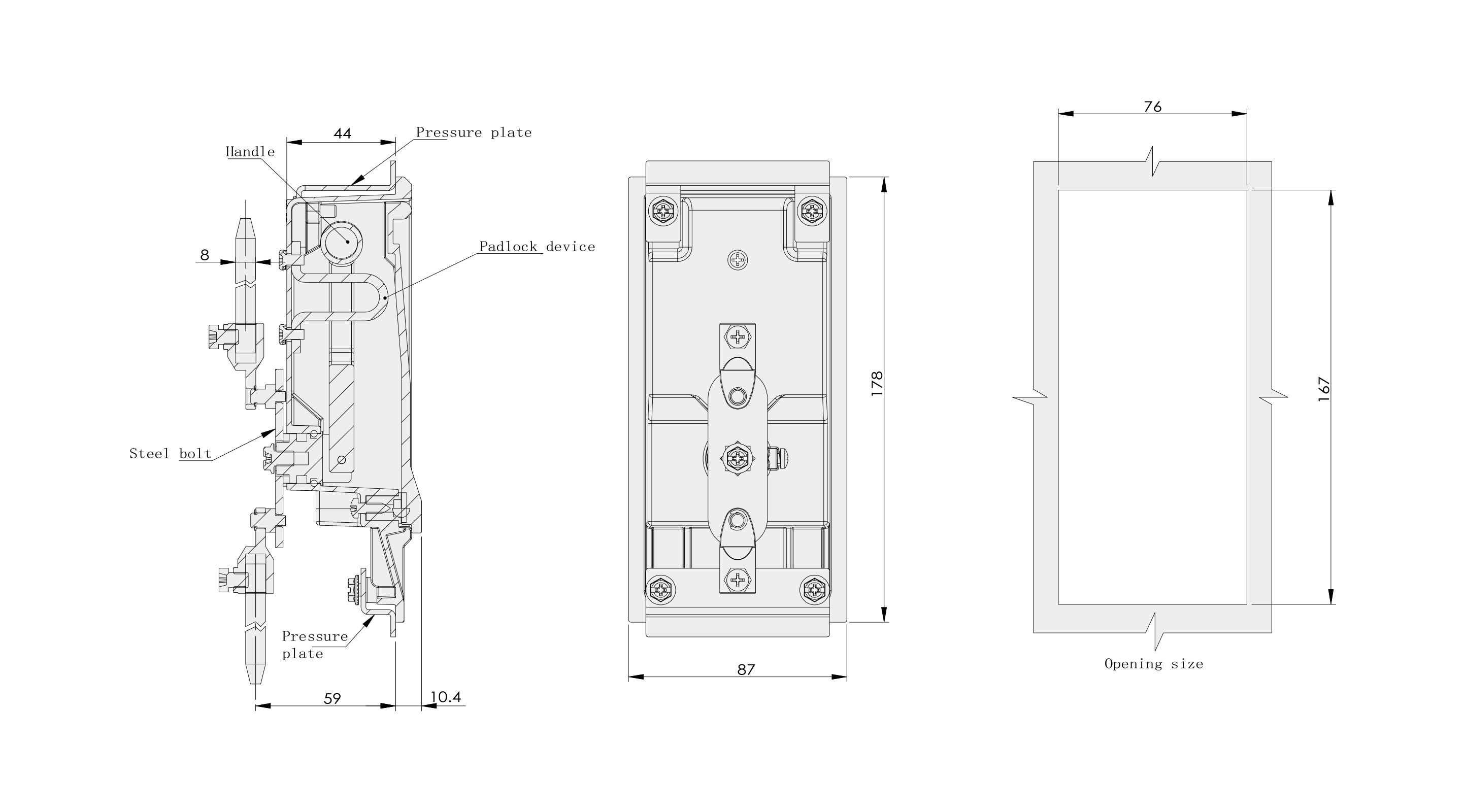

MS850-2A
